Files (1)
Based on 25% main infill across listed model files
Filament only at roughly $24/kg PETG / ASA
Uses 70 mm/s, 0.2 mm layers; verify supports in slicer
| STL file | Role | Source size | PETG / ASA 20% | PETG / ASA 25% | 100% solid | Recommendation |
|---|---|---|---|---|---|---|
| CPS_Spacer.stl | Primary model | 30.9 KB STL | 9g $0.22 | 10g $0.24 | 22g $0.52 | Ensure proper orientation for minimal supports |
Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

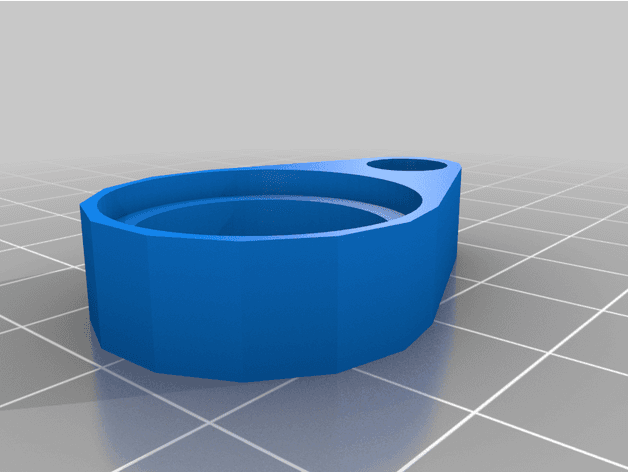

M54 front mounted CPS spacer
Need this part printed?
Tell us what you need and we'll help you get it 3D printed. Takes a minute — no account needed and no payment is collected.
Opens a quick request form. No order is placed and no payment is collected. Prefer email? Email us instead.
Description
Spacer to mount an M54 crankshaft position sensor (CPS) to the front timing cover on an M50/M52 engine. Created due to the m54 sensor being longer than the standard m52 version. This should result in a 0.8mm gap between the sensor and trigger wheel. This is to enable usage of MS43 harness and DME in different model BMWs.
Originally published on thingiverse.com by Murray Allen (ba114) · License: CC BY
Share whether this print actually fits a real car. Installed photos and material notes make the catalog more trustworthy.
