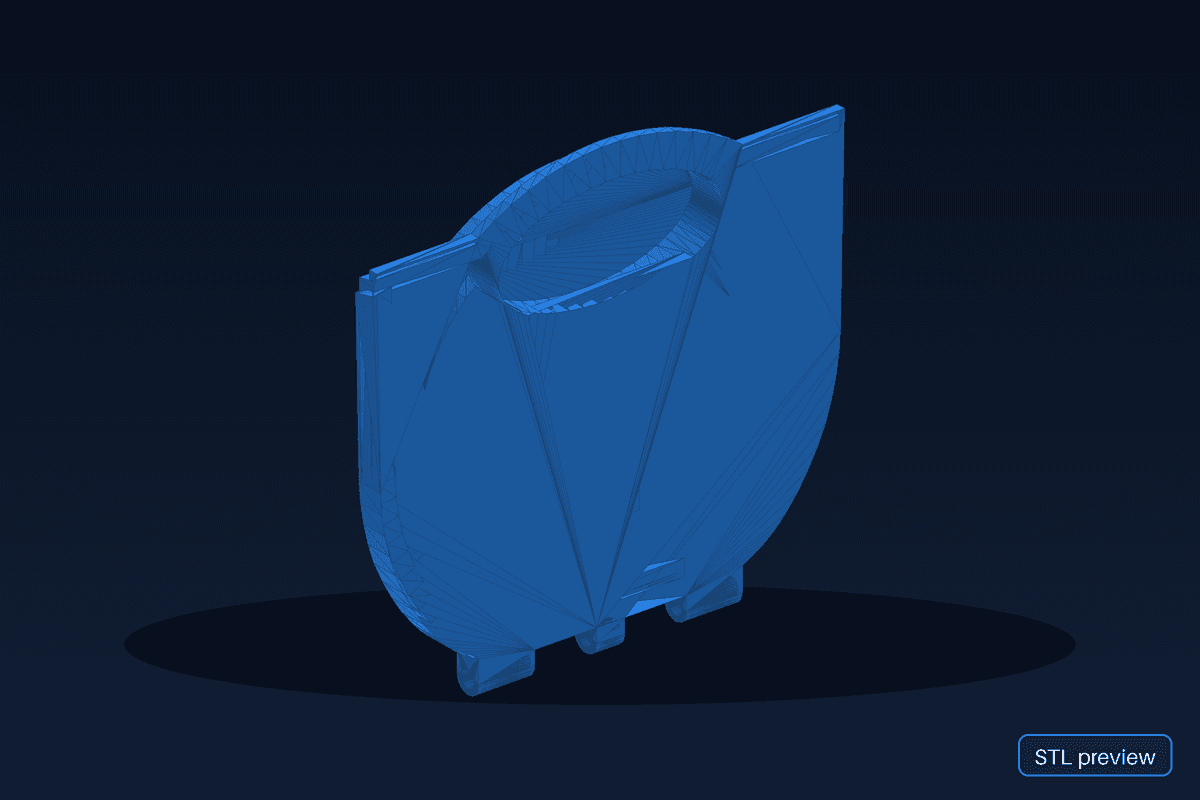

Mini Cooper SE Electric chargeport cover - image

Files (4)

MiniE_AC_Flap_V1_6_ChargePort_Cover.STL

STL

146.2 KB

MiniE_ChargeFlap_holder_V1_1.STL

STL

26.4 KB

MiniE_DC_Flap_V1_5_ChargePort_Cover.STL

STL

121.0 KB

MiniE_Housing_V1_5_ChargePort_Cover.STL

STL

222.5 KB

Print guidance estimate

Slicer data required

Print cost & setup estimate

Setup guidance plus saved or slicer-confirmed filament, cost, and time. Model file size is never treated as printable volume.

4 model files

Typical selected file

Slice required

Choose the needed variant and slice it; source file size is not printable volume.

Material cost

Slice required

Use the slicer's filament total; STL/3MF byte size is not a cost input.

Print time

Slice required

Slice with the recommended material, infill, orientation, and supports.

STL file	Role	Source size	PETG / ASA 20%	PETG / ASA 25%	100% solid	Recommendation
MiniE_AC_Flap_V1_6_ChargePort_Cover.STL	Cover / cap	146.2 KB STL	Slice file	Slice file	Slice file	Use PETG / ASA; check sealing faces and verify in slicer.
MiniE_ChargeFlap_holder_V1_1.STL	Mount / bracket	26.4 KB STL	Slice file	Slice file	Slice file	Use a layer thickness of 0.2mm for a smooth finish
MiniE_DC_Flap_V1_5_ChargePort_Cover.STL	Cover / cap	121.0 KB STL	Slice file	Slice file	Slice file	Use PETG / ASA; check sealing faces and verify in slicer.
MiniE_Housing_V1_5_ChargePort_Cover.STL	Cover / cap	222.5 KB STL	Slice file	Slice file	Slice file	Use PETG / ASA; check sealing faces and verify in slicer.

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Mini Cooper SE Electric chargeport cover

0 downloads29 views0 quality score

Print this part

Check the available model and saved setup details before opening your slicer.

Files

4 hosted model files

STL

Material

PETG or ASA for durability in outdoor conditions

Print time

Slice to calculate

Filament

Slice to calculate

Supports

verify in slicer

Infill

20-30% infill for a balance between strength and weight

Difficulty

Not rated — inspect geometry

Vehicle heat

Cabin/interior use; avoid high-heat zones

Open the STL, 3MF, or OBJ model in your slicer before printing. Confirm orientation, supports, print time, filament use, and printer compatibility. Test-fit before installing it in a vehicle.

License & use

CC BY 4.0

Commercial use allowed

Attribution required

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

This is a set to replace the rubber caps that cover the type 2 CCS mennekes charge port connectors. The stock rubber caps are tethered by a rubber string. With this set the rubber caps are replaced by a housing that is pushed in around the chargeport connector. There are 2 lids. 1 top lid to open the AC part and the bottom lid protects the DC part of the CCS connector. Both hinges use a M3 bolt. you can either drill and tap or just dril and use a bolt and (lock)nut I printed it on a Anet A6 budget printer, with 0.2mm layer thickness and 20% infill using black PETG.
