2000-2006 Honda Insight 1g Upper Radiator Bracket and Isolator

0 downloads63 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

Source link only

No hosted model files

Material start

PETG or ABS, with Nylon or Polycarbonate as alternatives for increased durability

Saved part guidance

Strength start

high infill for the bracket, flexible infill for the TPU bushing

Saved part guidance

Orientation / supports

verify in slicer

Exact totals

Slice for grams + time

Model geometry and final settings determine both

Vehicle exposure

Engine-bay exposure — use rated material or OEM

Download the model at its source, then confirm the format is supported by your slicer. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

Download at source

License & use

CC BY-NC

Link-only

Attribution required

Files stay with the original publisher; this catalog entry does not grant hosting or resale rights. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

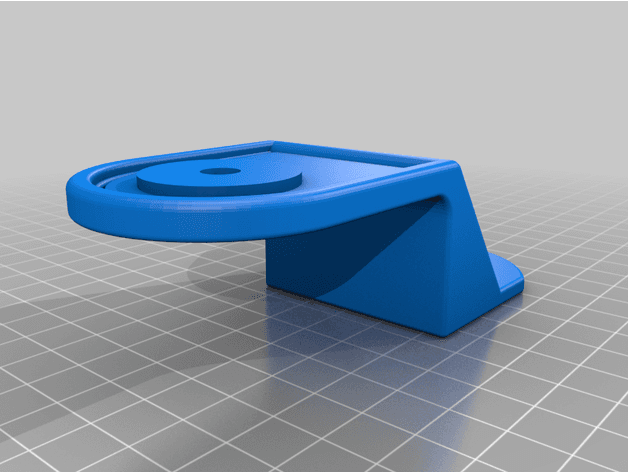

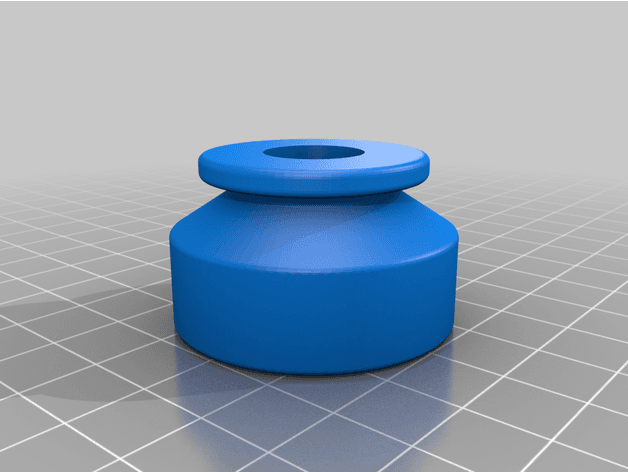

Replacement for the no longer available 1st gen Honda Insight upper radiator mount. The original was stamped aluminum with a rubber isolator bushing. Print the bracket at high infill in at least PETG/ABS. Nylon or polycarbonate would probably be better. Print the bushing in TPU. These parts will be tested and upgraded and issues posted here. Replaces Honda part numbers 74171-S3Y-000 (upper bracket with isolator) or 74173-SJ4-000 (isolator only).
