2008 Outback rear view mirror harness and platform preview

Files (4)

adapter_platform.stl
STL
101.6 KB
ball_socket_adapter.stl
STL
1.6 MB
locking_ring.stl
STL
2.0 MB
mirror_grapple.stl
STL
896.0 KB

Reference shelf

Recommended filament for this print

Product references matched to the published material guidance. Confirm diameter, heat resistance, colour, and printer compatibility.

Referenced itemWhat to verifyPrice & availability
PETG filamentAmazon · Affiliate linkAmazon product page for 1.75 mm PETG; confirm colour, spool size, print temperature, seller, and delivery region.Check price at Amazon
ASA filamentAmazon · Affiliate linkAmazon product page for 1.75 mm ASA; use an enclosure and suitable ventilation, and confirm seller and regional availability.Check price at Amazon

Affiliate disclosure: if you buy through an eligible link, 3DPrintedCarPart may earn a commission at no extra cost to you. As an Amazon Associate I earn from qualifying purchases. Confirm product specifications, compatibility, seller terms, and vehicle safety before ordering or using anything. Amazon may redirect you to a nearby supported store; otherwise the original Amazon.com page remains available.

Unsure which one fits? Read the automotive filament guide.

Mirror Covers

2008 Outback rear view mirror harness and platform

0 downloads88 views0 quality score
0

License & use

CC BY
Commercial use allowed
Attribution required

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

3DPrintedCarPart logo
Verified

Description

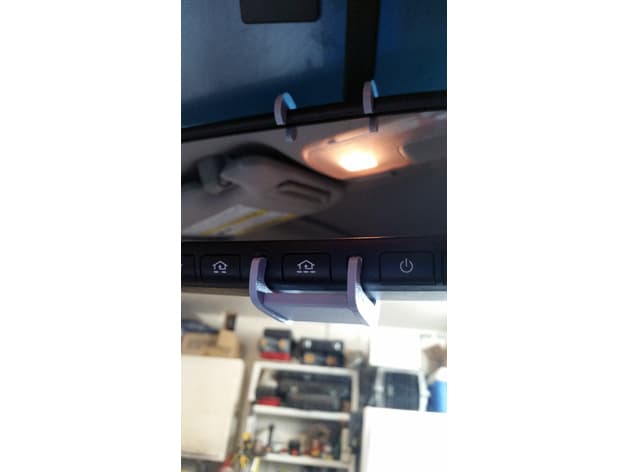

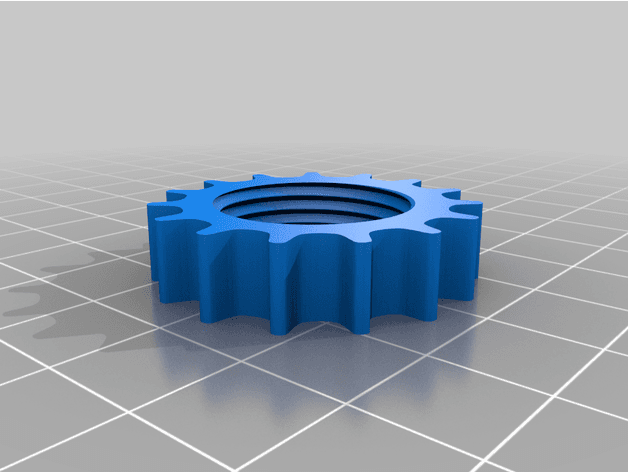

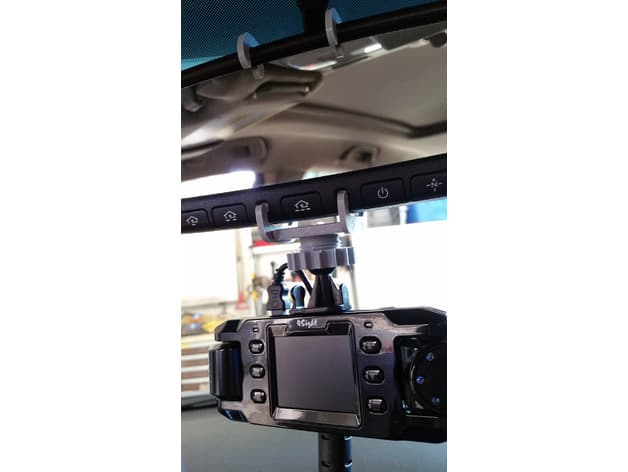

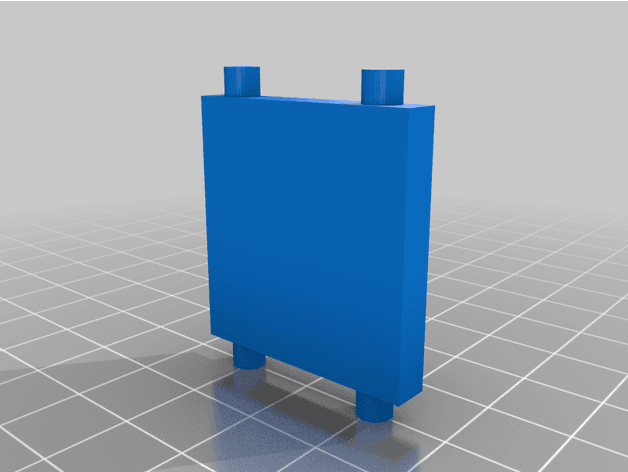

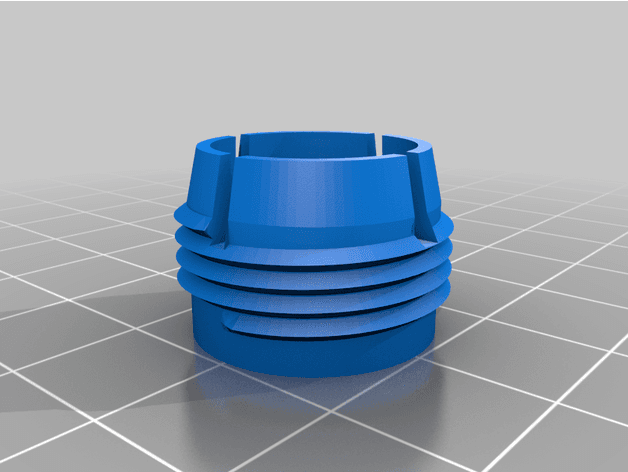

This is an original design, borne out of necessity. I have a (fairly expensive) dash camera that was being held in place via a suction cup. Occasionally, that suction cup would fail, and my camera would tumble down across my front console and onto the floorboard. I needed something better before my camera ended up in pieces. So, I designed this harness to address it. It is custom molded to my 2008 Subaru Outback's rear view mirror, which has auto-dimming and Homelink. The "mirror_grapple" object provides dowel holes for the "adapter_platform" object to slot into, which actually holds it in place very tightly when the two grapple sides are positioned properly, with their bottom "hook" slotted over the two depressions (see the images). For my particular requirements (that of saving the life of my dash cam), I recreated from scratch the "ball_socket_adapter" and the "locking_ring" that the suction cup provided for holding the car camera. I then glued the "ball_socket_adapter" to the "adapter_platform", and used the "locking_ring" to hold the camera ball socket tightly enough that it doesn't move when the car turns. I have included these additional items here, but the harness/platform print can be done to provide stable support for any other item that you may need to attach to your rear view mirror. I hope others find this useful. Note: As should be obvious, don't use any printed item in a vehicle that will be exposed to sunlight. Even with a car cover, the temperature in the vehicle will cause your print (especially PLA) to melt.

Compatible Vehicles

Published Jun 27, 2026Updated Aug 11, 2026

Originally published on thingiverse.com by Bob Hood (b0bh00d) · License: CC BY
