Air Intake For Acura TSX 09 and Others - image

Files (2)

Sealing_case_for_8039_Intake_Design_2nd_print_for_fail_remake.STL

STL

108.9 KB

8039_intake_design_2.5.STL

STL

1.1 MB

Print guidance estimate

Uses saved filament metadata

Print cost & setup estimate

Saved filament data plus editable planning inputs for cost and time.

2 model files

Recommended kit

50g

Based on 25% main infill across listed model files

Material cost

$1.20

Filament only at roughly $24/kg PETG / ASA

Print time

2.0h saved / 1.4h–2.4h estimate

Uses 70 mm/s, 0.2 mm layers; verify supports in slicer

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Reference shelf

Recommended filament for this print

Product references matched to the published material guidance. Confirm diameter, heat resistance, colour, and printer compatibility.

Referenced item	What to verify	Price & availability
PETG filamentAmazon · Affiliate link	Amazon product page for 1.75 mm PETG; confirm colour, spool size, print temperature, seller, and delivery region.	Check price at Amazon
ASA filamentAmazon · Affiliate link	Amazon product page for 1.75 mm ASA; use an enclosure and suitable ventilation, and confirm seller and regional availability.	Check price at Amazon

Affiliate disclosure: if you buy through an eligible link, 3DPrintedCarPart may earn a commission at no extra cost to you. As an Amazon Associate I earn from qualifying purchases. Confirm product specifications, compatibility, seller terms, and vehicle safety before ordering or using anything. Amazon may redirect you to a nearby supported store; otherwise the original Amazon.com page remains available.

Unsure which one fits? Read the automotive filament guide.

Mechanical/Functional

Air Intake For Acura TSX 09 and Others

0 downloads266 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

2 hosted model files

STL

Material start

PETG or ASA for durability and heat resistance

Saved part guidance

Strength start

20-30% infill for a balance between strength and weight

Saved part guidance

Orientation / supports

Likely not needed

Exact totals

50 g · 2 hours

Saved estimate

Vehicle exposure

Engine-bay exposure — use rated material or OEM

Open the STL, 3MF, or OBJ model in your slicer before printing. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

License & use

CC BY

Commercial use allowed

Attribution required

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

Michael Chen

Verified

Description

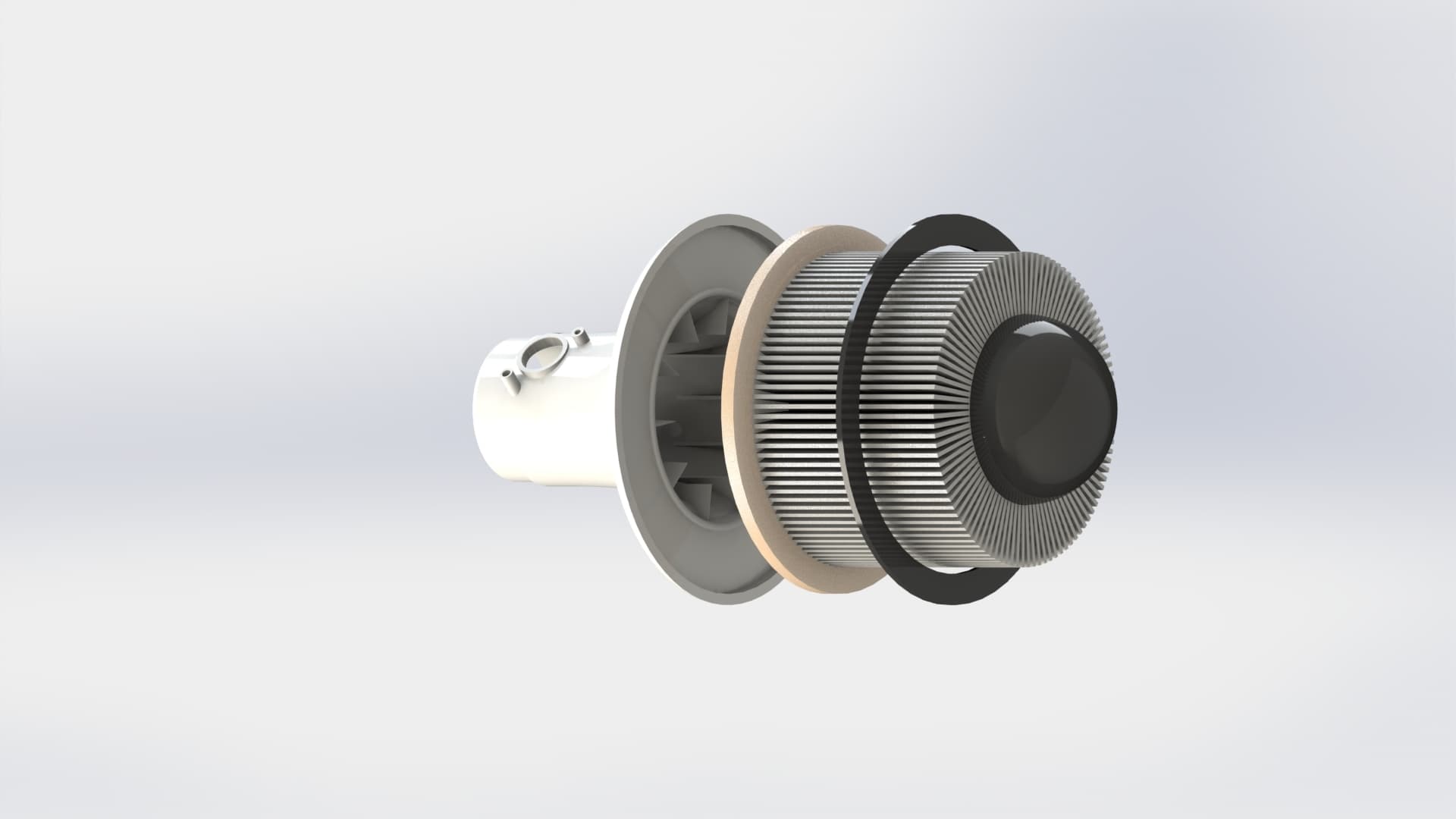

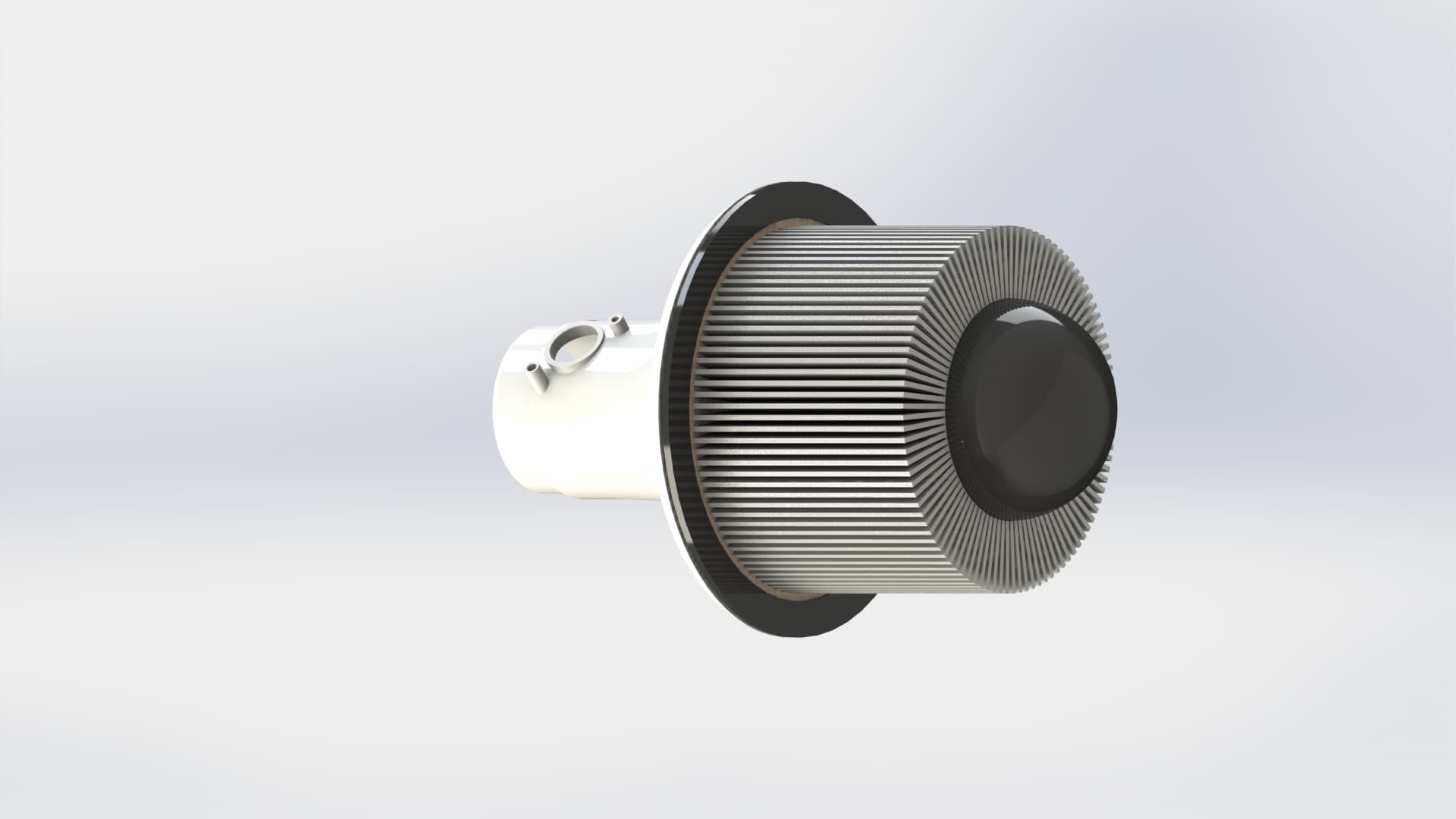

This is to replace the traditional airbox in an Acura TSX 90-13 models. It utilizes a series of large binder clips and the filter is a paper one made by Fram (8039). The hole in the side is for the MAF sensor and should seal relatively well. In theory, this setup should give the engine more air than the standard paper filter. I currently still use it, and it pretty nicely. -Place the filter onto the funnel mount. -Clip the binder clips around the edge of the funnel mount. Please note that this is a work in progress.
