BMW 3-pin rear brake caliper rewind tool
Files (1)
Reference shelf
Recommended filament for this print
Product references matched to the published material guidance. Confirm diameter, heat resistance, colour, and printer compatibility.
| Referenced item | What to verify | Price & availability |
|---|---|---|
| PETG filamentAmazon · Affiliate link | Amazon product page for 1.75 mm PETG; confirm colour, spool size, print temperature, seller, and delivery region. | Check price at Amazon |
| ASA filamentAmazon · Affiliate link | Amazon product page for 1.75 mm ASA; use an enclosure and suitable ventilation, and confirm seller and regional availability. | Check price at Amazon |
Affiliate disclosure: if you buy through an eligible link, 3DPrintedCarPart may earn a commission at no extra cost to you. As an Amazon Associate I earn from qualifying purchases. Confirm product specifications, compatibility, seller terms, and vehicle safety before ordering or using anything. Amazon may redirect you to a nearby supported store; otherwise the original Amazon.com page remains available.
License & use
The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.
Shared by
Dallas Urwin (DallasU)Designers selling from the US, Canada, the UK, the EU/EEA (except Iceland), Switzerland and Gibraltar can also list separate original designs for sale and receive 80% of the listing price, paid out by Stripe in your local currency (conversion fees may apply). Claiming credits you here; it doesn't put this imported part up for sale.
Description

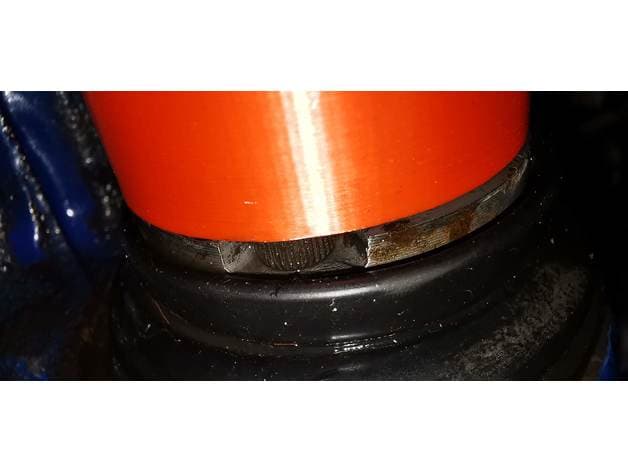

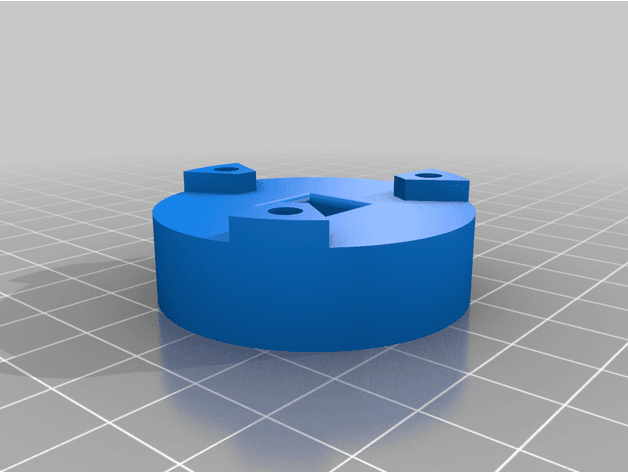

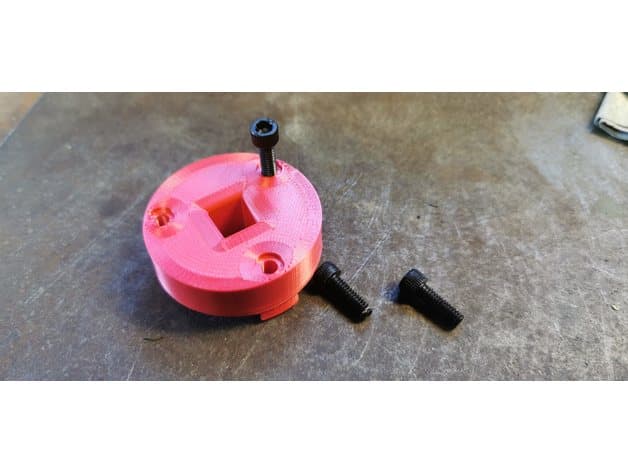

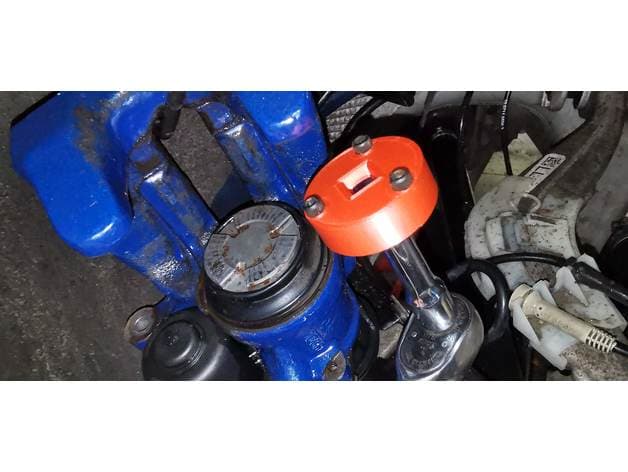

3 pin tool for rewinding rear BMW brakes. I designed the tool to work with a G30, but I think it will work with other BMWs models. The tool is reversable and allows you to either use the triangular pattern for best fit, or the head of the screws. Note: Do not attempt to use without screws installed, it will just shear off the triangular pieces. The design uses #8 x 32 x 1/2" allen head cap screws. For printer settings, beef up the perimeter to 8 and use 50% triangle infill for added strength. Basic PLA did the job. I used the tool successfully to complete a brake job, and redesigned it to improve strength and fit. Simply use a 3/8 ratchet and short extension, then turn clockwise and apply downward pressure. Depending on how tight your calipers are you may only get one use from these, but for a DIY job it works without buying any special tools to compress the caliper.
Compatible Vehicles
Originally published on thingiverse.com by Dallas Urwin (DallasU) · License: CC BY
