BMW MOTORSPORT badge for BMW E30
Print this part
Use the part context as a starting point, then confirm geometry-dependent values in your slicer.
Files
2 hosted model files
STL
Material start
PETG or ASA for durability and heat resistance
Saved part guidance
Strength start
20-30% infill for a balance between weight and strength
Saved part guidance
Orientation / supports
verify in slicer
Exact totals
Slice for grams + time
Model geometry and final settings determine both
Vehicle exposure
UV/weather exposure — ASA is the starting point
Open the STL, 3MF, or OBJ model in your slicer before printing. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.
License & use
The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.
Shared by
3DPrintedCarPartDescription

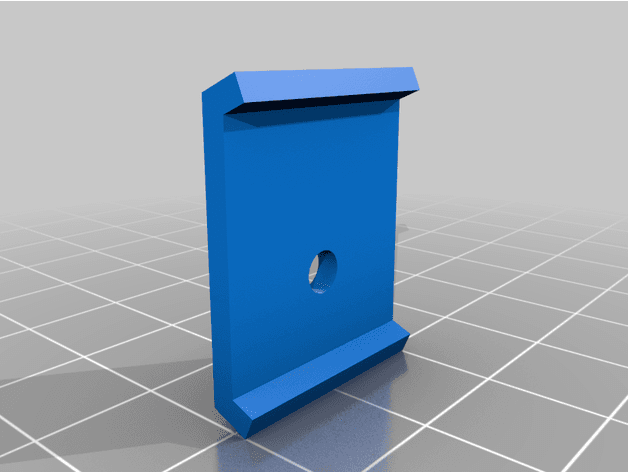

I designed a "BMW MOTORSPORT" badge for an BMW E30 grille. Normally there is the M3 or the M-TECHNIC badge, but an BMW MOTORSPORT badge is cool, too. You need to print the badge and the holder. Make sure to print the same size, otherwise it won´t fit anymore. Raft is very important to prevent warping. Also you need a little screw to screw them together. After a little bit of sanding, i sprayed a filler on it, so that the printing texture isn`t visible anymore. Then i sprayed it black. I painted the letters with an touch-up applicator, but you can use all kind of paint (make sure it is UV resistent). For perfect finish, i put some clearcoat on it. The support inside the screw-hole must be drilled out. The two pins on the back prevent the badge from rotating, so it stays horizontally. I printed and tested it many times, so it should fit perfectly. If you like my project, i would be pleased about a little donation:) Paypal: https://paypal.me/ClaudiusGraeml?country.x=DE&locale.x=de_DE
Compatible Cars
Originally published on thingiverse.com by (Clau_00) · License: CC BY
