Exterior

BMW Trim Clip for Vintage 2002

1 downloads310 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

1 hosted model file

STL

Material start

TPU

Saved part guidance

Strength start

medium to high infill for durability

Saved part guidance

Orientation / supports

Likely not needed

Exact totals

50 g · 2 hours

Saved estimate

Vehicle exposure

UV/weather exposure — ASA is the starting point

Open the STL, 3MF, or OBJ model in your slicer before printing. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

License & use

CC BY

Commercial use allowed

Attribution required

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

Michael Chen

Verified

Description

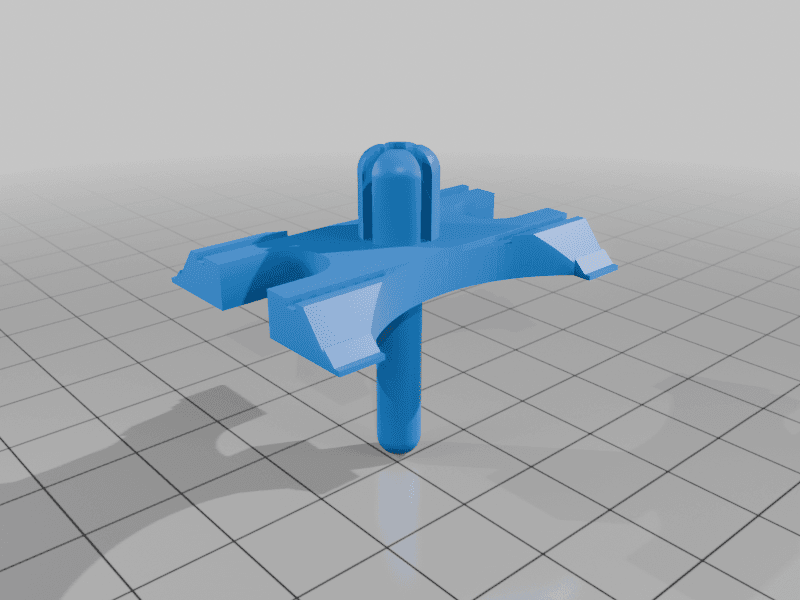

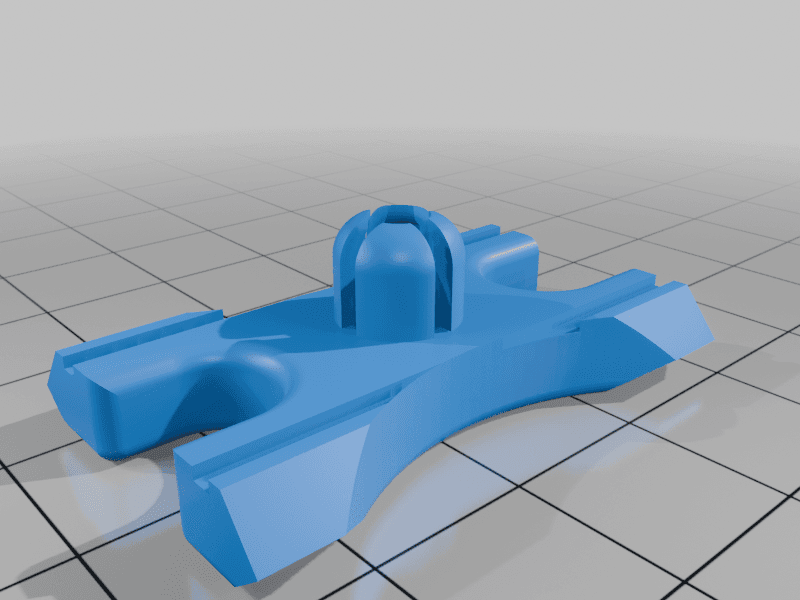

Side Body Trim Retainer Clip for BMW 2002. The commercially available clips were unacceptable because they were improperly made and would not stay in place. This clip works well on my friend's 1973 BMW 2002 TTI. It holds the side trim on the doors and fenders. USE TPU. I tried ABS, but it was not durable enough and a couple of them broke during install. The TPU ones were indestructible. This is the final version of several iterations to get the fit just right. Reverse the insert pin when printing to make the rounded portion up. It will not require any supports to print.

Compatible Cars

BMW (all models)

Published Mar 12, 2026Updated Aug 9, 2026

Originally published on thingiverse.com · License: CC BY
