Case for the Tesla-Android project
License & use
Files stay with the original publisher; this catalog entry does not grant hosting or resale rights. License status does not verify vehicle fitment, OEM rights, design patents, or safety.
Shared by
Reedy Creek (Reedycreek)Designers selling from the US, Canada, the UK, the EU/EEA (except Iceland), Switzerland and Gibraltar can also list separate original designs for sale and receive 80% of the listing price, paid out by Stripe in your local currency (conversion fees may apply). Claiming credits you here; it doesn't put this imported part up for sale.
Description

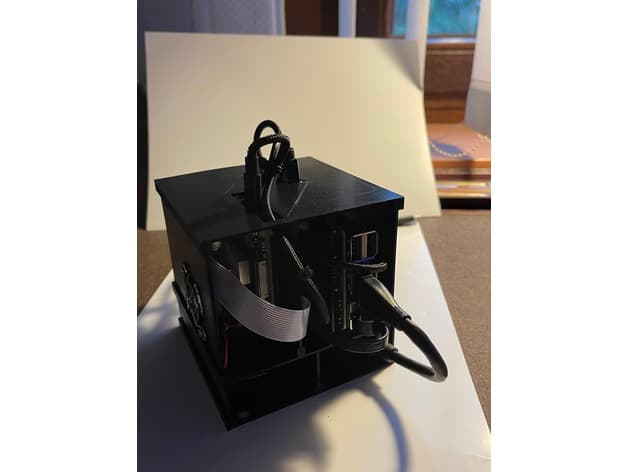

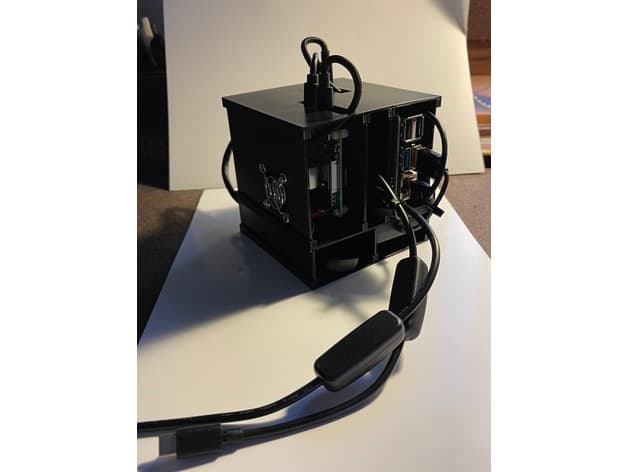

This is a simple case for the Tesla-Android project Use it or tweak it as you like. Assembly (hard to describe - look at the pictures): _ Optional: put the 4 little bases (V1_Feet_4x) in the holes on the lower side of the base (V1_Plate_Bottom) I glue a little piece of felt under them so that nothing can scratch 01. Put the Wall (V1_Wall_Bottom_Inside) in the middle guidance of the base (V1_Plate_Bottom) 02. Insert the side walls (V1_Wall_Top_Outside) carefully through the slots on the side of the middle plate (V1_Plate_Middle) - insert both side walls mirrored to each other (look for the fan hole which needs to be over the big heatsink of the pi) 03. Connect 02 with 01; make sure that the upper nose from (V1_Wall_Bottom) fits in the slot of the middle plate. 04. if needed mount the fans on the side walls 05. mount the two raspberry's on the inside walls (V1_Wall_Top_Inside_x2) mirrored to each other 06. fit the inside walls (with the raspberry's) into the guidance rails of the middle plate 07. Put the top plate (V1_Plate_Top) on 08. carefully cable everything on the lower right there is space for the carplay adapter on the lower left the is space for them modem (I use a short usb extension) between the two raspberry's the is space for the ethernet cable and the HDMI-CSI-2 circuit board. P.S. I added a second version which is smaller at heigh. For that you just need the V2_Plate_Bottom and two of the V2_Wall_Outside You don't need: V1_Plate_Bottom V1_Plate_Middle V1_Wall_Bottom V1_Wall_Top_Outside Much faster to print
Compatible Vehicles
Originally published on thingiverse.com by Reedy Creek (Reedycreek) · License: CC BY-NC-SA
