Files (5)
Based on 25% main infill for the largest likely-needed model file
Filament only at roughly $24/kg PETG / ASA
Uses 70 mm/s, 0.2 mm layers; verify supports in slicer
| STL file | Role | Source size | PETG / ASA 20% | PETG / ASA 25% | 100% solid | Recommendation |
|---|---|---|---|---|---|---|
| F150-CupHolder-Dovetail-female.stl | Mount / bracket | 10.0 KB STL | 8g $0.20 | 9g $0.22 | 20g $0.47 | Small functional file: print slowly; consider 80–100% infill for durability. |
| F150-CupHolder-Dovetail-Male.stl | Mount / bracket | 684 B STL | 8g $0.20 | 9g $0.22 | 20g $0.47 | Small functional file: print slowly; consider 80–100% infill for durability. |
| F150-CupHolder-Main-Body.stl | Mount / bracket | 24.7 KB STL | 9g $0.21 | 9g $0.22 | 21g $0.49 | Small functional file: print slowly; consider 80–100% infill for durability. |
| F150-CupHolder-Top.stl | Mount / bracket | 268.5 KB STL | 17g $0.40 | 18g $0.44 | 40g $0.96 | Ensure proper adhesion to the print bed to prevent warping |
| F150-CupHolder-Whole.stl | Mount / bracket | 276.7 KB STL | 17g $0.41 | 19g $0.44 | 41g $0.97 | Ensure proper adhesion to the print bed to prevent warping |
Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

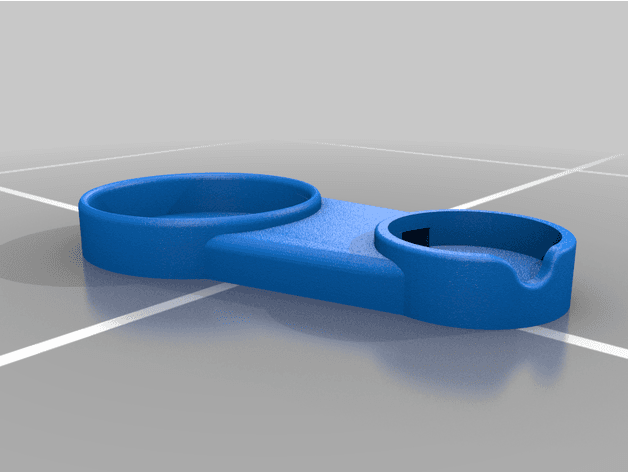

Cup Holder + Watch Charger Combo for F150
Need this part printed?
Tell us what you need and we'll help you get it 3D printed. Takes a minute — no account needed and no payment is collected.
Opens a quick request form. No order is placed and no payment is collected. Prefer email? Email us instead.
Description

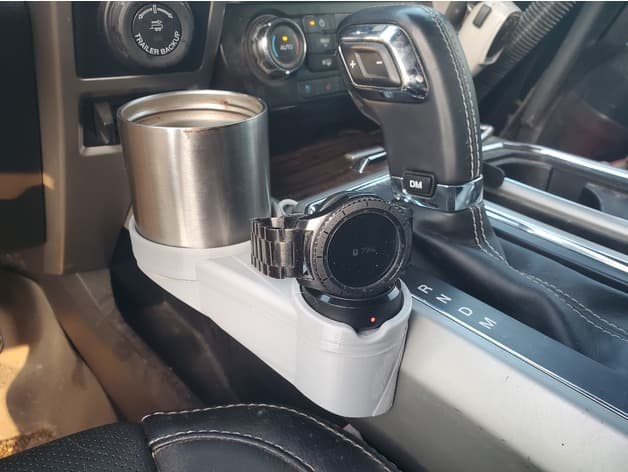

This was my first design project. I had built something similar out of wood but always knew a more refined version would be easier on a printer. WHAT IT IS: A very specific tool for holding the YETI Cup Cap as well as the charging cradle for the Samsung Gear S3. I use this on my commute to work to drink my coffee and charge my watch. This keeps them in perfect position. There is a channel routed through the design to accommodate the charging cord. IF that very specific use-case is not applicable to you, but you do have a late 20-teens F-150, you may still want the stl files "F150-CupHolder-Dovetail-Male.stl" and "F150-CupHolder-Dovetail-Female.stl" as those will mate with the edge of the center console nearly perfectly. You are absolutely free to use them to create whatever you would like, would love to see some of your creations! The Dovetail male is designed to fit 2 medium CommandStrips on the narrower side. I would not reccomend printing PLA if you plan to use it in a warm climate as it will likely warp badly in the hot truck. I used PETG and will edit if I have any troubles. ****07/19/2020 NOTE: As of right now, the channel for the charging cable is VERY tight and will only fit USB Cords with very small heads.
Compatible Cars
Originally published on thingiverse.com by Will Neisler (Wrelsien) · License: CC BY
