Dashboard Speaker Adapter for Toyota GT86/Scion FR-S/Subaru BRZ

0 downloads110 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

2 hosted model files

STL

Material start

PETG or ABS

Saved part guidance

Strength start

100% infill with a strong overlap between infill and inner wall, using zig zac or lines pattern

Saved part guidance

Orientation / supports

supports likely, verify in slicer

Exact totals

Slice for grams + time

Model geometry and final settings determine both

Vehicle exposure

High cabin heat — validate PETG or choose ASA/ABS

Open the STL, 3MF, or OBJ model in your slicer before printing. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

License & use

CC BY

Commercial use allowed

Attribution required

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

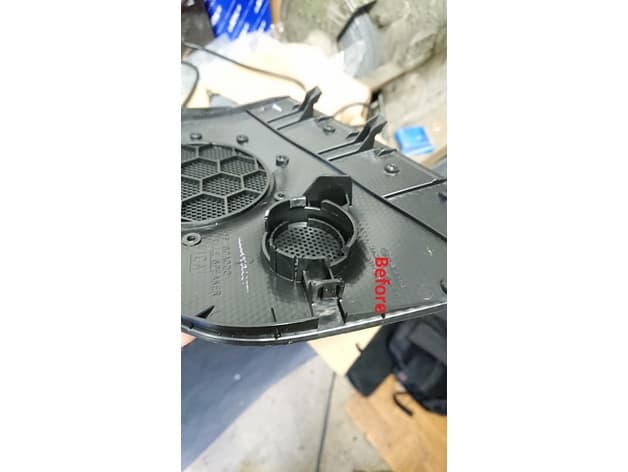

This is a Dashboard Speaker Adapter for Toyota GT86/Scion FR-S/Subaru BRZ. It is a full redisign of Schankenstein´s Speaker Adapter. It also features a rainshield, which is allways very important to have. It is made for a Andrian Audio A80neo and a A25/A25T/A25G speaker. It includes a 30ml coupling volume for tweeters with drilled core. (as the A25G) Since speakers it is designed for use standardized dimensions, it should fit many other models. Status: -V02 Printed and tested -> works fine, OEM speker cover need to be cut back slightly (see pictures) Instructions: -Use PETG or ABS. Materials like PLA will not withstand the heat and stress of this application. Furthermore, accoustics could be affected in a negative way. -Use supports. Printbed touching, 70° overhang angle. -Print with 100% infill, but take care to really use infill and not maximum bottom layer count. (in CURA) Set bottom layer / top layer count to 3. Otherwise you might get a slow and/or a weak print. -Make sure to use a good overlap between infill and inner wall to get a strong print. -Use zig zac or lines as infill patern to get a strong print. Do not use concentric patern. Installation: -drill hole(s) for tweeter cable as necessary -OEM tweeter mount needs to cut off sligthly (see pictures) -use 3 plastic rivits for fixation -form a proper volume for midrange speaker above air duct by use of butyl plates -close gaps arround adapter to create sealed volume for midrange speaker.
