Dodge Center Wheel Cap - Durango Dakota Ram - image

Files (1)

DurangoCap4c.stl
STL
4.1 MB
Print guidance estimate
Uses saved filament metadata
Print cost & setup estimate
Saved filament data plus editable planning inputs for cost and time.
1 model file
Recommended kit
50g

Based on 25% main infill across listed model files

Material cost
$1.20

Filament only at roughly $24/kg PETG / ASA

Print time
2.0h saved / 1.4h–2.4h estimate

Uses 70 mm/s, 0.2 mm layers; verify supports in slicer

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Reference shelf

Recommended filament for this print

Product references matched to the published material guidance. Confirm diameter, heat resistance, colour, and printer compatibility.

Referenced itemWhat to verifyPrice & availability
PETG filamentAmazon · Affiliate linkAmazon product page for 1.75 mm PETG; confirm colour, spool size, print temperature, seller, and delivery region.Check price at Amazon
ASA filamentAmazon · Affiliate linkAmazon product page for 1.75 mm ASA; use an enclosure and suitable ventilation, and confirm seller and regional availability.Check price at Amazon

Affiliate disclosure: if you buy through an eligible link, 3DPrintedCarPart may earn a commission at no extra cost to you. As an Amazon Associate I earn from qualifying purchases. Confirm product specifications, compatibility, seller terms, and vehicle safety before ordering or using anything. Amazon may redirect you to a nearby supported store; otherwise the original Amazon.com page remains available.

Unsure which one fits? Read the automotive filament guide.

Exterior

Dodge Center Wheel Cap - Durango Dakota Ram

0 downloads179 views0 quality score

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

1 hosted model file

STL

Material start

PETG or ASA for durability in outdoor conditions

Saved part guidance

Strength start

20-30% infill for a balance between weight and strength

Saved part guidance

Orientation / supports

Likely not needed

Exact totals

50 g · 2 hours

Saved estimate

Vehicle exposure

UV/weather exposure — ASA is the starting point

Open the STL, 3MF, or OBJ model in your slicer before printing. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

0

License & use

CC BY
Commercial use allowed
Attribution required
Safety/IP review

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

MC

Shared by

Michael Chen
Verified

Description

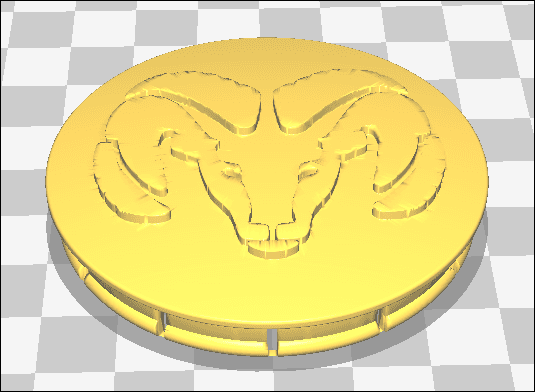

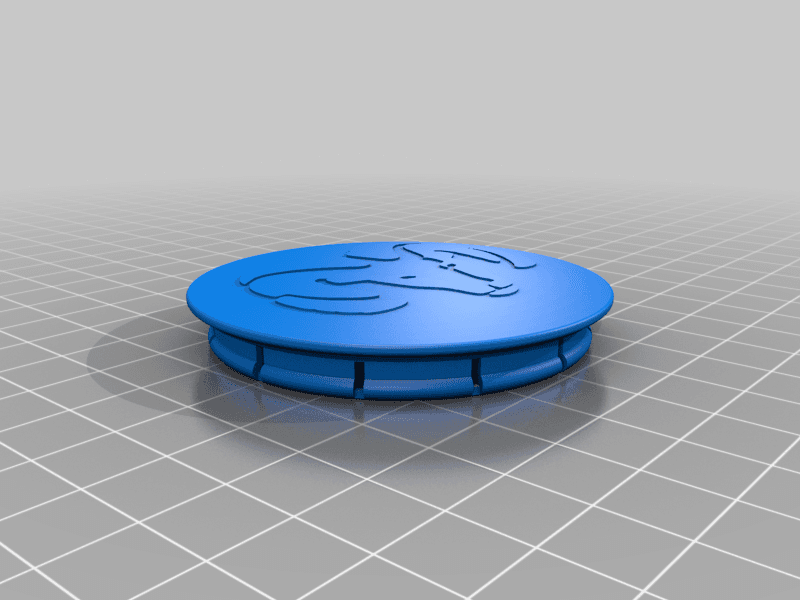

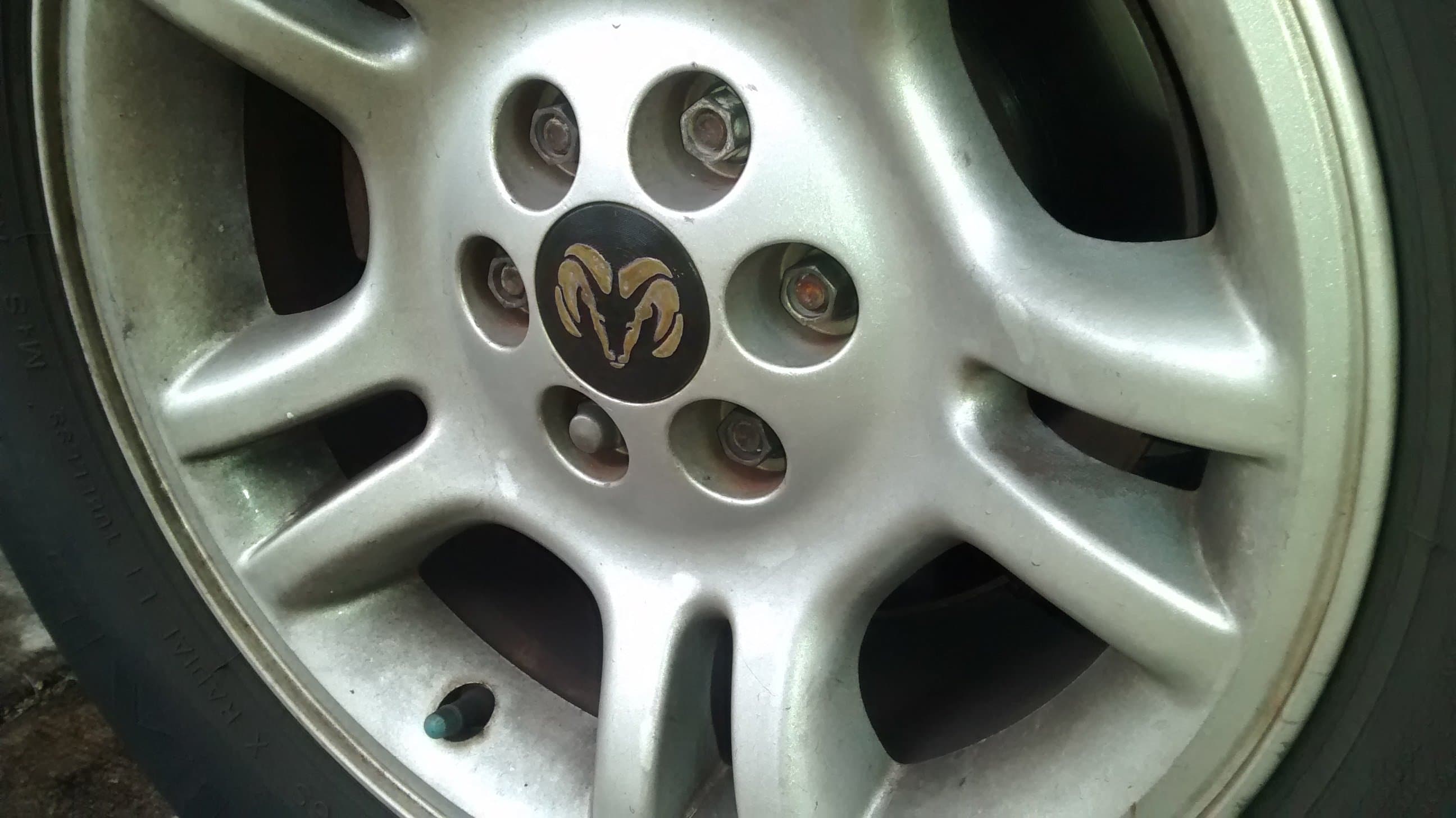

When the 3rd of 4 OEM wheel caps fell out of my 2003 Dodge Durango, I felt that this would be a fun 3D project to take on. This design has a slightly raised ram emblem on it, and is rounded similar to the original design. I think you'll agree that this looks a ton better than the empty hole I had (and see all over town). I hope it helps you out as well. I printed some successfully without rafts, but my final ones all had rafts as the black filament I was using wasn't adhering to the hot bed as well as the white prototypes. 1) I have the bottom connected in a ring to make it more solid during printing, once removed, you need to cut the small connection between the tabs so they can flex as they're pressed into the wheel opening. 2) I printed in black (other colors could be interesting... neon anyone?) and painted that raised ram image with a metallic paint, and then clear coated the entire cap prior to popping into the wheel of my truck. These fit my 2003 Dodge Durango. Per postings on the internet, they should fit other vehicles as well... (I cannot guarantee, so print one and try it).

Compatible Cars

Published Mar 8, 2026Updated Aug 9, 2026

Originally published on thingiverse.com · License: CC BY
