Ford 3V Timing chain wedge tool for Cam Phaser replacement

0 downloads54 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

1 hosted model file

STL

Material start

ABS or nylon for durability

Saved part guidance

Strength start

medium to high infill for strength and minimal flex

Saved part guidance

Orientation / supports

verify in slicer

Exact totals

Slice for grams + time

Model geometry and final settings determine both

Vehicle exposure

Higher-heat material; verify location and load

Open the STL, 3MF, or OBJ model in your slicer before printing. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

License & use

CC BY

Commercial use allowed

Attribution required

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

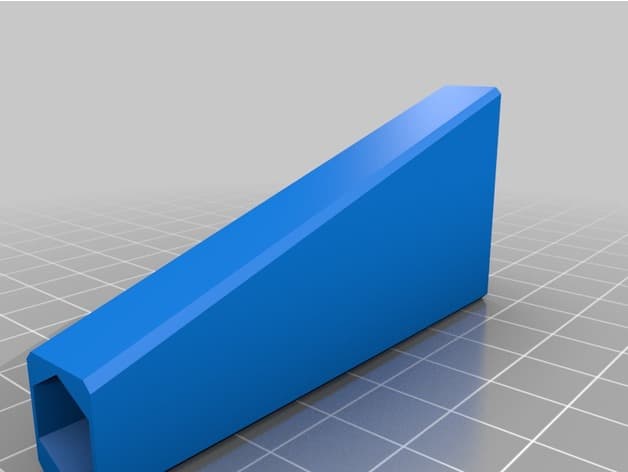

I designed this Timing Chain Wedge Tool for all 2004 and up Ford 4.6L & 5.4L, 3 Valve modular engines. This Timing Chain Wedge will help you get the job done quickly and easily! It allows for Easy Cam Phaser replacement Without Removing the Timing Cover. Also allows you to remove the camshaft without losing chain tension. Only additional hardware required is 3ft of #10-24 threaded rod, nyloc nuts, and a small handle. Assemble like pics and bend the threaded rod to aid in installation of tool. NOTE- Only print in Flexible PLA, nylon, or ABS. Here are the instructions. The video is for a Cam Phaser lock-out kit, but the procedures for using the tool are identical if only replacing noisy Cam phasers. https://www.youtube.com/watch?v=YsoU2zEWTyE
