Ford 5.0 crankshaft repair sleeve and seal installation tool

0 downloads64 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

1 hosted model file

STL

Material start

PETG or ASA for durability and heat resistance

Saved part guidance

Strength start

40-60% infill for strength and minimal weight

Saved part guidance

Orientation / supports

verify in slicer

Exact totals

Slice for grams + time

Model geometry and final settings determine both

Vehicle exposure

Engine-bay exposure — use rated material or OEM

Open the STL, 3MF, or OBJ model in your slicer before printing. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

License & use

CC BY

Commercial use allowed

Attribution required

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

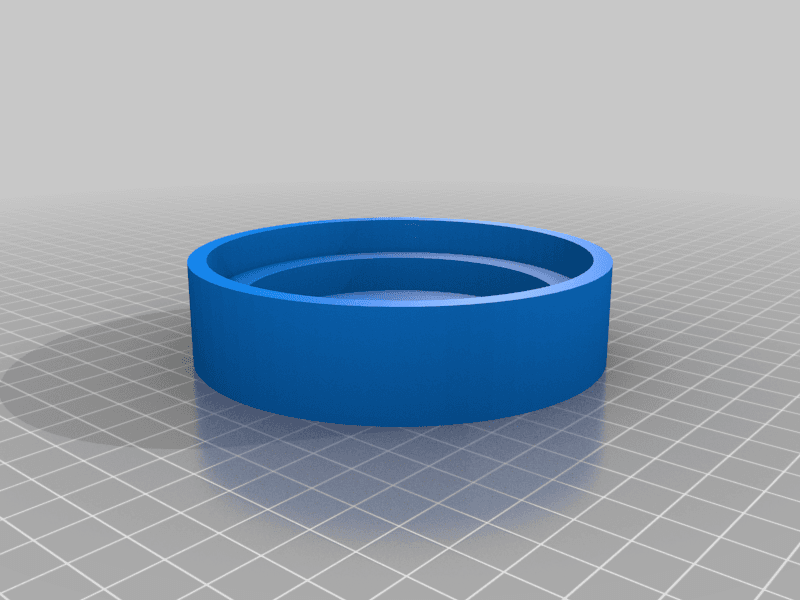

I made this tool to install a rear crankshaft sleeve on a Ford 5.0 engine. This tool also can install the rear main seal too. I printed with PETG at 50% infill. I used this with a FelPro 16250 crankshaft repair sleeve which for 5.0, 4.2, 3.9, 2.8L engines. I then used this to install a FelPro BS 40620 rear main seal which is used on many Ford engines: 6.8, 5.8, 5.4,5.0, 4.6, 4.2, 3.9, 3.8, 3.0, 2.5, 2.3L I believe the Ford # is M-6701-B302 Note: a FelPro BS 40644 seal is PTFE and is NOT to be used with a repair sleeve.
