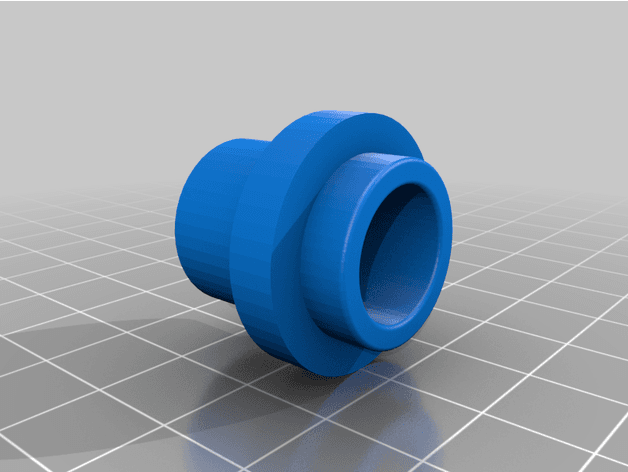

Ford Ranger Window Crank Bushing

0 downloads70 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

Source link only

No hosted model files

Material start

PETG or ASA

Saved part guidance

Strength start

medium to high infill for durability

Saved part guidance

Orientation / supports

verify in slicer

Exact totals

Slice for grams + time

Model geometry and final settings determine both

Vehicle exposure

Cabin/interior use; avoid high-heat zones

Download the model at its source, then confirm the format is supported by your slicer. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

Download at source

License & use

CC BY-NC

Link-only

Attribution required

Files stay with the original publisher; this catalog entry does not grant hosting or resale rights. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

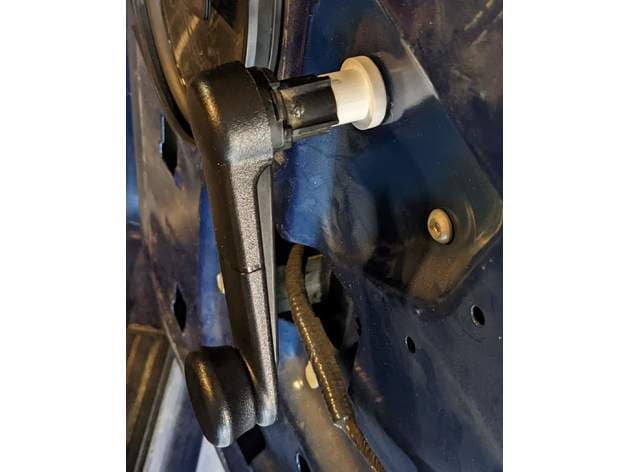

While Driving around I noticed a rattling noise coming from my door in my 2008 Ford Ranger. It turns out the window crank mechanism had worn with age and had some play in it. I printed this bushing to press around the crank spline shaft and haven't had any rattling since. To install, remove the window crank handle with a long T20 bit, then simply push the bushing into place (short end goes in first). If it doesn't slide in all the way (mine didn't because I wanted it to be a snug fit) just get it on enough to get the crank handle screw started, then tightening down that screw will push the bushing the rest of the way in place You do not need to remove the door card. the bushing will slip through the existing hole. I did not notice any difference in terms of resistance when raising and lowering the window.
