Ford Transit "slim console" aux input bezel

0 downloads10 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

1 hosted model file

STL

Material start

PETG or ASA

Saved part guidance

Strength start

20-30% infill for durability

Saved part guidance

Orientation / supports

verify in slicer

Exact totals

Slice for grams + time

Model geometry and final settings determine both

Vehicle exposure

High cabin heat — validate PETG or choose ASA/ABS

Open the STL, 3MF, or OBJ model in your slicer before printing. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

License & use

Public Domain

Commercial use allowed

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

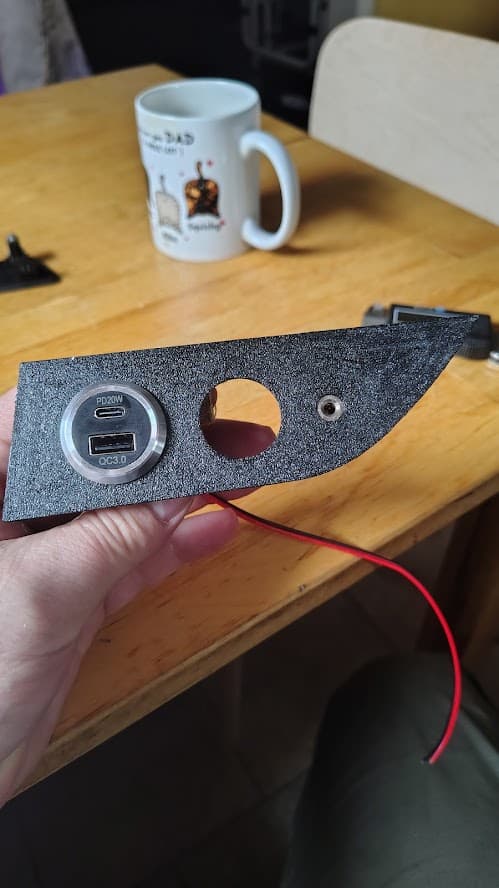

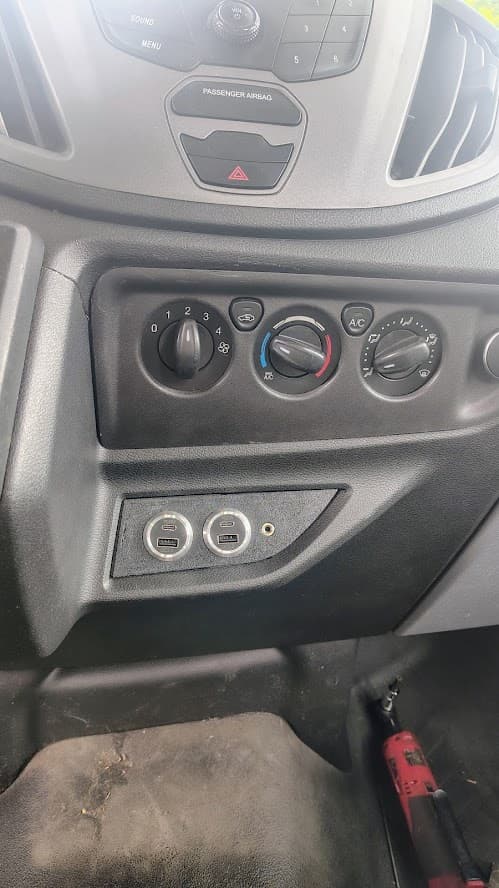

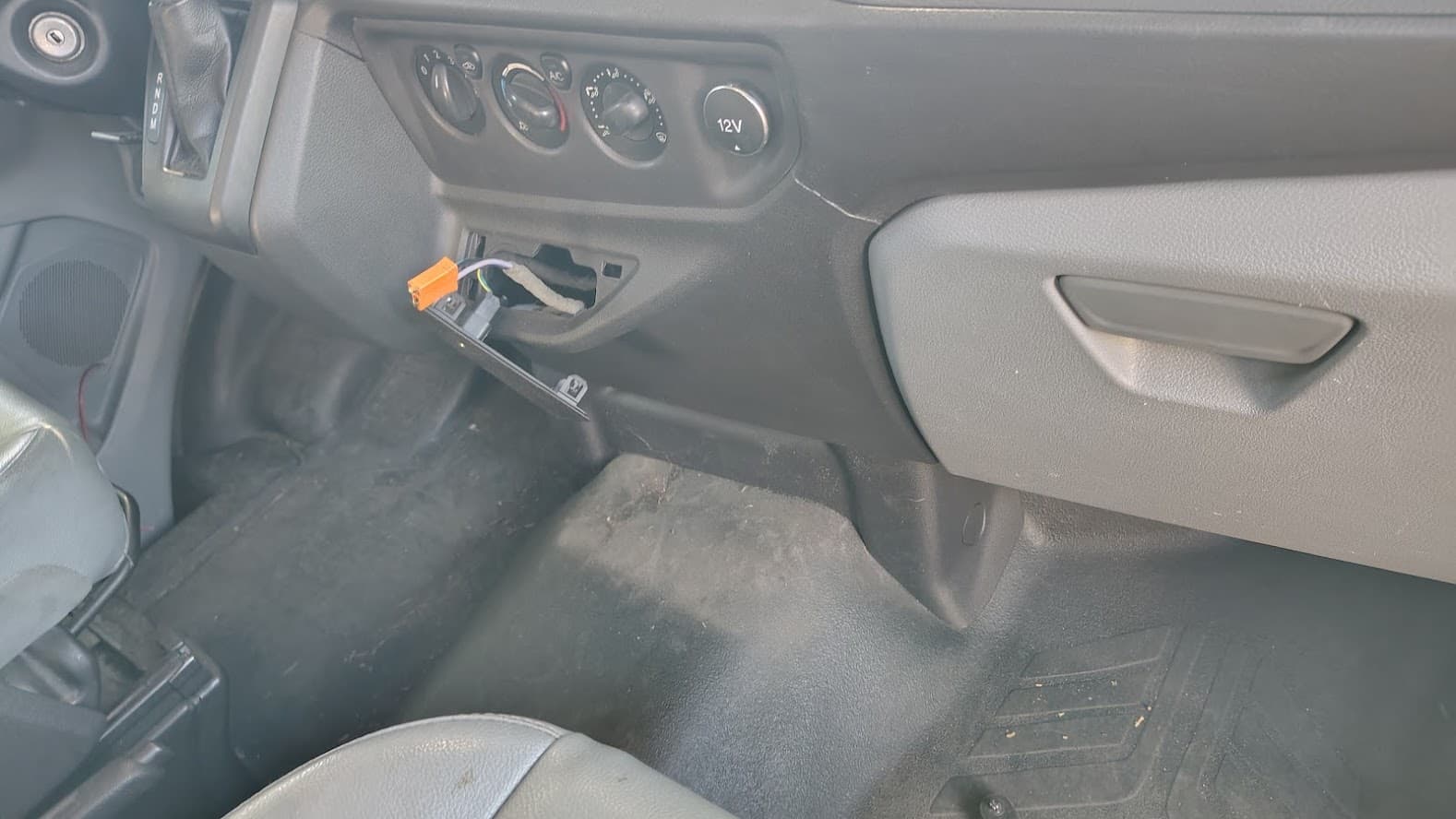

After installing the "slim console" in my recently acquired 2017 Transit 150 to delete the giant cupholders and allow better accessibility to the passenger seat for my wife, I discovered that the original console's bezel for the aux input jack was shaped differently than the new console's, and that bezel for the new console is NLA from Ford. I knew my wife wouldn't stand for a gaping ugly hole in the dash and I needed a place for some USB chargers, so I whipped this up in Fusion to get the job done. This has to be installed before the console is in place, and uses a backing plate to stay in place, with the USB chargers sandwiching the whole assembly to the console, but there's enough slack in the wires that it wasn't a big deal. Curves aren't quite perfect but it's good enough for me and hard to notice. I printed with the visible side on the bed of my AD5X so the texture would help it look more "factory". I used Overture black PETG, if it warps I can reprint in ABS or ASA easily enough. STEP included if you want to mess with it yourself.
