Garmin GPS mount for 2017 Ford Super Duty

0 downloads235 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

5 hosted model files

STL

Material start

PETG or ASA

Saved part guidance

Strength start

20-30% infill for durability, with 2-3 walls for stability

Saved part guidance

Orientation / supports

verify in slicer, but likely needed for the ball component

Exact totals

Slice for grams + time

Model geometry and final settings determine both

Vehicle exposure

High cabin heat — validate PETG or choose ASA/ABS

Open the STL, 3MF, or OBJ model in your slicer before printing. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

License & use

CC BY

Commercial use allowed

Attribution required

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

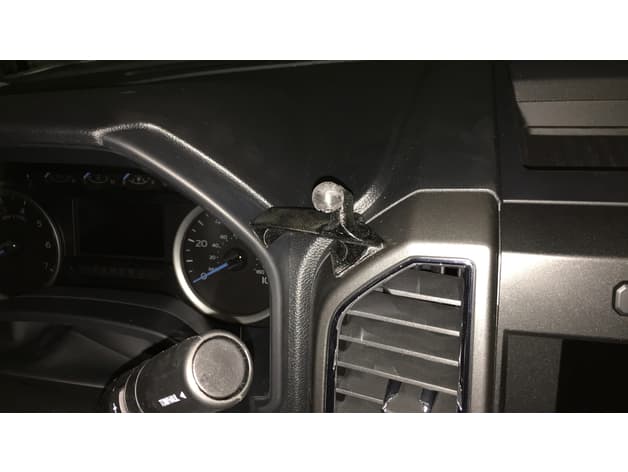

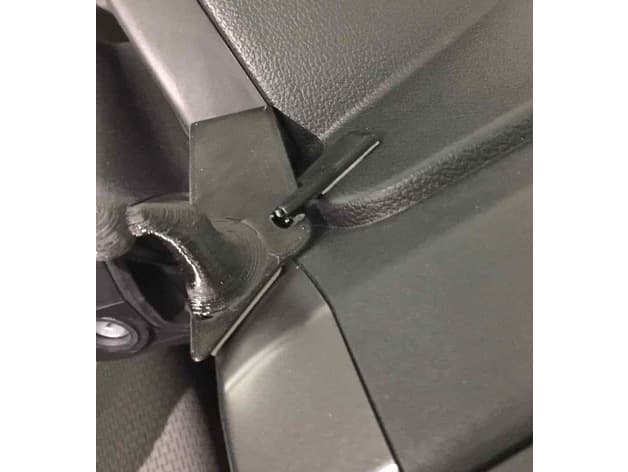

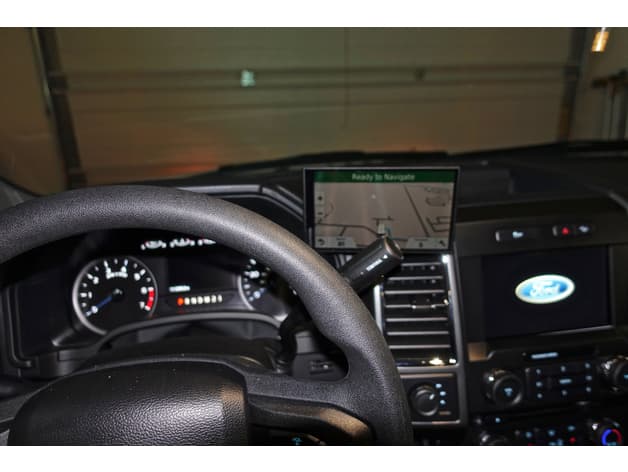

Update: New mount using ProClip https://www.thingiverse.com/thing:4531160 After a quick search for a GPS mount option in a 2017 Super Duty I came up with this little mount for the dash V area. It is mounted with double stick tape. I split the model into 2 pieces for better print result. Used epoxy to join the pieces. There's a slight curve in the facing edge to help align to my original drawing however the ball can be positioned wherever it works best for you. I used support for printing the ball. The model size is just about perfect for ABS and when printed in PETG the ball needed more sanding to properly fit Garmin's mount socket. Update: I've been using this mount with the RV770 GPS and it's pretty big. Couple that with a lot of flexing from the vibrations of dirt road travel, my double stick tape started to let go. So I made a small brace to tame flex forces. A simple post that just needs a dab of epoxy on the end of the peg once everything is mounted with double stick tape. Ok, still not happy with the mount bracket. Sticky on a wedged angle just isn't holding up as a long term mount that stays stuck. Works good enough as long as I don't leave the heavy GPS on it while parked in the sun on hot 100 degree days. Added power cable clips that have been working great for keeping the cables nicely routed up the dash.
