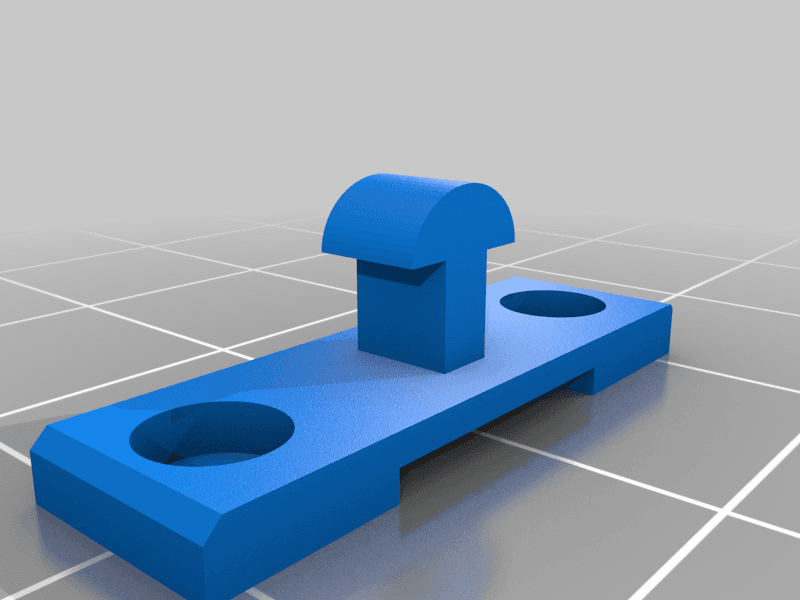

Giulietta Dashboard Storage Clip - image

Files (1)

Giulietta_Dashboard_Storage_Clip.stl

STL

59.6 KB

Print guidance estimate

Slicer data required

Print cost & setup estimate

Setup guidance plus saved or slicer-confirmed filament, cost, and time. Model file size is never treated as printable volume.

1 model file

Recommended kit

Slice required

Slice the required model files; source file size is not printable volume.

Material cost

Slice required

Use the slicer's filament total; STL/3MF byte size is not a cost input.

Print time

Slice required

Slice with the recommended material, infill, orientation, and supports.

STL file	Role	Source size	PETG / ASA 20%	PETG / ASA 100%	100% solid	Recommendation
Giulietta_Dashboard_Storage_Clip.stl	Clip	59.6 KB STL	Slice file	Slice file	Slice file	Print with the pin parallel to the build plate to minimize layer stress

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Dashboard

Giulietta Dashboard Storage Clip

0 downloads41 views0 quality score

Print this part

Check the available model and saved setup details before opening your slicer.

Files

1 hosted model file

STL

Material

PETG or ASA for durability in a car environment

Print time

Slice to calculate

Filament

Slice to calculate

Supports

supports likely, verify in slicer for optimal orientation

Infill

100% infill for strength, as used in the original print

Difficulty

Not rated — inspect geometry

Vehicle heat

Cabin/interior use; avoid high-heat zones

Open the STL, 3MF, or OBJ model in your slicer before printing. Confirm orientation, supports, print time, filament use, and printer compatibility. Test-fit before installing it in a vehicle.

License & use

CC BY

Commercial use allowed

Attribution required

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

This is a replacement clip for the dashboard storage bin on a 2015 Alfa Romeo Giulietta. The storage bin tends to fail either with the clasp, which can be popped out and changed with a Brabantia bin clasp (ebay!) or - as in my case - the pin that is part of the lid itself snapped off. If this happens the only official repair is a complete new storage bin which will cost well over £100 these days. I don't know if different years have a different design so please check first but I imagine they're all much the same. I printed at 0.2mm, 100% infill. Rotate it 90 degrees so it prints on it's side (pin parallel to the build plate) with supports. I did it this way so that when it's closed the spring force isn't pulling against the layers. Use two M2.3 x 8mm self tapping screws to secure the new pin to the inside of the bin lid, making sure to line it up exactly so the new pin is where the old pin was. Depending on where your pin snapped you may have to file the leftovers down a bit before fitting this. Getting the screws to bite in the lid is quite tricky, probably best to drill a tiny pilot hole if you can, but be careful not to go all the way through the lid.
