GMC Canyon Chevrolet Colorado JBL GTO629 rear speaker mount bracket - OpenSCAD

0 downloads194 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

Source link only

No hosted model files

Material start

PETG or ASA for durability in automotive conditions

Saved part guidance

Strength start

20-30% infill for a balance between strength and weight

Saved part guidance

Orientation / supports

verify in slicer

Exact totals

Slice for grams + time

Model geometry and final settings determine both

Vehicle exposure

Cabin/interior use; avoid high-heat zones

Download the model at its source, then confirm the format is supported by your slicer. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

Download at source

License & use

CC BY-NC-SA

Link-only

Attribution required

Files stay with the original publisher; this catalog entry does not grant hosting or resale rights. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

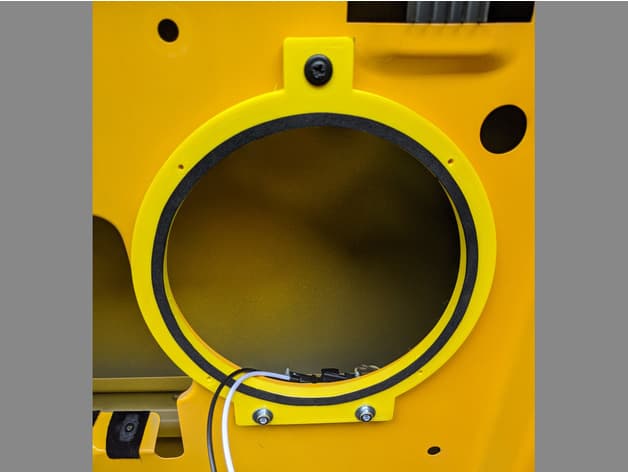

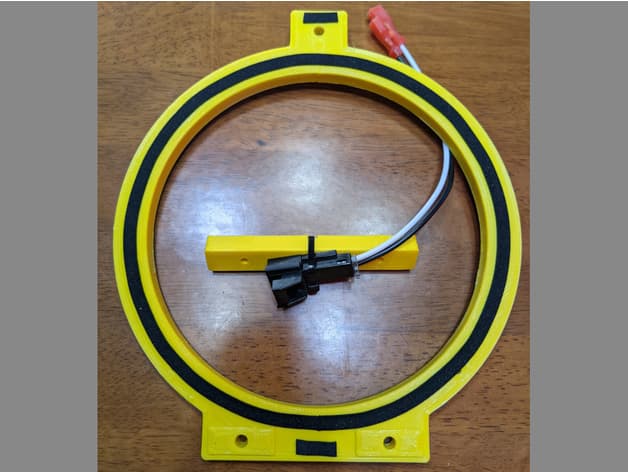

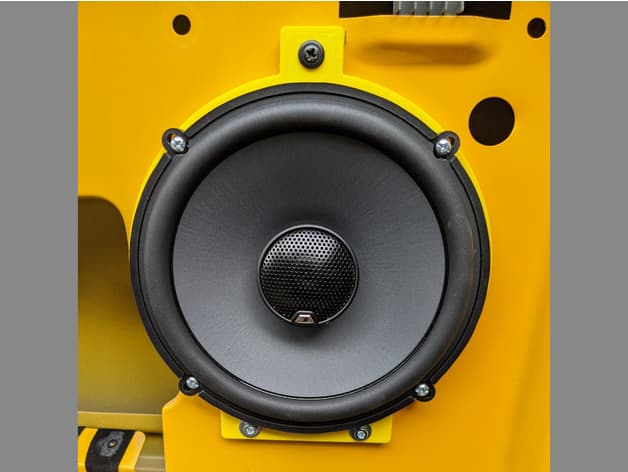

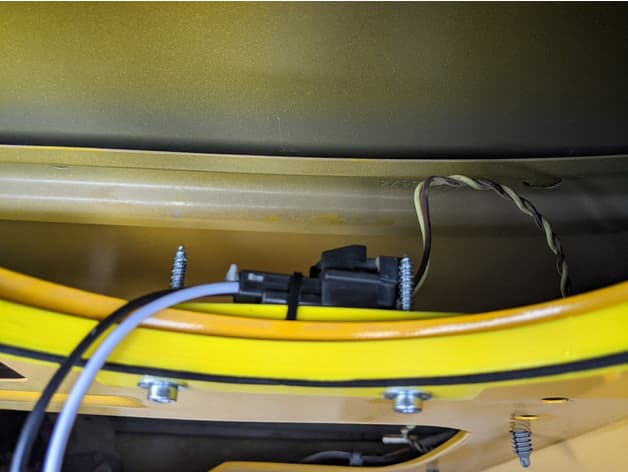

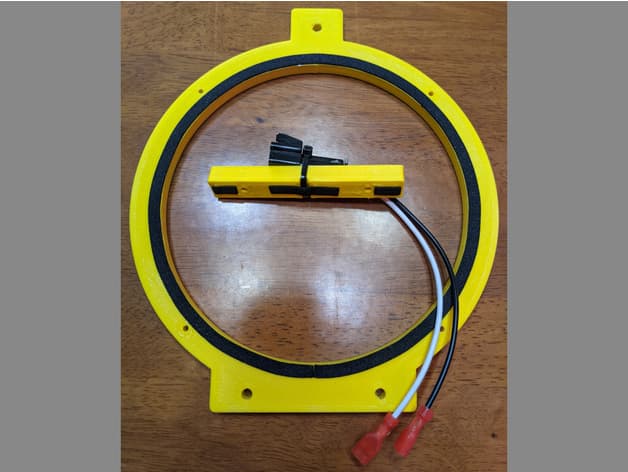

Mounting bracket to mount JBL GTO 629 6.5" Speakers in a 2004 GMC Canyon (or similar year/model). I used two of the JBL provided screws per bracket to mount the bottom of the bracket (optionally along with a #8 washer per screw), and four #6-32 x 1/2" machine screws to mount the speaker to the bracket. An optional small 4" zip-tie can be used to secure the harness to the back block. A foam ring can optionally be added to help seal the speaker to the door panel. The Metra speaker harness is also optional, but allows installation without cutting of the factory connection. The foam tape seen added to the bracket was provided by JBL with the speakers. Bill of Materials: * JBL GTO629 6.5-Inch Speaker (Set of 2): https://smile.amazon.com/JBL-Premium-6-5-Inch-Co-Axial-Speaker/dp/B07S9L5S55 * Speaker Foam Ring (4-pack, 1 needed per speaker): https://smile.amazon.com/dp/B08BZ887WB * Metra 72-4568 Speaker Harness (2-pack, 1 needed per speaker): https://smile.amazon.com/dp/B0002BEUZ8 * 6-32 x 1/2 in. Combo Round Head Zinc Plated Machine Screw (8-Pack, 4 needed per speaker): https://www.homedepot.com/p/6-32-x-1-2-in-Combo-Round-Head-Zinc-Plated-Machine-Screw-8-Pack-803021/204274603 * Zinc #8 Flat Washer (30-Pack, 2 needed per speaker): https://www.homedepot.com/p/Everbilt-8-Zinc-Flat-Washer-30-Pack-802461/204276449
