GMC CarbonPro Tonneau Cover Drill Guide

2 downloads242 views0 quality score

License & use

CC BY

Commercial use allowed

Attribution required

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

Steve Dertien (DERTY_Garage)

Description

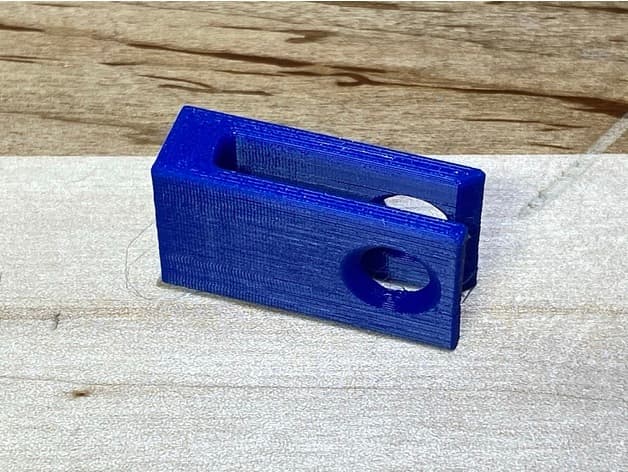

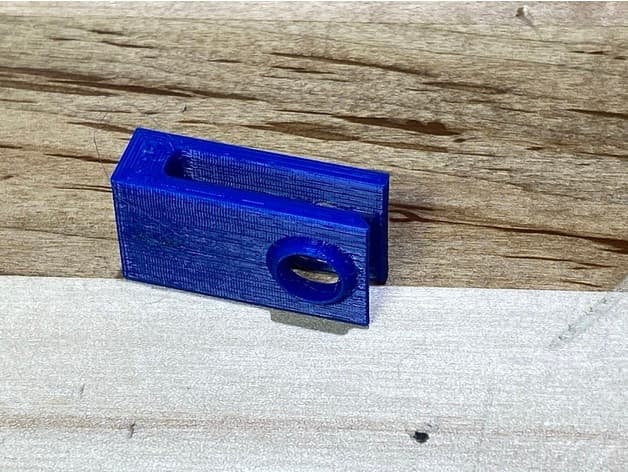

This drill jig is used on GM CarbonPro equipped trucks to locate and drill the hole for mounting a tonneau cover. You'll need a M6 J-Nut insert from Amazon and a corresponding M6-1 flange bolt. - Amazon M6 J-Nut: https://www.amazon.com/gp/product/B00C3MUY9K - Amazon M6-1 Flange Bolt: https://www.amazon.com/gp/product/B0040CWWS2 Along the bed rail under the plastic cap are six locations, 5 require the J-Nut and drilled hole through the bed rail cover. Drill the initial hole with a 1/4" drill. You may want to increase the hole diameter to 5/16" for a little more clearance during installation..
