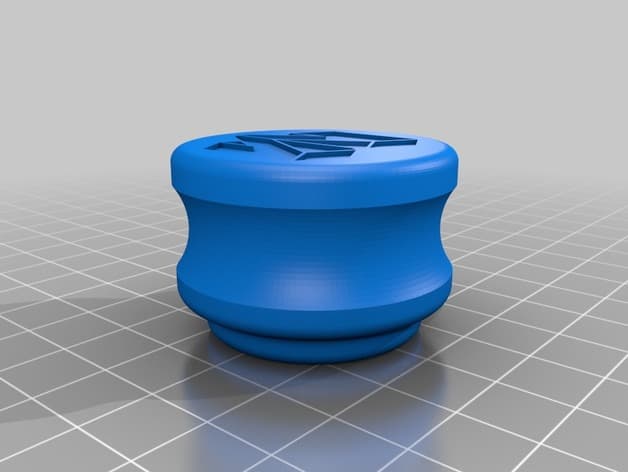

GMC window knob replacement

0 downloads52 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

Source link only

No hosted model files

Material start

PETG or ASA for durability in various temperatures

Saved part guidance

Strength start

20-30% infill for a balance between strength and weight

Saved part guidance

Orientation / supports

supports unlikely, but verify in slicer

Exact totals

Slice for grams + time

Model geometry and final settings determine both

Vehicle exposure

Cabin/interior use; avoid high-heat zones

Download the model at its source, then confirm the format is supported by your slicer. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

Download at source

License & use

CC BY-NC

Link-only

Attribution required

Files stay with the original publisher; this catalog entry does not grant hosting or resale rights. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

My work truck is a 2012 GMC 3500 with a 12' box attached. The knob for the window cranks on these vehicles are of piss-poor design and material. So i fixed it, no thanks to GM. The print is one piece and utilizes a "captive nut" system. I designed it to not need any supports. All you do is print the knob face down (design side down), pause the print after printing the 11.00mm layer, insert the nut (nylon side down) and resume printing. Hardware needed other than printed part: - one of a 5/16" x 1.25" bolt (coarse thread, 18 TPI) - one of a 5/16" flat washer - one of a 5/16" nylon lock nut (coarse thread, 18 TPI) I've used this as a replacement knob in my 2012 GMC and in a coworkers 2006 GMC. I've been told it will fit on any GMC/Chevy van or truck from 2003-2018, if anyone can confirm or refute please leave a comment and I will keep the description updated.
