Hitch Bolt cover 28mm, 2017 Ram 1500, U-Haul hitch

0 downloads56 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

1 hosted model file

STL

Material start

PETG or ASA for durability in outdoor conditions

Saved part guidance

Strength start

50-75% infill for strength and minor flexibility

Saved part guidance

Orientation / supports

verify in slicer

Exact totals

Slice for grams + time

Model geometry and final settings determine both

Vehicle exposure

UV/weather exposure — ASA is the starting point

Open the STL, 3MF, or OBJ model in your slicer before printing. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

License & use

CC BY

Commercial use allowed

Attribution required

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

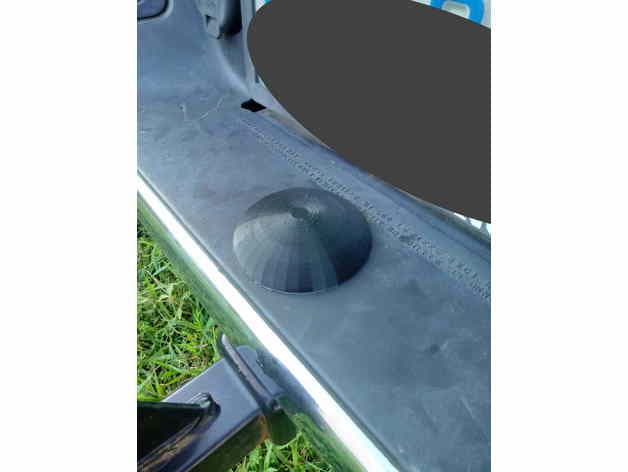

My U-Haul class III / IV 2" hitch which fits a 2017 Ram 1500 came with a rubber 6-sided bolt cover being the bolt protrudes slightly above the bumper. After 1 year this cap came so brittle it fell apart in my hand so I decided to make a replacement. You should be able to scale this to fit any 6 sided bolt as well. Printed at 75 percent infill so if I stepped on it by accident, it might survive. *Note, I had to print at 102 percent, at 100 percent is was the exact size of the bolt (didn't think about that when designing). At 102 percent the cap was a tiny bit loose so I decided instead of gluing it, I put a layer of electrical tape around the bolt to shim it up.*
