Jaguar/Leyland Battery Terminal Cover - image

Files (1)

Terminal_Cover_Smallhole_Positive.STL

STL

506.8 KB

Print guidance estimate

Uses saved filament metadata

Print cost & setup estimate

Saved filament data plus editable planning inputs for cost and time.

1 model file

Recommended kit

50g

Based on 40% main infill across listed model files

Material cost

$1.20

Filament only at roughly $24/kg TPU / other flexible materials

Print time

2.0h saved / 1.4h–2.4h estimate

Uses 70 mm/s, 0.2 mm layers; verify supports in slicer

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Mechanical/Functional

Jaguar/Leyland Battery Terminal Cover

0 downloads219 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

1 hosted model file

STL

Material start

TPU or other flexible materials

Saved part guidance

Strength start

low to medium infill for flexibility

Saved part guidance

Orientation / supports

Likely not needed

Exact totals

50 g · 2 hours

Saved estimate

Vehicle exposure

Flexible material; verify heat and load

Open the STL, 3MF, or OBJ model in your slicer before printing. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

License & use

CC BY

Commercial use allowed

Attribution required

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

Michael Chen

Verified

Description

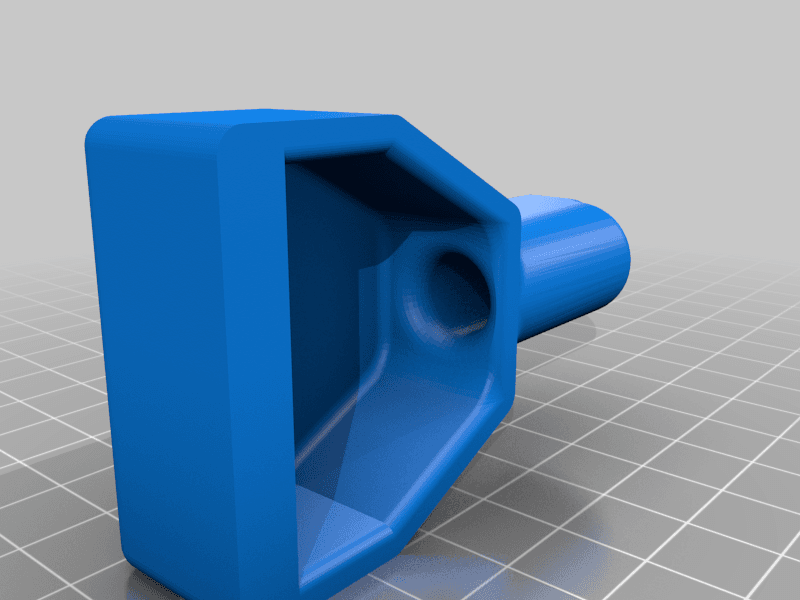

(Print in TPU or other Flexible) This is a positive terminal cover for some 70s-80s British Leyland (Jaguar) Vehicles. This is not the one for the late-80s XJS with the 90-degree battery terminals, these are for the standard straight terminals, like on the Series 2 Jaguar XJ. Included are two files: One with a smaller hole for the cable, which I recommend. The second file has a larger cable hole opening in case you're like me and crimp the cable lug or install the battery terminal before feeding the wire through the terminal cover. The smaller hole file is pretty close to the original in size and should fit standard 4AWG wire fine, use the bigger hole file if you're using something like 2 or 0 AWG. These can be printed standing vertical (cable hole pointing up), or laid down horizontal (cable hole parallel to the ground). You should not need any supports regardless of which way you print it.
