Land Rover Discovery 1 & 2 Cup Holders
Print this part
Use the part context as a starting point, then confirm geometry-dependent values in your slicer.
Files
1 hosted model file
STL
Material start
PETG or ASA for durability in a car environment
Saved part guidance
Strength start
10-20% infill with 3-4 walls for a balance between strength and weight
Saved part guidance
Orientation / supports
supports likely for the base, verify in slicer
Exact totals
Slice for grams + time
Model geometry and final settings determine both
Vehicle exposure
Cabin/interior use; avoid high-heat zones
Open the STL, 3MF, or OBJ model in your slicer before printing. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.
License & use
The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.
Shared by
3DPrintedCarPartDescription

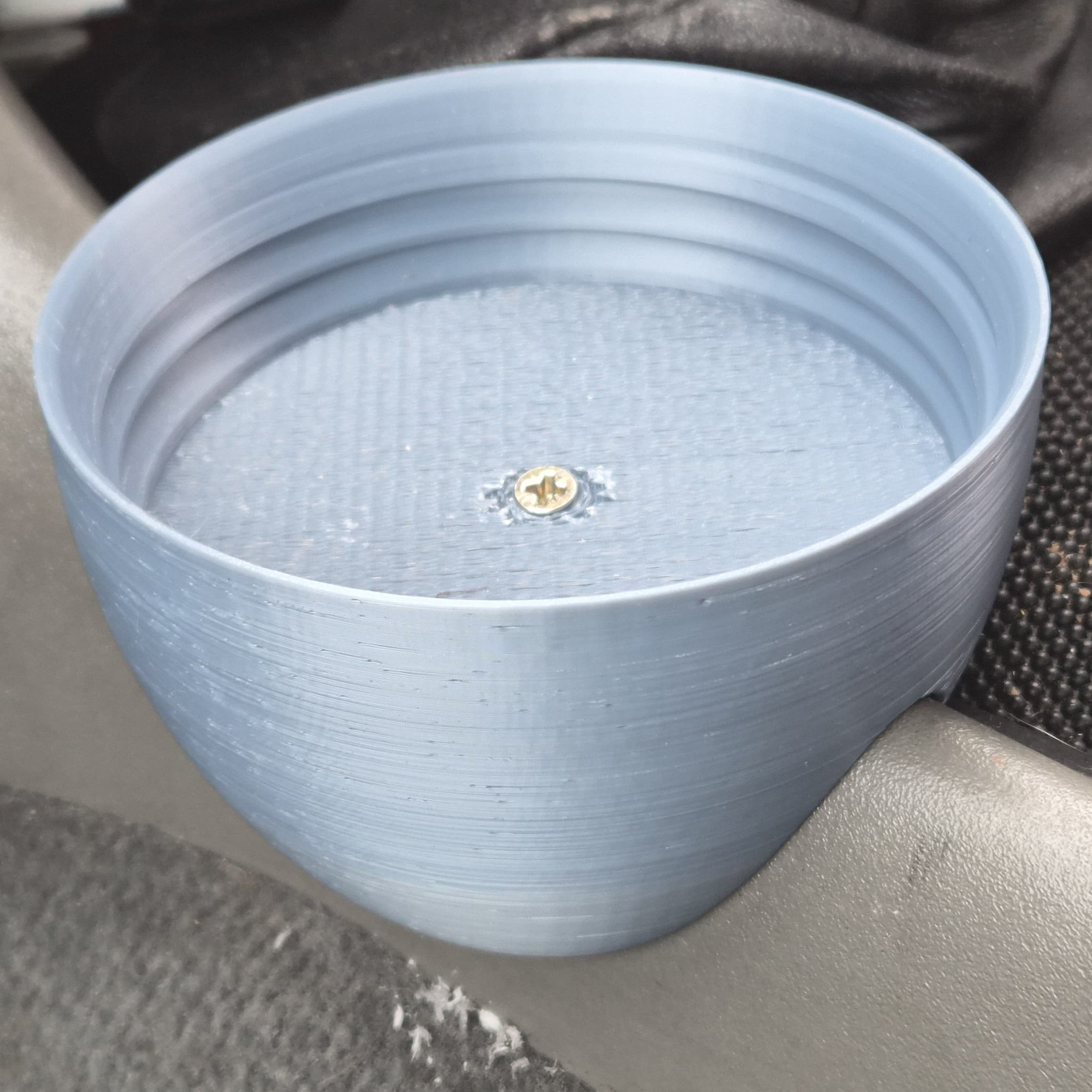

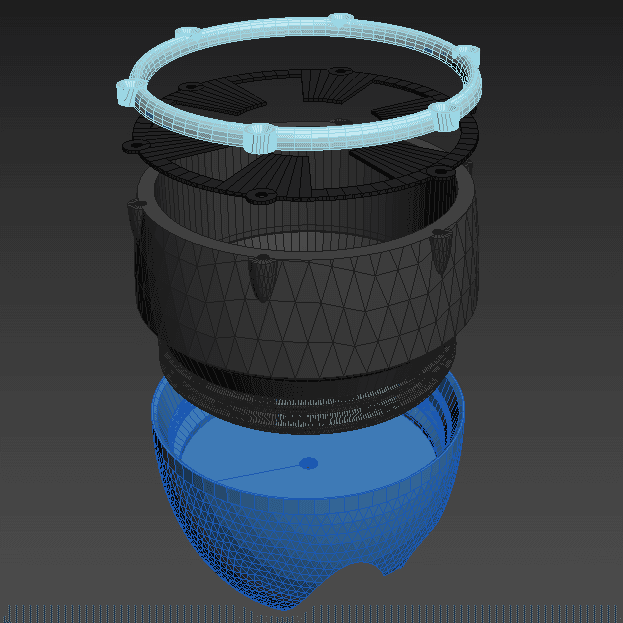

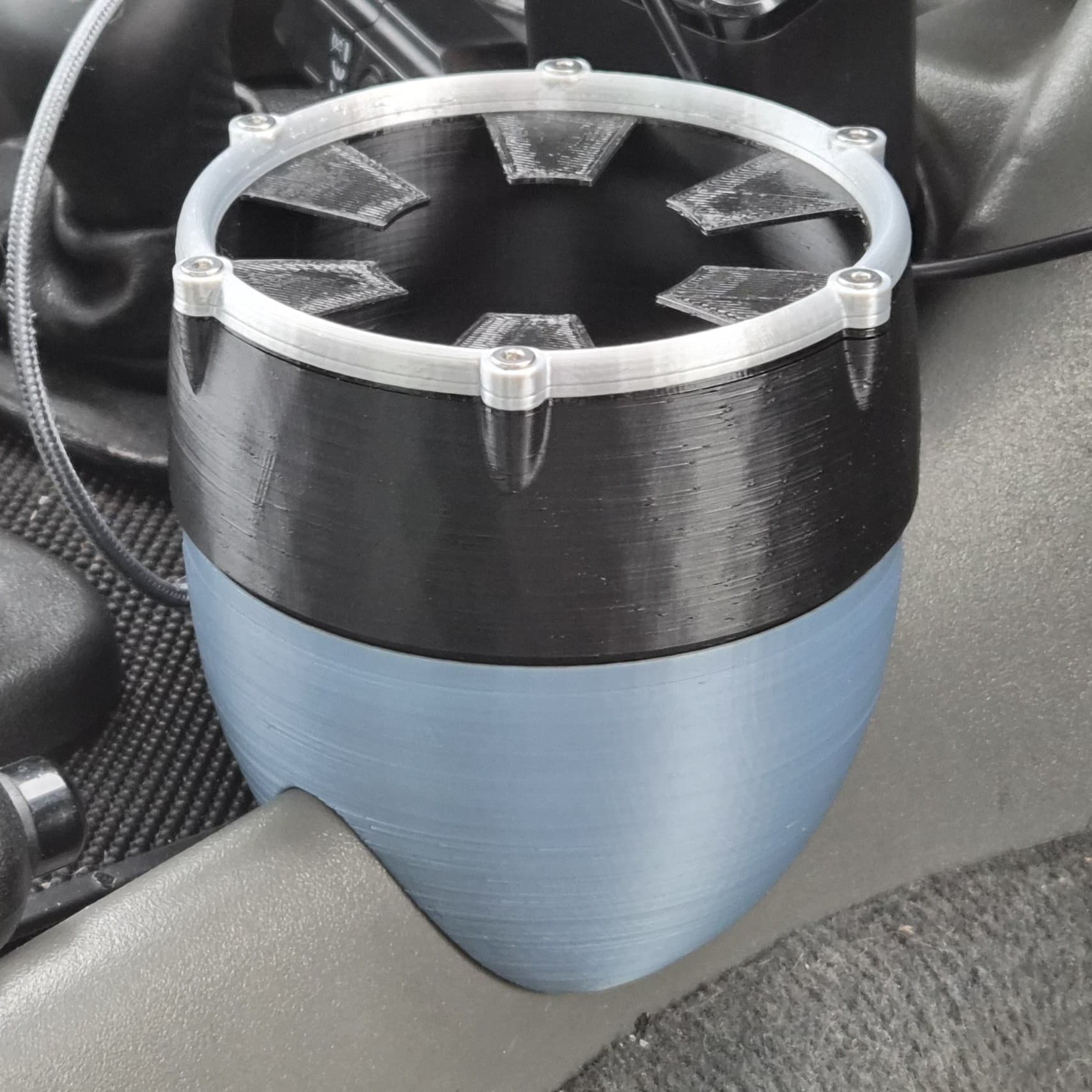

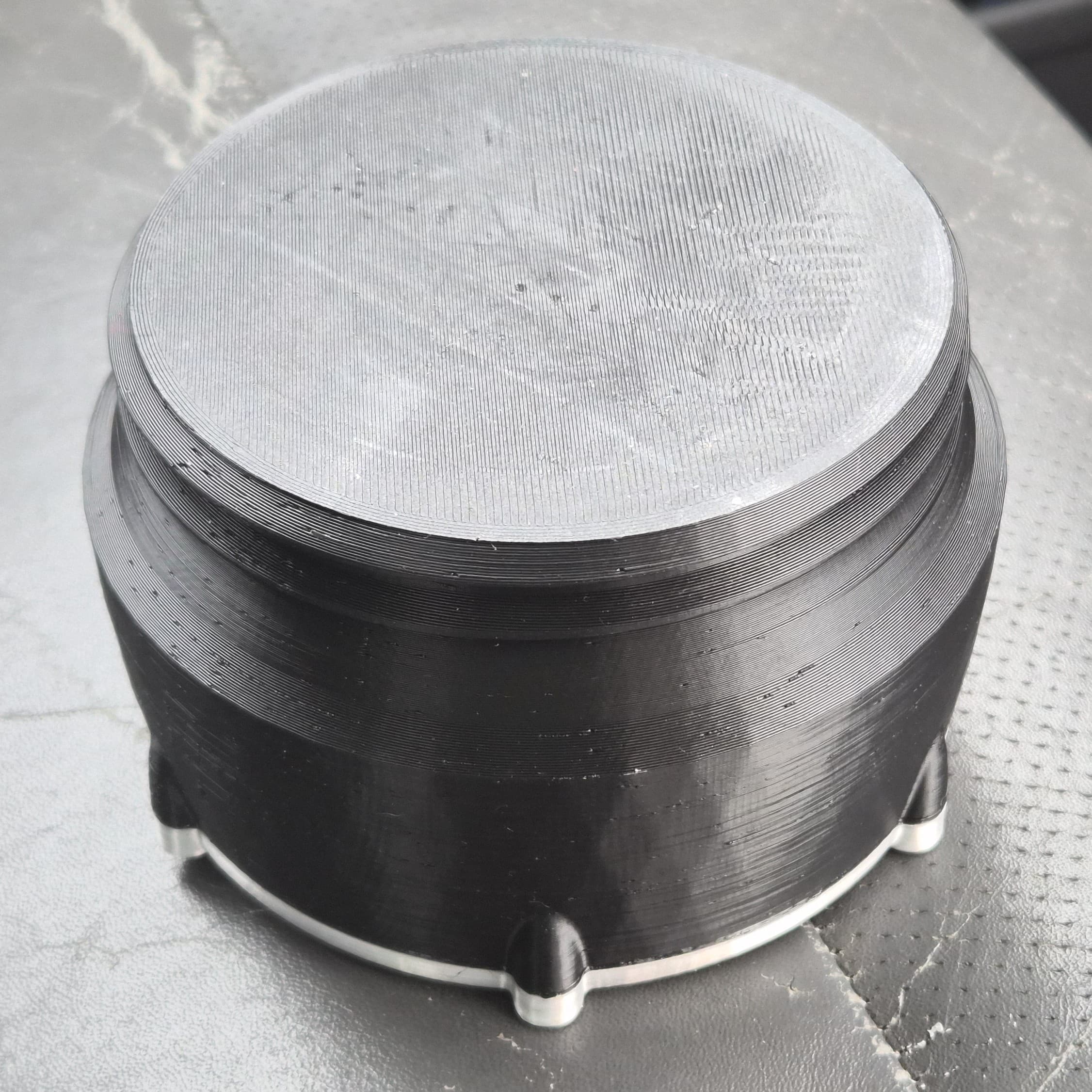

Similar to original cup holders but a completely new design with extra features. I've removed the slot for a handle as this was never used by takeaway cups. Removed the insert to allow for larger cups up to about 80mm diameter TPU spokes keep a cup upright and more secure, even smaller cups Large threaded base screws to the holder to prevent lifting Top ring screwed in position to make the TPU ring replacable I've used countersunk M3 x 7 screws to lock the top ring and TPU in place. I've included an alternative ring that takes M3 x 7 cap head screws if you prefer. The base needs to be printed upside down with supports to the build plate. The remaining parts can all be printed without supports. All parts should load into your slicer orientated correctly. I printed PLA at 10% gyroid infill and 4 walls (with Cura) Rubber ring printed in 95a TPU You will need two small wood screws to attach this the plastic transmission tunnel of the Discovery 1 or 2. The holes should be in the same location as an original cup holder or previous clones.
Compatible Cars
Originally published on printables.com by Pugwash · License: CC BY
