Land Rover 110 Perentie 4x4 RH Switch Panel

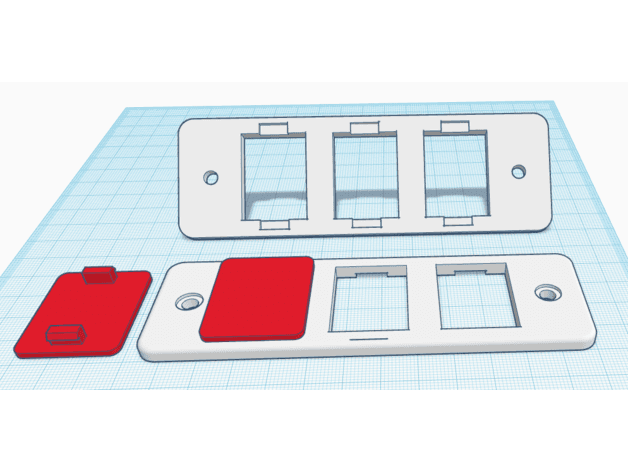

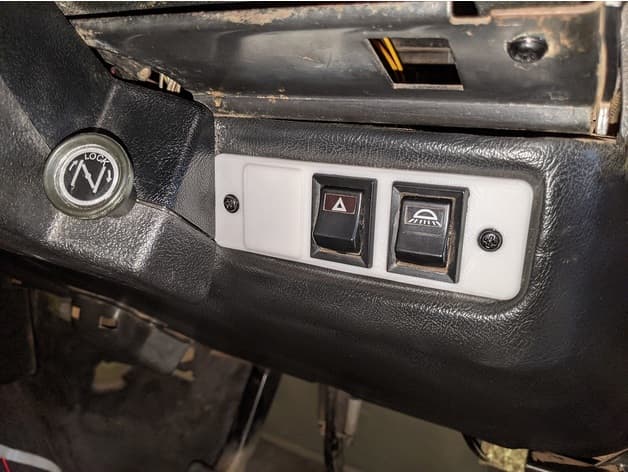

This panel has been designed to accept the cabin light and hazard light switches used in Landrover 110 Perentie 4x4 variants and can be used to replace the existing fascia. The lucas switches used in the Perentie are narrower than the Defender so the panels are not interchangeable. A blanking plate is also included which can be clipped into any of the switch holes that aren't being used. Thanks to stevepage64 who designed the original switch panel that I modified to suit the Perentie 4x4 series. Printing: I printed with 100% infill using a raft and supports although depending on the orientation (see below) the overhang for these models is minimal and they were not really required when testing on an ender 3 Pro. Some support is used for the recessed screw holes The switch panel is best printed face down as the only support required is a small amount for the recessed screw holes which are printed vertically. The blanking plate is best printed face down so the tabs on the back are vertical. PLA was used, however this may degrade over time so ABS might be the better choice for durability and longevity. I used white because that was in the printer, black filament should be used when matching the original part. Printed at 80m/s using eSun PLA+. Nozzle Temp 205 Deg. C / Bed Temp 70 Deg. C.
