Lotus Elise S1 number plate mounts - image

Files (2)

Bracket_model_v2_NS.stl

STL

108.6 KB

Bracket_model_v2_OS.stl

STL

108.6 KB

Print guidance estimate

Estimated from part metadata

Print cost & setup estimate

Planning numbers for filament, cost, time, and setup. Treat them as estimates until you confirm the file in your slicer.

2 model files

Typical selected file

14g

Based on 25% main infill for the largest likely-needed model file

Material cost

$0.33

Filament only at roughly $24/kg PETG / ASA

Print time

23m–39m

Uses 70 mm/s, 0.2 mm layers; verify supports in slicer

STL file	Role	Source size	PETG / ASA 20%	PETG / ASA 25%	100% solid	Recommendation
Bracket_model_v2_NS.stl	Mount / bracket	108.6 KB STL	13g $0.30	14g $0.33	30g $0.72	Use a brim for improved bed adhesion if necessary
Bracket_model_v2_OS.stl	Mount / bracket	108.6 KB STL	13g $0.30	14g $0.33	30g $0.72	Use a brim for improved bed adhesion if necessary

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Exterior

Lotus Elise S1 number plate mounts

0 downloads130 views0 likes

Shared by

Alfred

Verified

Description

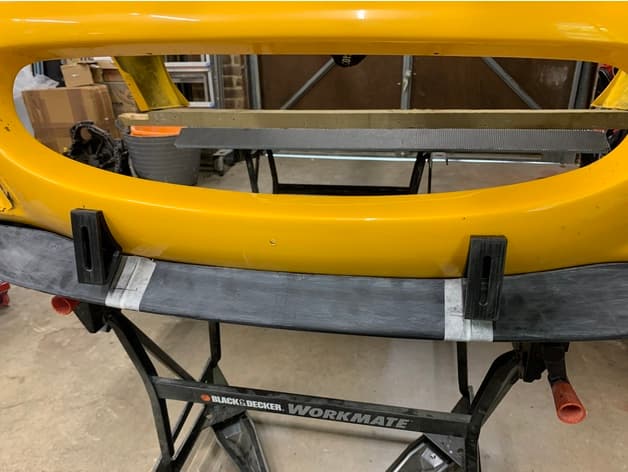

Designed as a lighterweight alternative to the full width number plate plinth, can utilise the existing top plinth mount holes and fixings, or drill your own, or stick on with pU adhesive. Front faces are perpendicular to centreline of the car when about 370mm apart. Left and and right hand version to make the pair. Features: Lightweight - saving 100-odd grammes over standard Allows fitment of standard UK number plate with a front splitter Vertical adjustment of plate for levelling in situ Drain holes to prevent water build-up in the shell Two mounting holes, the top one works in the pre-drilled standard plinth holes Can be permanently fixed using PU adhesive. Printing: standard quality profile in Cura - 0.2mm. I print with a brim but you may get away without depending on your personal bed adhesion strategy. Support is needed for the holes/slots. Infill 25% for strength, skin thickness 0.8mm. Support infill at 20%, print weight of around 31g each. Optionally rub down after printing to take gloss off print and reduce visible layering.
