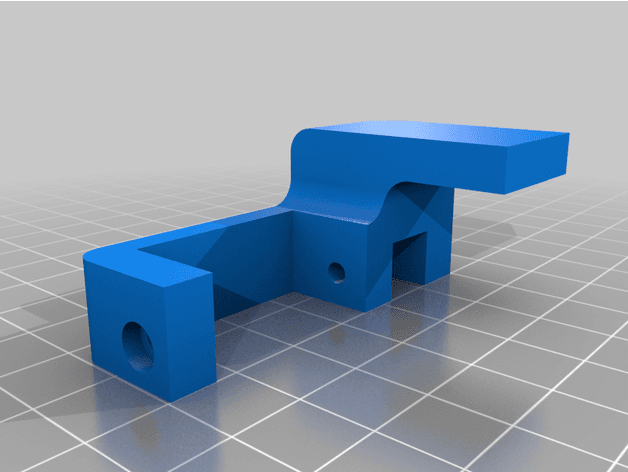

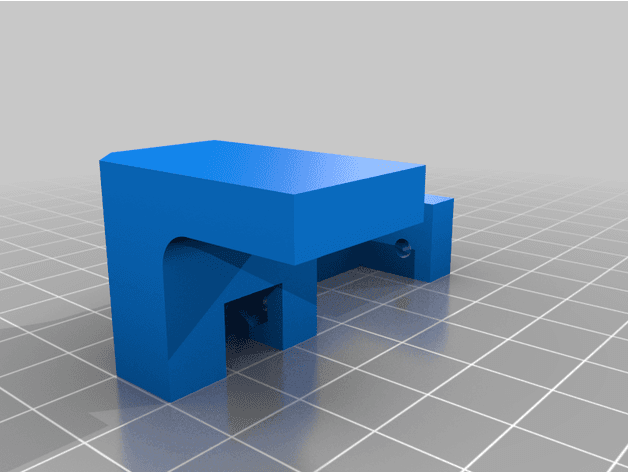

Lower LCD brackets for Dodge Charger 8.4" screen

0 downloads67 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

Source link only

No hosted model files

Material start

PETG or ASA

Saved part guidance

Strength start

20-50% infill for a balance between weight and durability

Saved part guidance

Orientation / supports

verify in slicer

Exact totals

Slice for grams + time

Model geometry and final settings determine both

Vehicle exposure

Cabin/interior use; avoid high-heat zones

Download the model at its source, then confirm the format is supported by your slicer. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

Download at source

License & use

CC BY-NC-SA

Link-only

Attribution required

Files stay with the original publisher; this catalog entry does not grant hosting or resale rights. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

I made this to mount the early 8.4" screen (2011 -2014) to a 2015 or later cluster bezel. I used M3 screws and nuts, though its been awhile so I don't remember the length. I printed this using petg and 100% infill. I changed the design a bit from the picture to make it a bit more sturdy. Slight variations in mounting the bracket to the cluster bezel may put the top holes in the wrong positions so I left the top bracket solid. You will need to drill the holes to mount the brackets to the lcd.
