Interior

Mazda CX5 Armrest latch mod

6 downloads89 views0 quality score

Print this part

Check the available model and saved setup details before opening your slicer.

Files

1 hosted model file

STL

Material

PETG or ASA for durability in interior conditions

Print time

Slice to calculate

Filament

Slice to calculate

Supports

verify in slicer

Infill

20-30% infill for a balance between strength and weight

Difficulty

Not rated — inspect geometry

Vehicle heat

Cabin/interior use; avoid high-heat zones

Open the STL, 3MF, or OBJ model in your slicer before printing. Confirm orientation, supports, print time, filament use, and printer compatibility. Test-fit before installing it in a vehicle.

License & use

CC BY

Commercial use allowed

Attribution required

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

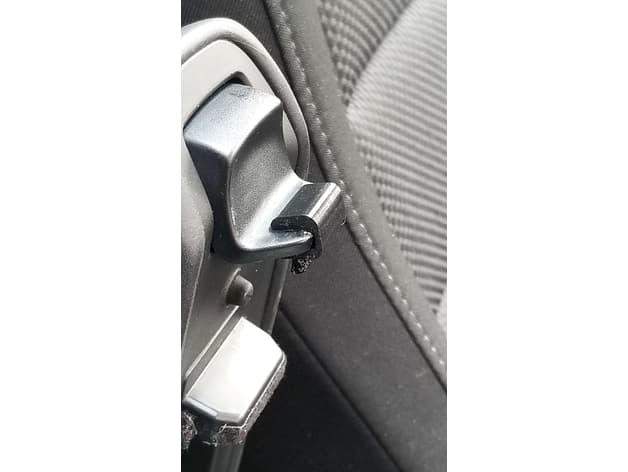

The armrest latch is flimsy and looks like it will keep breaking unless design is changed. I made an adaptor that is more robust and should not break. Print with support touch plate. I used epoxy to attach it to the original latch. This is nothing fancy but a quick fix. I ground off the old left over material on the latch to slide this one over. You can get new one from dealers. Here is video talking about the problem. https://www.youtube.com/watch?v=MxinjN7_mhc
