Mechanical Keypad
Files (5)
Reference shelf
Recommended filament for this print
Product references matched to the published material guidance. Confirm diameter, heat resistance, colour, and printer compatibility.
| Referenced item | What to verify | Price & availability |
|---|---|---|
| PETG filamentAmazon · Affiliate link | Amazon product page for 1.75 mm PETG; confirm colour, spool size, print temperature, seller, and delivery region. | Check price at Amazon |
| ASA filamentAmazon · Affiliate link | Amazon product page for 1.75 mm ASA; use an enclosure and suitable ventilation, and confirm seller and regional availability. | Check price at Amazon |
Affiliate disclosure: if you buy through an eligible link, 3DPrintedCarPart may earn a commission at no extra cost to you. As an Amazon Associate I earn from qualifying purchases. Confirm product specifications, compatibility, seller terms, and vehicle safety before ordering or using anything. Amazon may redirect you to a nearby supported store; otherwise the original Amazon.com page remains available.
License & use
The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.
Shared by
Michael ChenDescription

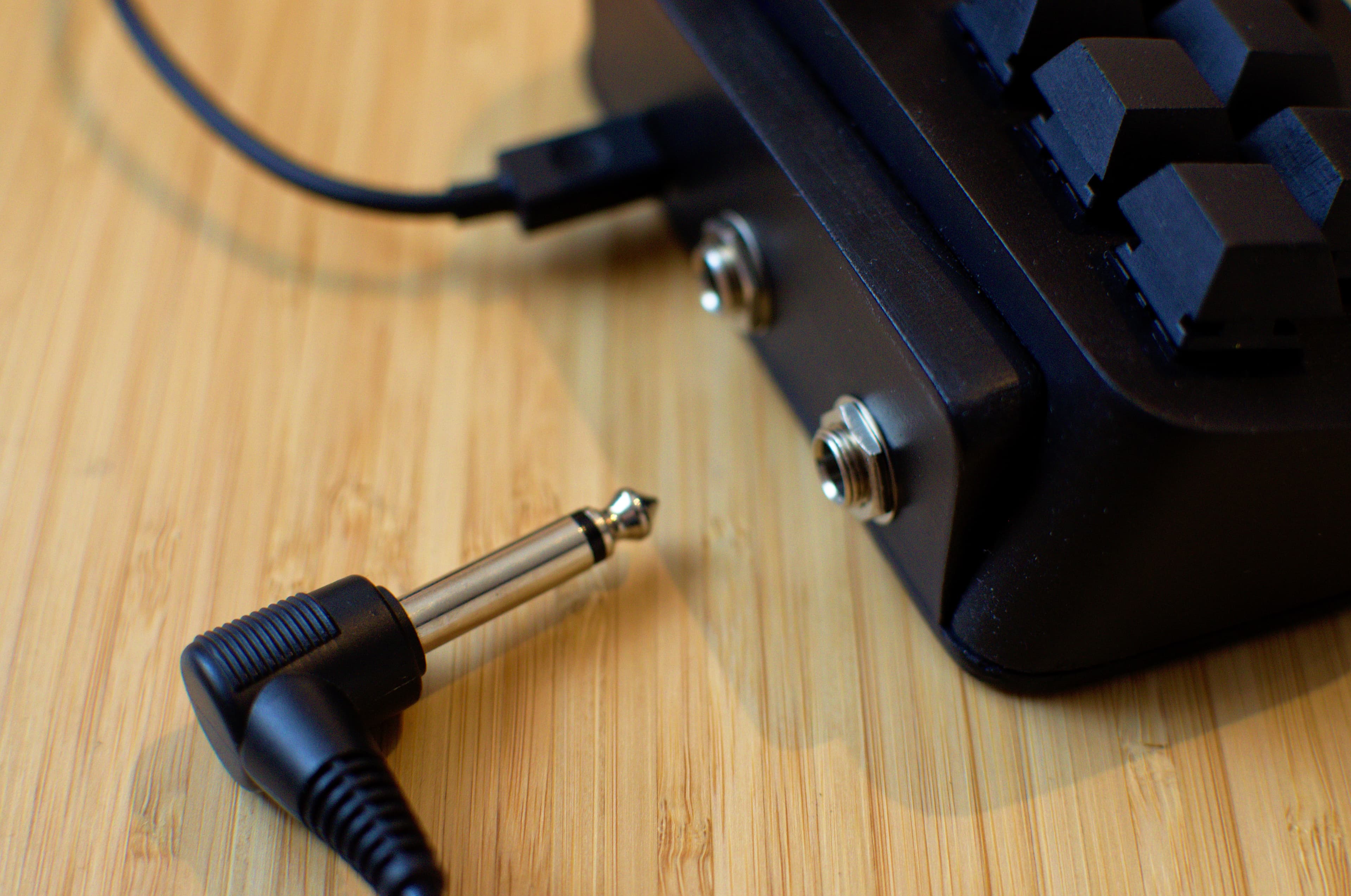

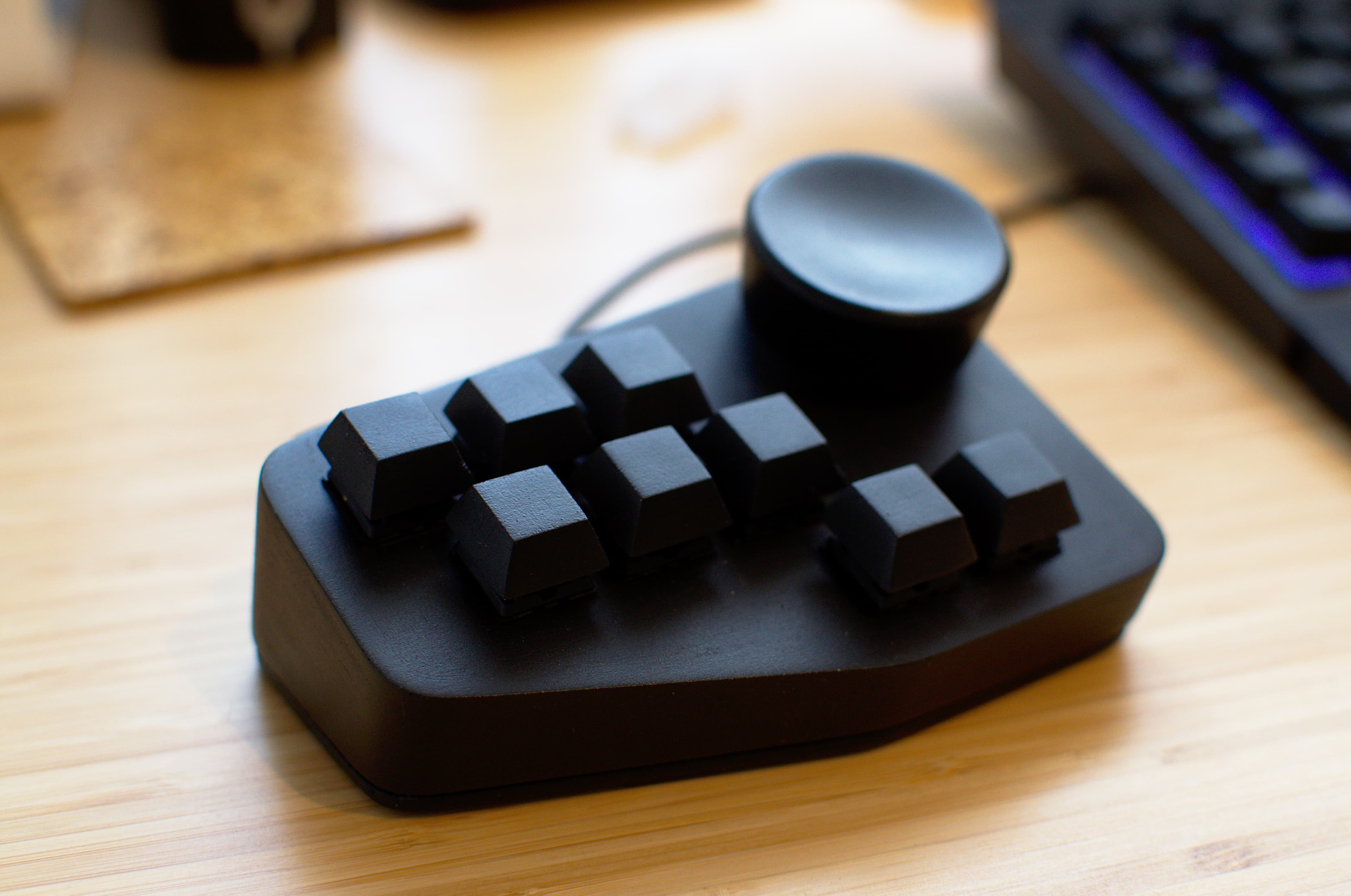

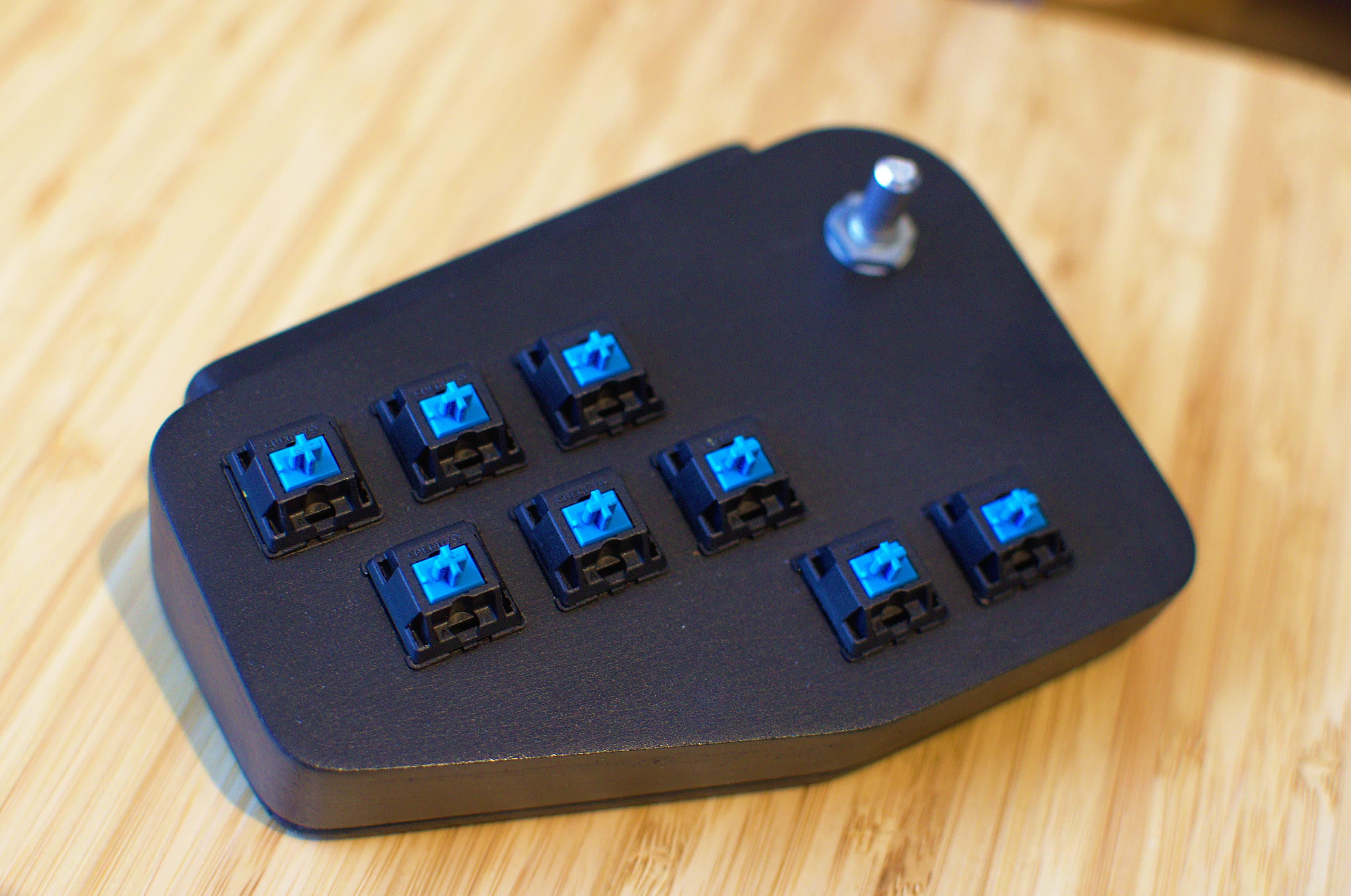

This custom keypad was designed to house an Arduino Micro, 8 mechanical keyboard switches and a rotary encoder. Two 6.3 mm headphone jacks at the back can be used to attach footswitches or expression/volume pedals. At the bottom, there are recesses for 5 rubber feet (diameter: 8 mm). The included keycaps fit standard MX mechanical switches, and the used rotary encoder has a diameter of 6 mm. I have created an additional frame to hold the Arduino in place if the latches of the bottom part are too instable and break off. Example code for the Arduino: https://github.com/mmohn/ArduinoKeypad Painting of the 3D printed parts All visible surfaces including those of the keycaps were sanded and spray-painted (primer + matte black paint + clear coat).
Originally published on thingiverse.com · License: CC BY
