Mk6 Ford Fiesta Underbody Brake and Fuel Line retaining clips - image

Files (1)

WQ_Underbody_Fuel_and_Brake_Line_Clip_v0.1-ASSEMBLY.stl

STL

4.9 MB

Print plan

Exact totals not supplied

Print setup plan

Useful setup guidance without pretending STL byte size can predict filament, cost, or print time.

1 model file

Material plan

PETG / ASA

Published material guidance; still check heat, UV, load, and printer compatibility.

Starting setup

25% infill

A planning starting point only; wall count, orientation, and geometry often matter more than infill.

Final totals

Confirm in slicer

Slice the selected model with your final material, orientation, walls, and supports.

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Reference shelf

Recommended filament for this print

Product references matched to the published material guidance. Confirm diameter, heat resistance, colour, and printer compatibility.

Referenced item	What to verify	Price & availability
PETG filamentAmazon · Affiliate link	Amazon product page for 1.75 mm PETG; confirm colour, spool size, print temperature, seller, and delivery region.	Check price at Amazon
ASA filamentAmazon · Affiliate link	Amazon product page for 1.75 mm ASA; use an enclosure and suitable ventilation, and confirm seller and regional availability.	Check price at Amazon

Affiliate disclosure: if you buy through an eligible link, 3DPrintedCarPart may earn a commission at no extra cost to you. As an Amazon Associate I earn from qualifying purchases. Confirm product specifications, compatibility, seller terms, and vehicle safety before ordering or using anything. Amazon may redirect you to a nearby supported store; otherwise the original Amazon.com page remains available.

Unsure which one fits? Read the automotive filament guide.

Mechanical/Functional

Mk6 Ford Fiesta Underbody Brake and Fuel Line retaining clips

0 downloads50 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

1 hosted model file

STL

Material start

PETG or ASA for heat and chemical resistance

Saved part guidance

Strength start

20-30% infill for strength and flexibility

Saved part guidance

Orientation / supports

verify in slicer

Exact totals

Slice for grams + time

Model geometry and final settings determine both

Vehicle exposure

Engine-bay exposure — use rated material or OEM

Open the STL, 3MF, or OBJ model in your slicer before printing. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

License & use

CC BY

Commercial use allowed

Attribution required

Safety/IP review

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

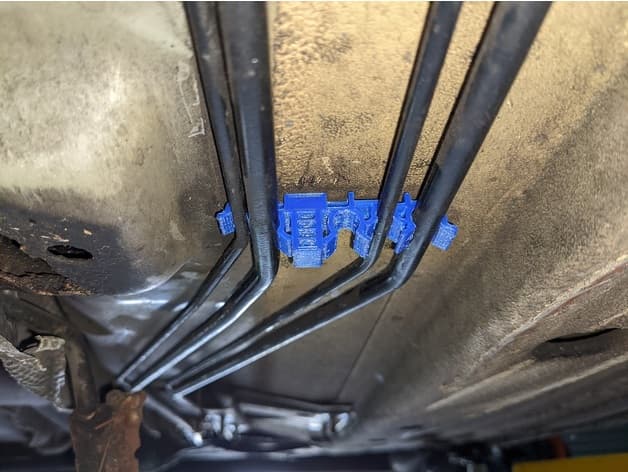

This part was developed using FreeCAD. It is a redrawn approximation of the original piece. The reason for it being CAD drawn rather than scanned, is that I have a project car, and am one day intending to replace the fuel line with AN lines, so would like to draw up a custom clip that still works with the Carbon breather line and brake lines in the future. I noticed that there's an unused clip in the Australian XR4/ST150, so this is likely to work with other models like the 1.6 or the diesels with the return line to the tank. Printing the clip in PLA it is probably a bit too brittle and inflexible for the lines to be inserted. I would recommend PETG at least. Hopefully that will also make it tolerate the underbody heat from the exhaust. Whilst I can confirm it fits, I have not actually run this on a road car for any length of time yet. https://www.youtube.com/watch?v=wI4_CF4Yb40
