MX5 AC Delete HVAC Pipe and bungs

2 downloads266 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

5 hosted model files

STL

Material start

PETG or ASA

Saved part guidance

Strength start

medium to high infill for durability

Saved part guidance

Orientation / supports

verify in slicer

Exact totals

Slice for grams + time

Model geometry and final settings determine both

Vehicle exposure

Engine-bay exposure — use rated material or OEM

Open the STL, 3MF, or OBJ model in your slicer before printing. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

License & use

CC BY

Commercial use allowed

Attribution required

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

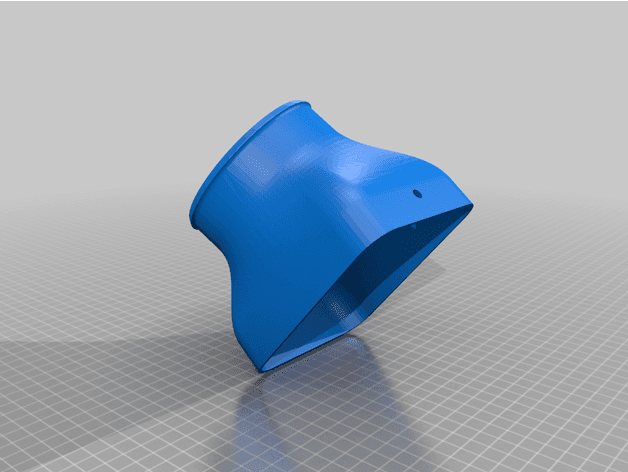

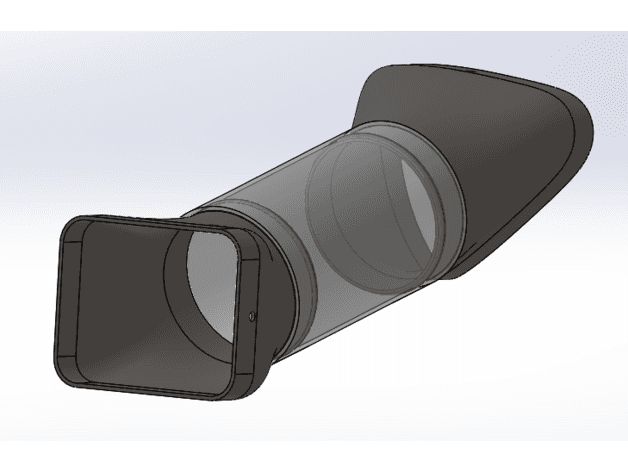

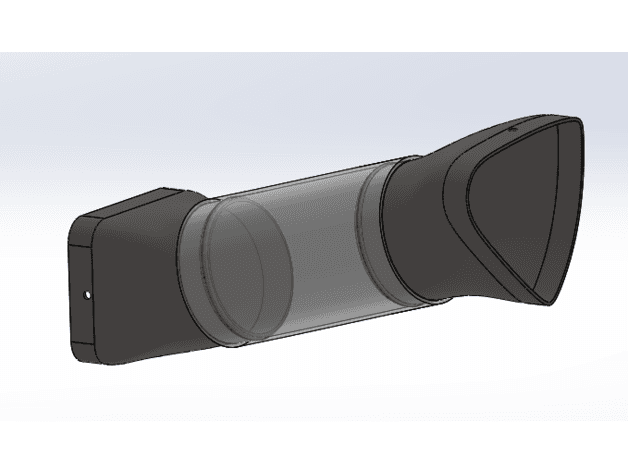

Part of removing the crumbling AC system from a 1995 NA MX5 involves removing the evaporator box from behind the dash. You can buy a replacement part to connect up the blower housing to the heater core, but where is the fun in that? This is a work in progress as only designed the ducting, I am yet to print and test fit the parts. Edit 22/04/2022, Uploaded the CAD models of the Ducts but I am yet to print them, so no idea if they fit or not. I have also draw up some bungs to plug the holes left by removing the box. One of them is for the box drain pipe, secured by a cable tie. And the other 2 push into the rubber grommets in the firewall. This is for the RHD version of the car, I believe (but cannot confirm) it is different for the LHD version. I have printed the Bungs in PetG due to close proximity to hot engine parts.
