Files (3)

Miata_arm_rest_back_half.stl

STL

2.2 MB

Miata_arm_rest_front_half.stl

STL

1.2 MB

Miata_arm_rest_peg.stl

STL

746.4 KB

Print plan

Exact totals not supplied

Print setup plan

Useful setup guidance without pretending STL byte size can predict filament, cost, or print time.

3 model files

Material plan

ABS / ASA

Published material guidance; still check heat, UV, load, and printer compatibility.

Starting setup

25% infill

A planning starting point only; wall count, orientation, and geometry often matter more than infill.

Final totals

Confirm in slicer

Choose the needed variant, then slice it for grams, cost, and print time.

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Reference shelf

Recommended filament for this print

Product references matched to the published material guidance. Confirm diameter, heat resistance, colour, and printer compatibility.

Referenced item	What to verify	Price & availability
ASA filamentAmazon · Affiliate link	Amazon product page for 1.75 mm ASA; use an enclosure and suitable ventilation, and confirm seller and regional availability.	Check price at Amazon
ABS filamentAmazon · Affiliate link	Amazon product page for 1.75 mm ABS; use an enclosure and suitable ventilation, and verify temperature requirements and seller.	Check price at Amazon

Affiliate disclosure: if you buy through an eligible link, 3DPrintedCarPart may earn a commission at no extra cost to you. As an Amazon Associate I earn from qualifying purchases. Confirm product specifications, compatibility, seller terms, and vehicle safety before ordering or using anything. Amazon may redirect you to a nearby supported store; otherwise the original Amazon.com page remains available.

Unsure which one fits? Read the automotive filament guide.

Center Console

NA Miata Armrest

0 downloads76 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

3 hosted model files

STL

Material start

ABS or ASA for heat resistance

Saved part guidance

Strength start

20-30% infill for durability, with 2-3 perimeter walls

Saved part guidance

Orientation / supports

verify in slicer

Exact totals

Slice for grams + time

Model geometry and final settings determine both

Vehicle exposure

Higher-heat material; verify location and load

Open the STL, 3MF, or OBJ model in your slicer before printing. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

License & use

CC BY

Commercial use allowed

Attribution required

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

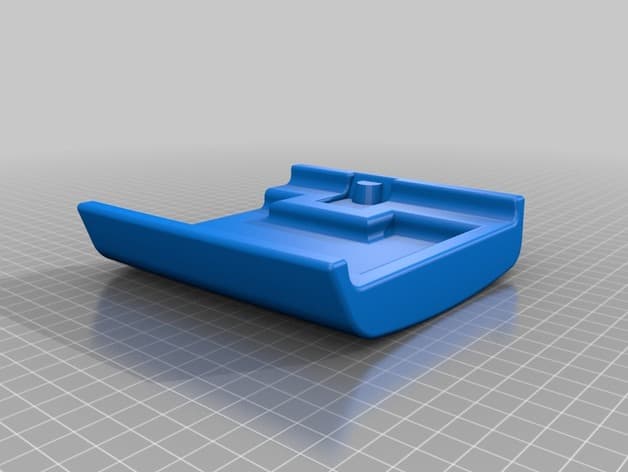

This is a replacement armrest for the center console portion of an NA Mazda Miata. Mine cracked so I designed this to take its place. I never got it fully printed before I unfortunately had to let the Miata go. The fitment should be correct as both halves were printed and set in the car but never fully mounted together with the pegs. It is split into 2 pieces in order to fit my print bed on a Wanhao Duplicator I3. I was going to fit it together with the pegs and glue to two halves once fitment was verified. I printed each half standing straight up with the split facing down onto the bed. I printed with supports. I recommend ABS as I'm not sure PLA or PETG would stand up to sitting in the heat of the sun in the car. Good luck! I hope it fits. If it needs some tweaking just let me know and I can provide my model files. This was designed in Fusion 360.
