NA/NB Miata Telescoping A/C Vent

0 downloads176 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

5 hosted model files

STL

Material start

PETG or ASA for better heat resistance

Saved part guidance

Strength start

100% infill for the Pushrod, and 20-50% for other parts

Saved part guidance

Orientation / supports

Likely not needed

Exact totals

50 g · 2 hours

Saved estimate

Vehicle exposure

Cabin/interior use; avoid high-heat zones

Open the STL, 3MF, or OBJ model in your slicer before printing. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

License & use

CC BY

Commercial use allowed

Attribution required

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

Michael Chen

Verified

Description

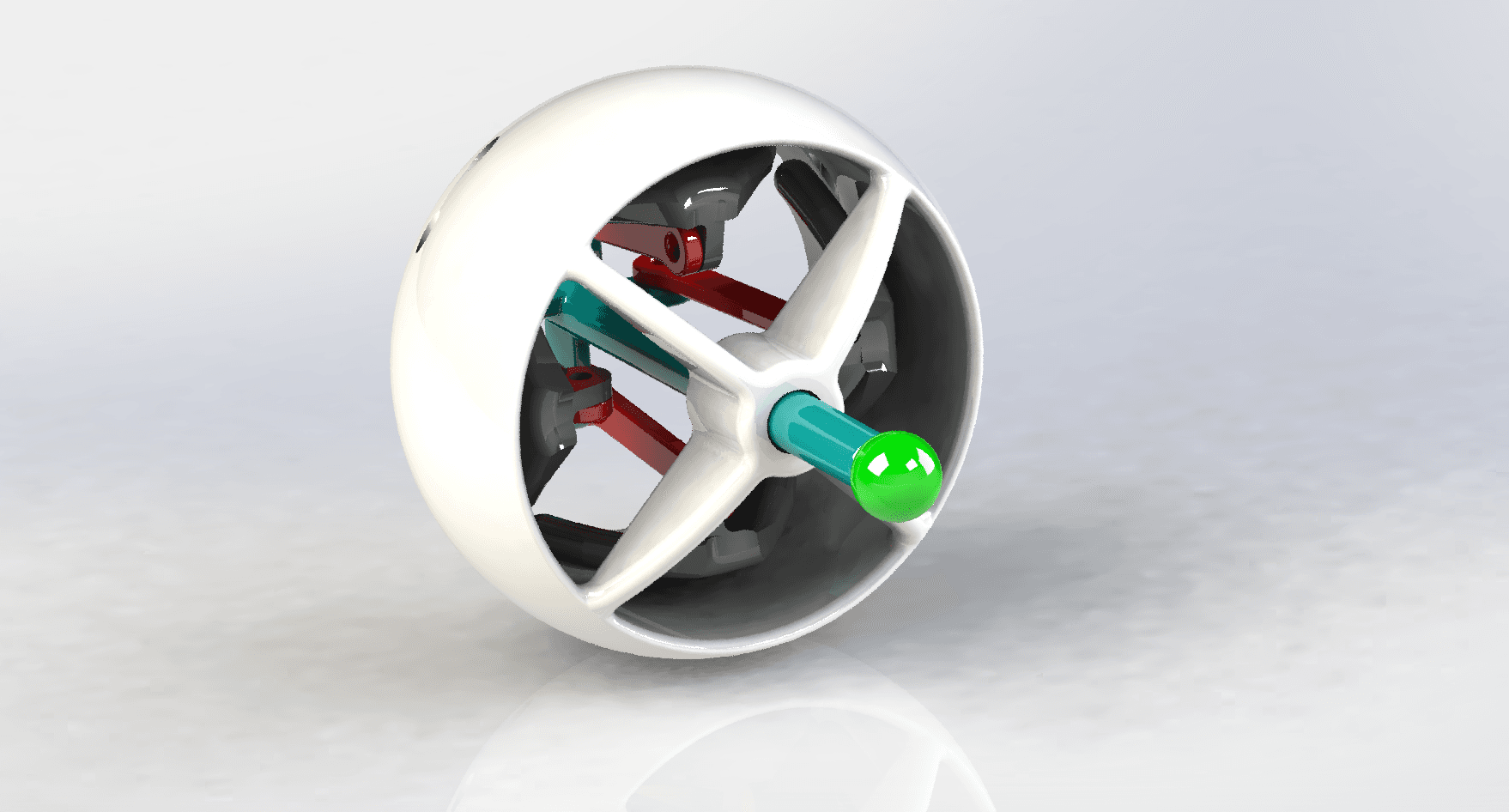

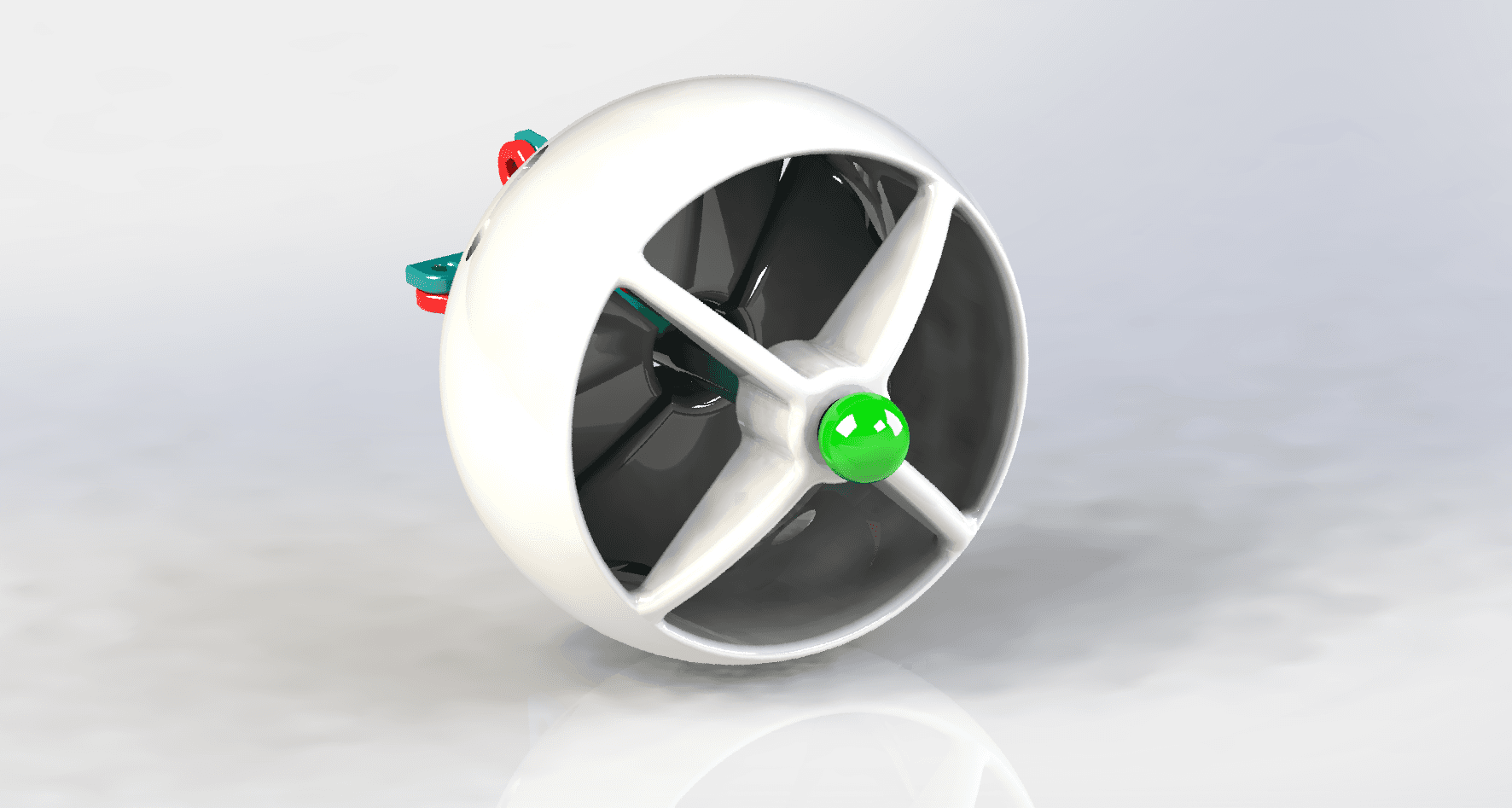

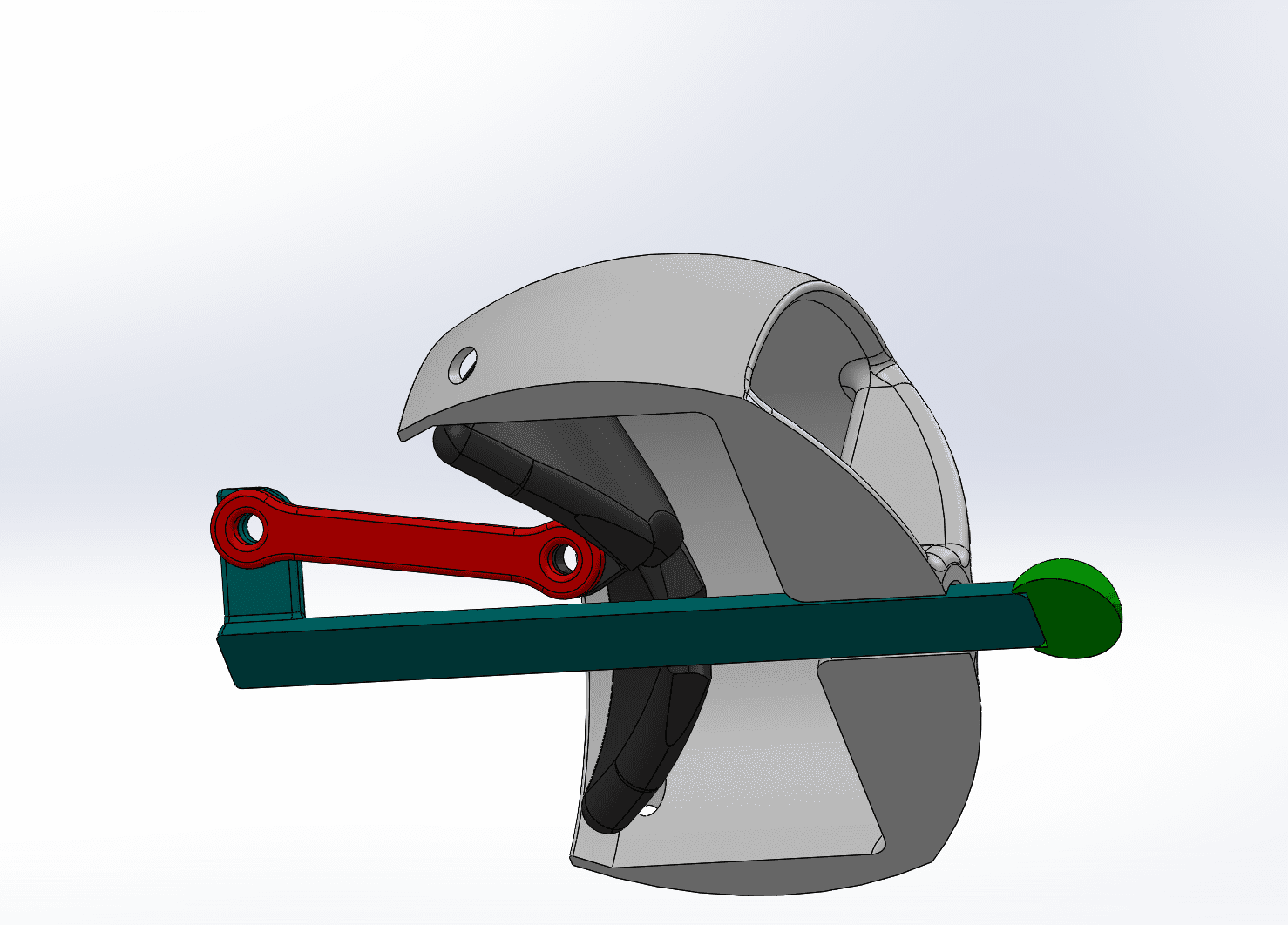

This is a telescopic A/C vent for NA or NB Mazda Miatas it will replace the eyeball in the stock A/C vents. All parts were modelled in Solidworks. I was tired of having vents that couldn't be closed when they weren't in use, so I decided to make new ones. If you have an NA, I recommend that you do NOT reinstall the two top screws of the tombstone - because these are printed, they are not strong enough for you to remove the entire assembly from the tombstone. I tried this and ended up breaking the shell piece. Now, I just leave the top two screws out of the tombstone so it can be removed if need be. Print this with ABS. I tested the parts with PLA, and they warped when I put the car's heat on. They would get even hotter if you left the car out in the sun. To make one vent, you will need to print: 1 x Pushrod (I recommend 100% infill for this part - poor layer adhesion makes it very fragile).
