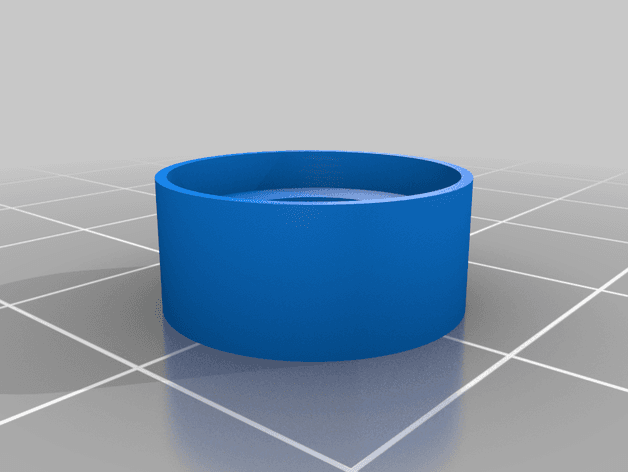

Nissan CA/RB Timing Belt Cover Washer/Grommet - image

Files (1)

Nissan_RB_Cam_Belt_Cover_Washers.stl

STL

128.5 KB

Print plan

Exact totals not supplied

Print setup plan

Useful setup guidance without pretending STL byte size can predict filament, cost, or print time.

1 model file

Material plan

TPU (like NinjaTek Cheetah)

Published material guidance; still check heat, UV, load, and printer compatibility.

Starting setup

90% infill

A planning starting point only; wall count, orientation, and geometry often matter more than infill.

Final totals

Confirm in slicer

Slice the selected model with your final material, orientation, walls, and supports.

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Mechanical/Functional

Nissan CA/RB Timing Belt Cover Washer/Grommet

0 downloads60 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

1 hosted model file

STL

Material start

TPU (like NinjaTek Cheetah) for its flexibility and durability

Saved part guidance

Strength start

High infill (80-100%) for strength and minimal flexibility loss

Saved part guidance

Orientation / supports

verify in slicer

Exact totals

Slice for grams + time

Model geometry and final settings determine both

Vehicle exposure

Engine-bay exposure — use rated material or OEM

Open the STL, 3MF, or OBJ model in your slicer before printing. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

License & use

CC BY

Commercial use allowed

Attribution required

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

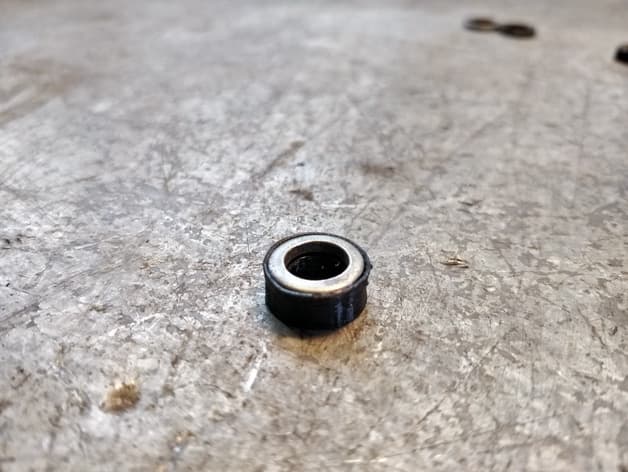

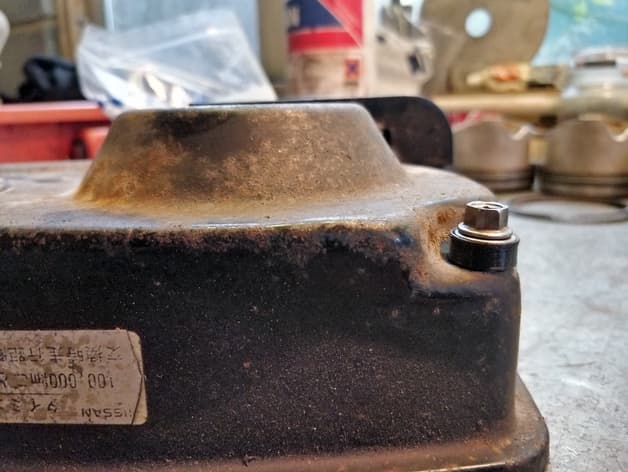

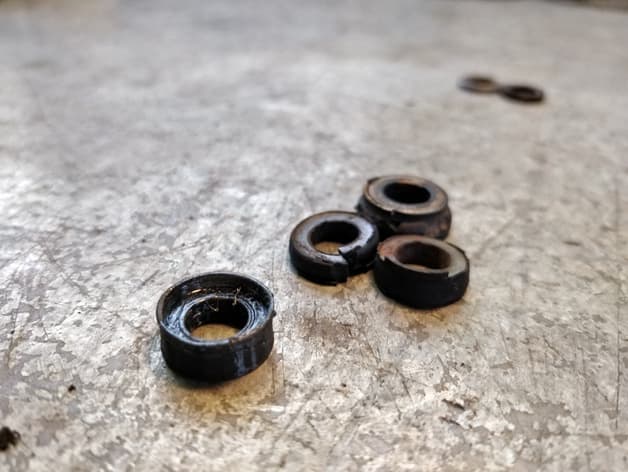

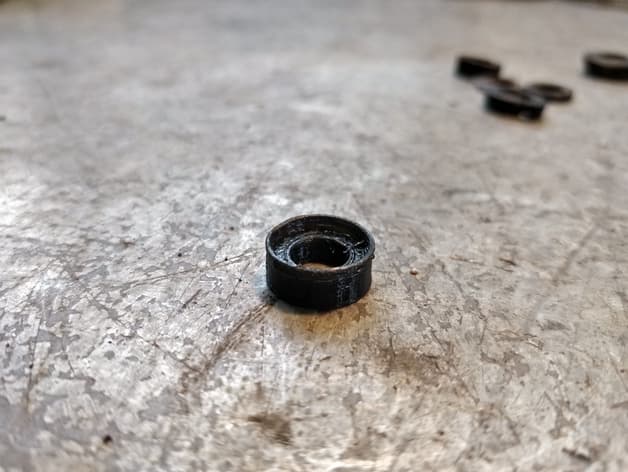

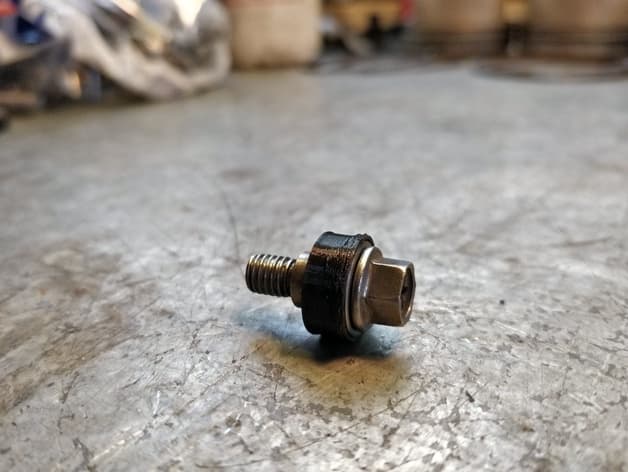

This is a replacement rubber washer/grommet for the timing belt cover on a Nissan RB25 engine. From looking online it seems that it will also work for the CA18, RB20, RB26, VG30 engines too. I found that the OEM rubber grommet/washers had become hard and some had broken when removing them. Remove the old metal washer from the original parts, clean up and insert into the printed items. I printed this in TPU (NinjaTek Cheetah).
