Nissan Leaf Battery Pack Terminal Cover

0 downloads78 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

3 hosted model files

STL

Material start

PETG or ASA for durability and heat resistance

Saved part guidance

Strength start

20-30% infill for strength and moderate weight

Saved part guidance

Orientation / supports

verify in slicer

Exact totals

Slice for grams + time

Model geometry and final settings determine both

Vehicle exposure

Cabin/interior use; avoid high-heat zones

Open the STL, 3MF, or OBJ model in your slicer before printing. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

License & use

CC BY

Commercial use allowed

Attribution required

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

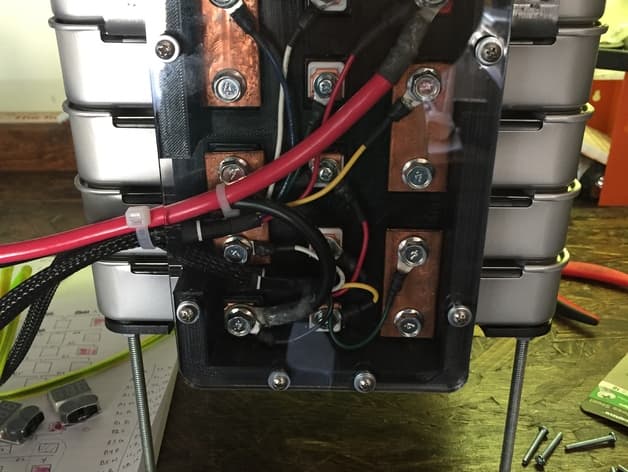

This is a set of files for creating a terminal cover for a custom, 5-pack Nissan Leaf battery. We used this terminal cover for our PPPRS battery for the 2016 Race in Detroit. The posted files include mods that I would have preferred while I was designing the piece. If you would like the original files as shown in the images, download the.zip file. These components are a mix between 3D printed and laser cut parts: 1. Bottom (3D Printed): Bracket with captive nuts (6/32) that slides over the battery terminals and is held via friction, battery terminal latches and copper interconnects. 2. Middle (3D Printed or Laser Cut): Spacer piece between the bottom and top. 3. Top (Laser Cut): ~1/4" clear acrylic cover *EDIT* I added a bottom-middle combo piece that may be printed as a single piece as opposed to the 2 separate bottom and middle pieces.
