Nissan Leaf Gen2 battery terminal and cover

0 downloads68 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

10 hosted model files

STL

Material start

PETG

Saved part guidance

Strength start

15% infill, 1-2 outer layers for durability

Saved part guidance

Orientation / supports

verify in slicer

Exact totals

Slice for grams + time

Model geometry and final settings determine both

Vehicle exposure

Cabin/interior use; avoid high-heat zones

Open the STL, 3MF, or OBJ model in your slicer before printing. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

License & use

CC BY

Commercial use allowed

Attribution required

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

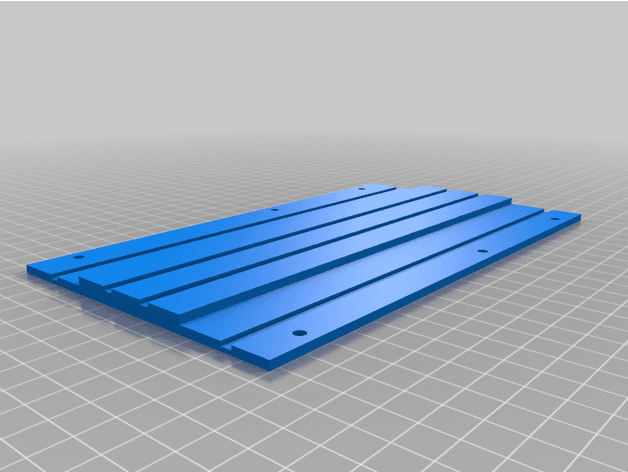

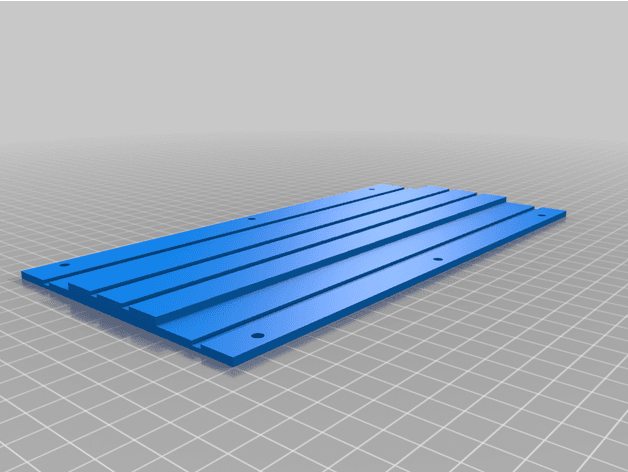

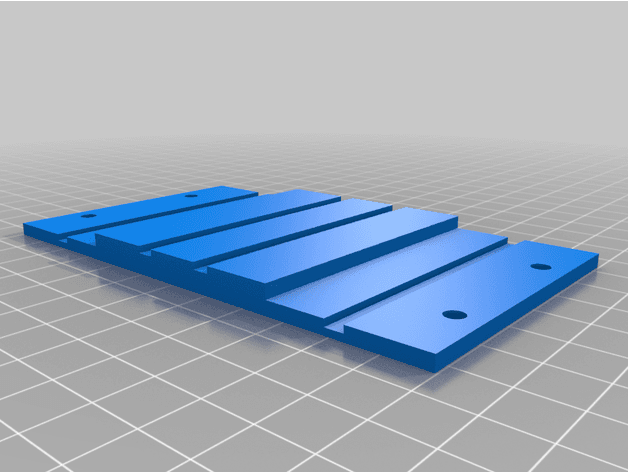

Make you own PV storage battery from Nissan Leaf Gen2 cells. Battery terminal brackets for Nissan Leaf Gen2 cells. 4 different terminal blocks for arranging your cells and bus bars, open or closed Spacers for the cells from which you removed the metal brackets with the screws Covers for 2-6-7 cells End plate template to watercut/laser metal And 2 drill templates for 15mm and 20mm bus bars to drill the holes terminal brackets are are remix of https://www.thingiverse.com/thing:3577120 Printed in Pet-G, 0.4 or 0.8mm nozzle, 1-2 outer layers for a 0.8mm nozzle, 15% infill.
