Porsche Macan EV Center Armrest Tray - image

Files (3)

base_tray.stl
STL
13.6 KB
kleenex_passthrough.stl
STL
44.2 KB
honeycomb.stl
STL
83.1 KB
Print guidance estimate
Uses saved filament metadata
Print cost & setup estimate
Saved filament data plus editable planning inputs for cost and time.
3 model files
Recommended kit
50g

Based on 25% main infill across listed model files

Material cost
$1.20

Filament only at roughly $24/kg PETG / ASA

Print time
2.0h saved / 1.4h–2.4h estimate

Uses 70 mm/s, 0.2 mm layers; verify supports in slicer

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Reference shelf

Recommended filament for this print

Product references matched to the published material guidance. Confirm diameter, heat resistance, colour, and printer compatibility.

Referenced itemWhat to verifyPrice & availability
PETG filamentAmazon · Affiliate linkAmazon product page for 1.75 mm PETG; confirm colour, spool size, print temperature, seller, and delivery region.Check price at Amazon
ASA filamentAmazon · Affiliate linkAmazon product page for 1.75 mm ASA; use an enclosure and suitable ventilation, and confirm seller and regional availability.Check price at Amazon

Affiliate disclosure: if you buy through an eligible link, 3DPrintedCarPart may earn a commission at no extra cost to you. As an Amazon Associate I earn from qualifying purchases. Confirm product specifications, compatibility, seller terms, and vehicle safety before ordering or using anything. Amazon may redirect you to a nearby supported store; otherwise the original Amazon.com page remains available.

Unsure which one fits? Read the automotive filament guide.

Interior

Porsche Macan EV Center Armrest Tray

1 downloads261 views0 quality score

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

3 hosted model files

STL

Material start

PETG or ASA

Saved part guidance

Strength start

20-30% infill for durability and light weight

Saved part guidance

Orientation / supports

Likely not needed

Exact totals

50 g · 2 hours

Saved estimate

Vehicle exposure

Cabin/interior use; avoid high-heat zones

Open the STL, 3MF, or OBJ model in your slicer before printing. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

0

License & use

CC BY
Commercial use allowed
Attribution required
Safety/IP review

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

MC

Shared by

Michael Chen
Verified

Description

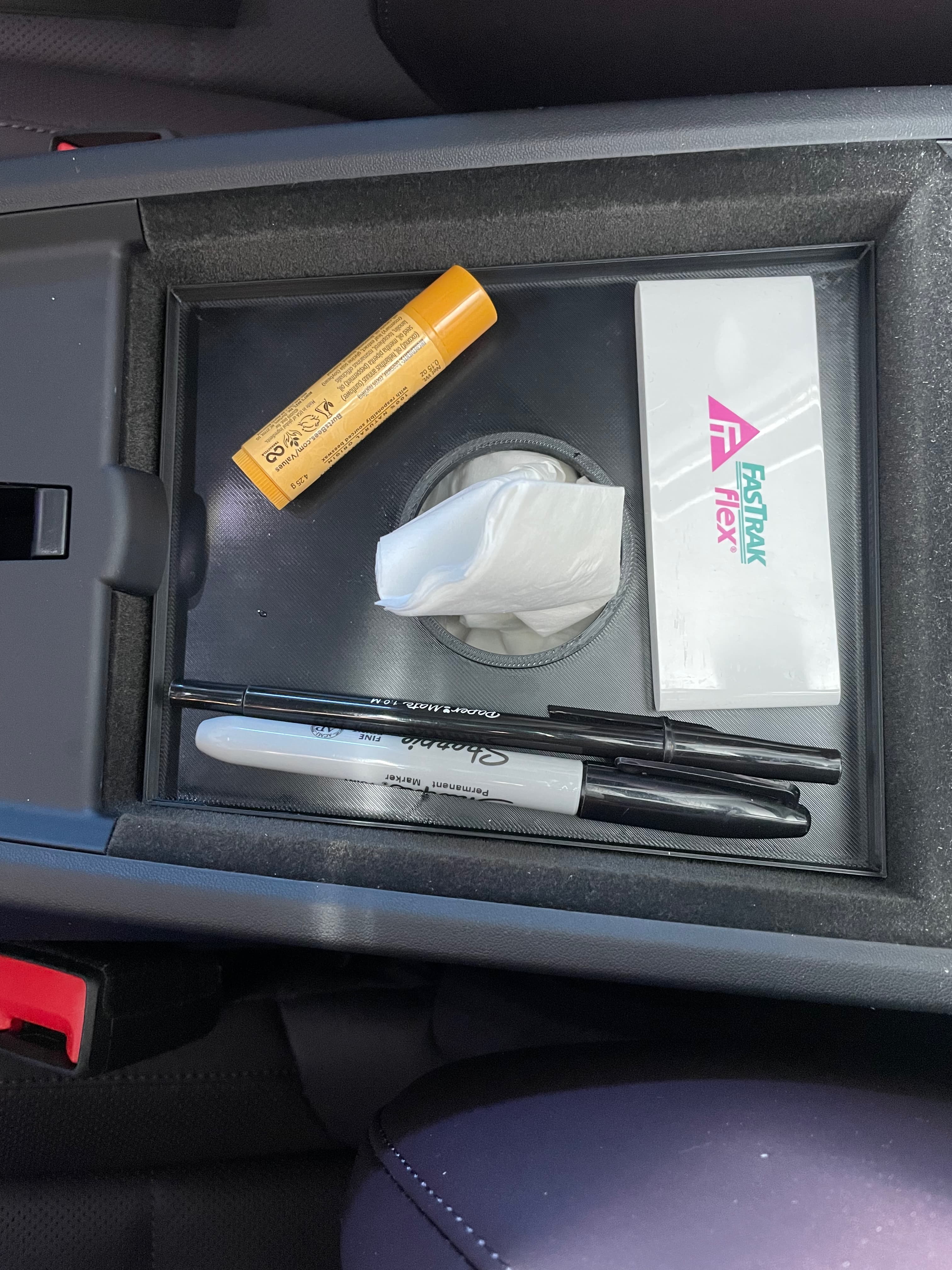

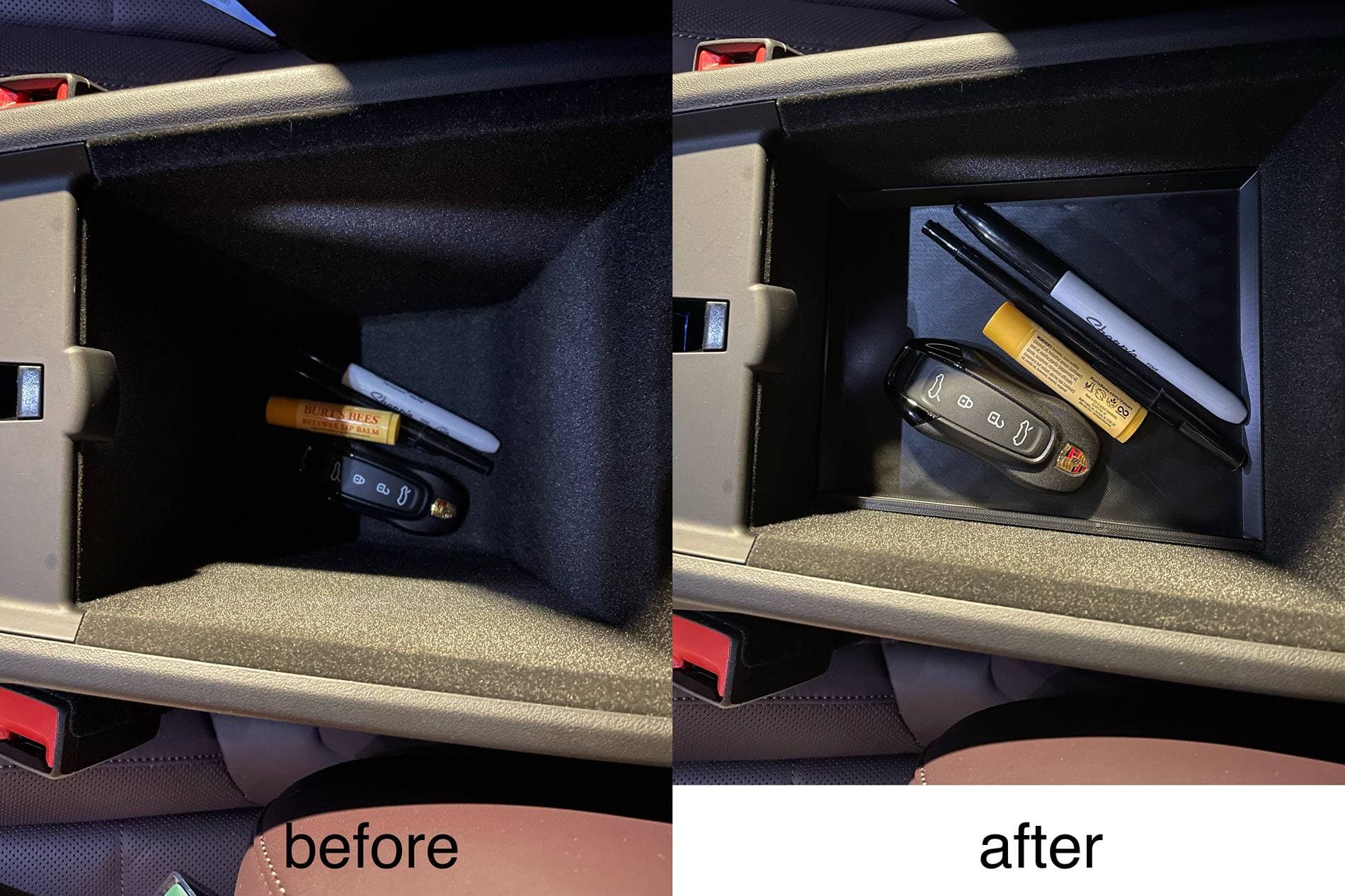

I want to share a slight modification I made to the center armrest storage area for the Porsche Macan EV. I only put little knick-knacks in there like my work badge or car wash coupons, but since the storage is really deep (7 inches to be precise), it feels unnatural to reach so far down for my items. Additionally, I felt like a lot of the volume in the storage space goes to waste because unless I'm putting something that is 7 inches inside, the top portion is just empty air. I came up with a simple tray design. I noticed the storage area is narrower at the bottom, so the idea is for the tray to take advantage of that narrowing and create a shape that can be held in place by friction. Installing this tray will allow for a second level of storage as well as putting my knick-knacks within easier reach. When installed the tray will sit just above 5 inches from the bottom, allowing for you a cubed Kleenex box to fit underneath. I got this idea from Tesla, which has a 2-level storage system for the center armrest (although the implementation is a bit different). I've included a few different designs for this tray, based on feedback I received from the Macan EV forum members.

Compatible Cars

Published Mar 8, 2026Updated Aug 9, 2026

Originally published on thingiverse.com · License: CC BY
