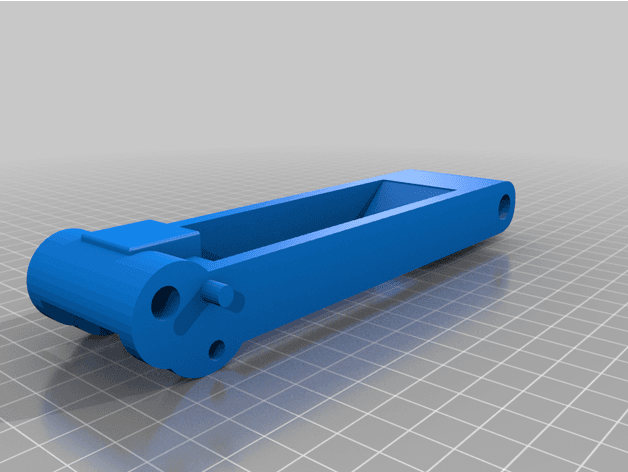

Ram 1500 - Soft Tonneau Bed Cover Latch

0 downloads68 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

1 hosted model file

STL

Material start

PETG or ASA

Saved part guidance

Strength start

20-30% infill with 2-3 walls for durability

Saved part guidance

Orientation / supports

verify in slicer

Exact totals

Slice for grams + time

Model geometry and final settings determine both

Vehicle exposure

Cabin/interior use; avoid high-heat zones

Open the STL, 3MF, or OBJ model in your slicer before printing. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

License & use

CC BY

Commercial use allowed

Attribution required

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

The soft tonneau cover on my 2015 Ram 1500 Rambox pickup was missing one of the hold-down latches and I was having a hard time sourcing a replacement. The closest thing I could find wasn't a guaranteed match and was over $60. I decided to have a go at designing my own. I was able to open, and through the help of YouTube tuorials, figure out pretty easily how to create a decent replacement latch for my cover. Note that you'll still have to fashion the metal rod portion of the latch yourself and insert it into the appropriate holes in this latch handle. I used one of the wire frames used to hold up political and real estate signs.
