Ram 1500 Truck Dash Switch Mount

0 downloads70 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

Source link only

No hosted model files

Material start

ABS or ASA for heat resistance

Saved part guidance

Strength start

High infill (80-100%) for strength and durability

Saved part guidance

Orientation / supports

supports likely, verify in slicer

Exact totals

Slice for grams + time

Model geometry and final settings determine both

Vehicle exposure

Windshield/dash heat — validate after a parked-car soak

Download the model at its source, then confirm the format is supported by your slicer. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

Download at source

License & use

CC BY-NC-SA

Link-only

Attribution required

Files stay with the original publisher; this catalog entry does not grant hosting or resale rights. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

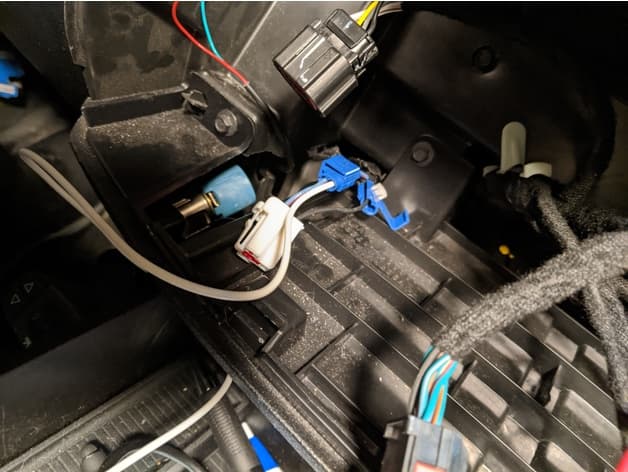

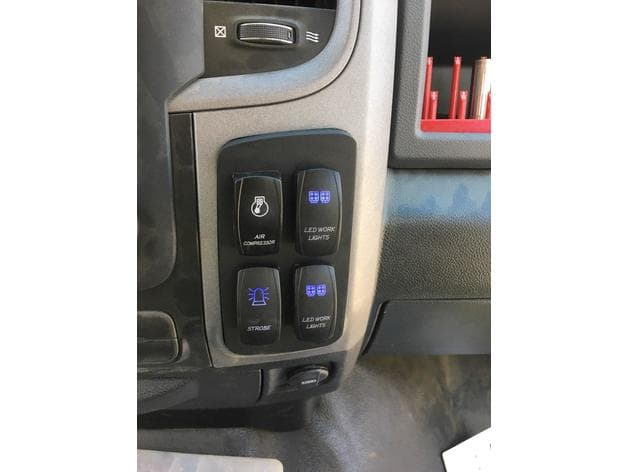

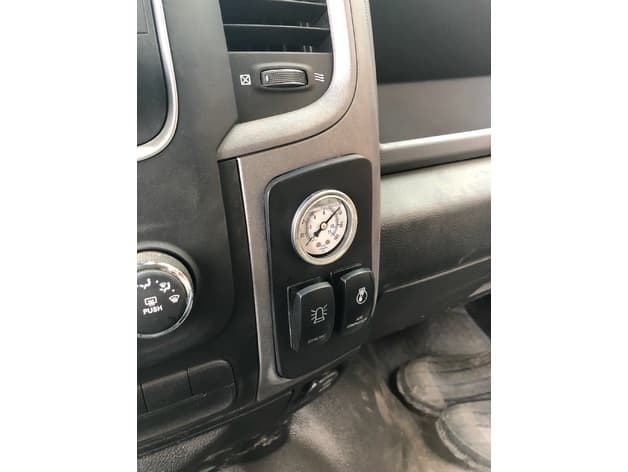

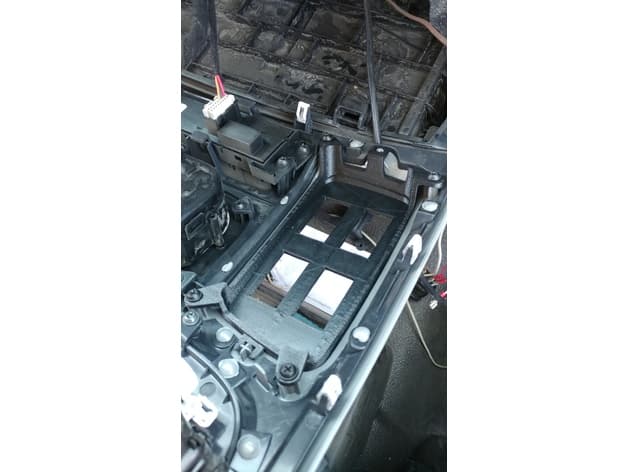

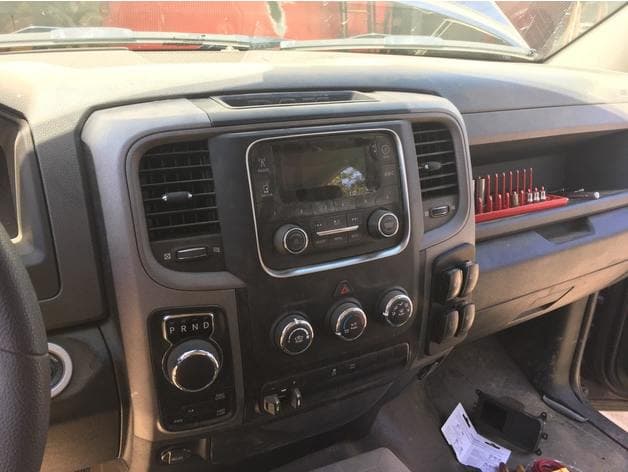

This is a switch mounting plate that fits 2013-2018 Ram 1500 (probably others). Goes in place of the AC outlet blank (the piece they install if you don't get the 110VAC outlet). Provided are a 2x2 automotive rocker switch mount, and one for 2 switches and a 42mm Gauge (42.5mm cutout). There is also a blank, so you can re-mix your own! I modeled this in Solidworks at the request of a friend. I suggest printing face down with supports for the screw tabs. 100% infill for strength. Use a higher temp filament like ABS, so it wont warp in the hot cab (PLA will warp). Jan 2020 Update: Added STEP file of the blank plate for remixing convenience (hope it works). Thanks for looking. If you make it, post a pic!
