renault clio mk3 tweeter vent

0 downloads88 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

Source link only

No hosted model files

Material start

PETG or ASA for durability in a car environment

Saved part guidance

Strength start

20-30% infill for a balance between weight and strength

Saved part guidance

Orientation / supports

verify in slicer

Exact totals

Slice for grams + time

Model geometry and final settings determine both

Vehicle exposure

High cabin heat — validate PETG or choose ASA/ABS

Download the model at its source, then confirm the format is supported by your slicer. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

Download at source

License & use

CC BY-NC-SA

Link-only

Attribution required

Files stay with the original publisher; this catalog entry does not grant hosting or resale rights. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

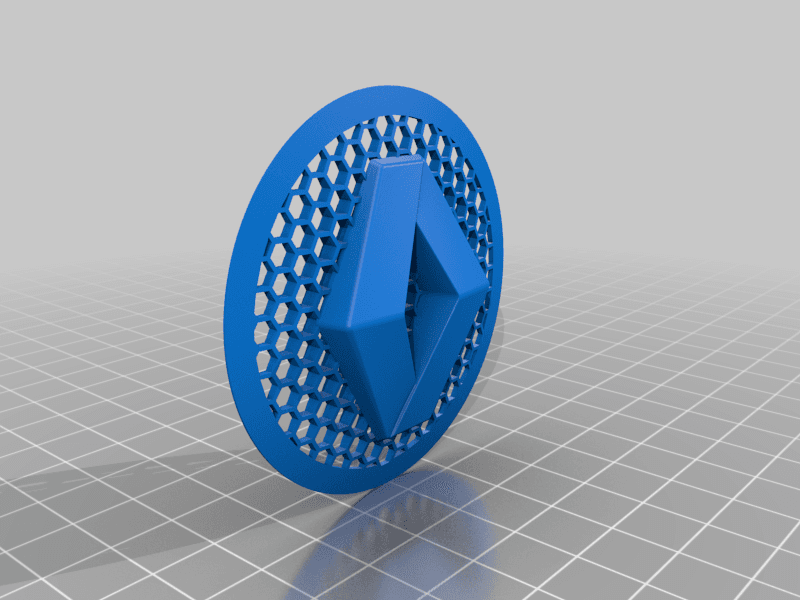

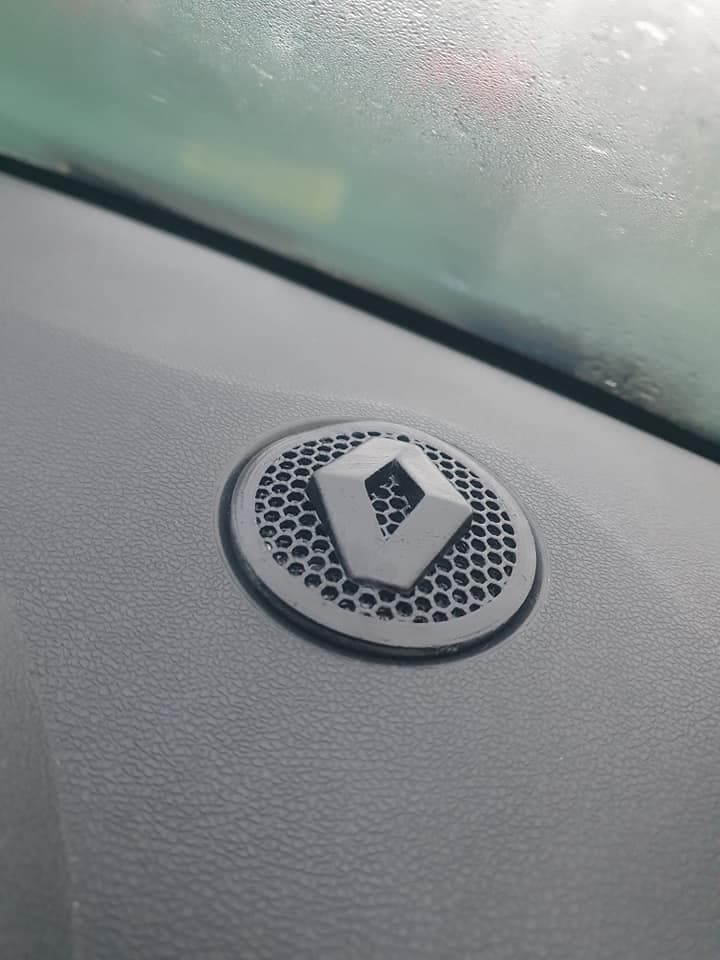

Renault clio mk3 tweeter cover. I've added 2 sizes 61mm dia and 63mm dia. The one in the picture is 61mm and flush with the old vent. 63mm would be slightly wider and could make for a better fit. 1.just pop out your tweeter cover 2.sand the top of the tweeter cover and bottom of the 3d printed part so you get a good adhesion 3.use CA glue to stick the printed part on top of the tweeter cover (you might want to use clamps or something heavy to make sure it sticks) 4.At this point it would be a good idea if you would like to paint the cover as it will hide the glue marks. 5,wait to dry (if neccessary) and pop back into place in your car (make sure to be careful as it can snap/crack the vent). (you can also do this with the tweeter vent inplace but may make it difficult in the future to remove the tweeter and vent. it may also not create a sufficient bond.) Doing this modification is also permanent as there is no way of removing the cover in the future if you glue it on. Redstonepanda takes no responsibility for any damages or loses that may happen when you do this modification. DO THIS MODIFICATION AT YOUR OWN RISK. =.
