Renault Kadjar led lighting for armrest and cup holder compartments

0 downloads71 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

6 hosted model files

STL

Material start

PETG or ASA for durability in a car environment

Saved part guidance

Strength start

20-30% infill for a balance between weight and strength

Saved part guidance

Orientation / supports

verify in slicer

Exact totals

Slice for grams + time

Model geometry and final settings determine both

Vehicle exposure

Cabin/interior use; avoid high-heat zones

Open the STL, 3MF, or OBJ model in your slicer before printing. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

License & use

CC BY

Commercial use allowed

Attribution required

Safety/IP review

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

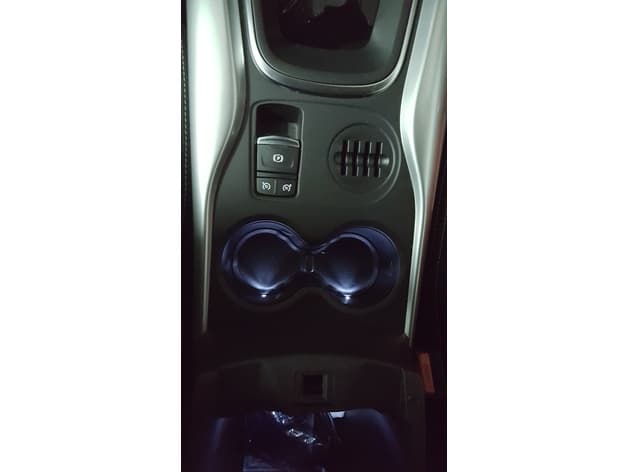

New: added support for standard 3mm round leds. Guides for help drilling the can holder and the armrest compartment of the Renaul Kadjar to insert LEDs for night lighting. The two guides are designed to make precision holes for inserting LEDs. They are good for common 3mm round leds. I suggest to use the guides to make the holes with a 1.5mm iron drill bit and then enlarge them with the 3mm drill bit. I used 3mm white cylindrical leds, I also made two supports to hold them in place, as in the picture. Two versions are available: a couple of supports for standard round 3mm LEDS and one for non common 3mm cylindric LEDs. A total of 4 LEDS are needed: two for the can compartment and two for the cockpit under the armrest. I connected them in pairs, and fed a 330 ohm resistor for each pair. The power supply was derived from the handbrake switch, connecting the positive to the pink wire with white line and the negative to the dark gray wire with white line (see pictures). The LEDs light up when the vehicle lights are on (position or dipped beam). Guide per forare il vano porta lattine e il vano bracciolo della Renaul Kadjar per inserire dei led per illuminazione notturna. Le due guide sono studiate per effettuare dei fori di precisione per inserire dei led. Vanno bene dei comuni led tondi da 3mm. Suggerisco di usare le guide per effettuare dei fori con punta da ferro di 1.5mm e successivamente di allargarli con la punta da 3mm. Io ho utilizzato dei led cilindrici bianchi da 3mm, ho realizzato anche due supporti per tenerli in posizione, come da foto. Ho realizzato una coppia di supporti per i led standard tondi da 3mm e una per i meno comuni led cilindrici da 3mm. Complessivamente sono necessari 4 led: due per il vano porta lattine e due per il pozzetto sotto il bracciolo. Li ho collegati in serie a coppia, e alimentati con una resistenza da 330 ohm per ogni coppia. L'alimentazione è stata ricavata dal pulsante del freno a mano, collegando il positivo al filo rosa con linea bianca e il negativo al filo grigio scuro con linea bianca, come da foto. I led si illuminano quando le luci del veicolo sono accese (posizione o anabbaglianti).
