Saab 9-3 / Opel insignia / Cadillac wiper arm bushing replacement

0 downloads111 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

3 hosted model files

STL

Material start

PETG or ASA for durability in varying temperatures

Saved part guidance

Strength start

80% infill for strength, with 4 perimeters

Saved part guidance

Orientation / supports

verify in slicer, but likely not needed if printed with 'slice' facing down

Exact totals

Slice for grams + time

Model geometry and final settings determine both

Vehicle exposure

Cabin/interior use; avoid high-heat zones

Open the STL, 3MF, or OBJ model in your slicer before printing. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

License & use

CC BY

Commercial use allowed

Attribution required

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

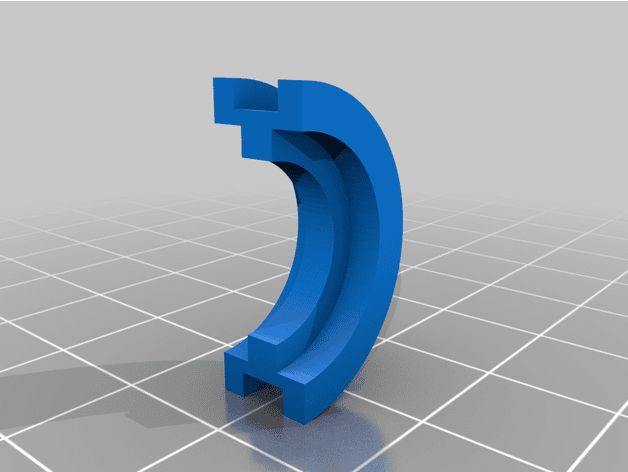

This is a replacement part for the wiper linkage/wiper arm bushing which typically fails in cold weather or due to age. Unfortunately you are not able to buy this part new, instead you are forced to buy the whole assembly which is complicated to replace and unnecessary for such a small part. And sometimes you can find a kit to replace these on ebay but they are expensive, so i made my own design. For this part you will need to print all the parts on the page and one zip tie that is around 3.5-4mm wide. Print the part without supports with the "slice" facing down on the build plate and a 2mm brim around it, 4 perimeters, 80% infill. Before assemblying make sure to clean all the old grease away then apply new suitable grease on both the plastic and the ball joint. Assemble according to photos above. If you found this useful, please donate what you think it is worth to my paypal.me. Help cover the time of design. Thanks, Enjoy!
