Shift Knob with Mazda Batman Logo M10x1.25

0 downloads67 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

Source link only

No hosted model files

Material start

PETG or ASA for durability and heat resistance

Saved part guidance

Strength start

20-30% infill for strength and moderate weight

Saved part guidance

Orientation / supports

verify in slicer

Exact totals

Slice for grams + time

Model geometry and final settings determine both

Vehicle exposure

Cabin/interior use; avoid high-heat zones

Download the model at its source, then confirm the format is supported by your slicer. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

Download at source

License & use

CC BY-NC-SA

Link-only

Attribution required

Safety/IP review

Files stay with the original publisher; this catalog entry does not grant hosting or resale rights. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

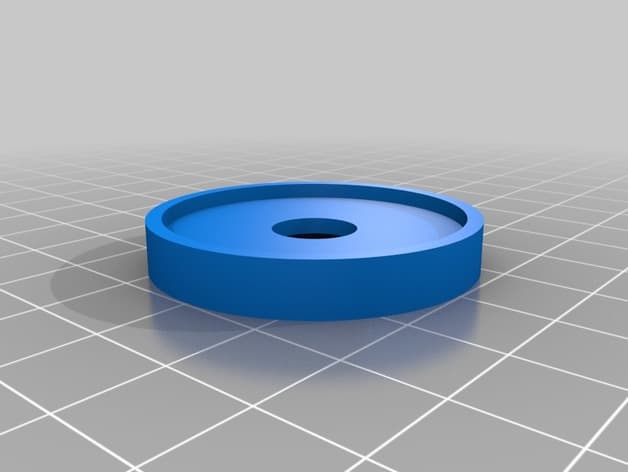

This is a shift knob I designed for my previous '06 Mazda 6, using the logo provided by nclontz2, here: https://www.thingiverse.com/thing:265193. I believe the shaft size was M10x1.25. The knob is designed to hold the M10 nut captive between the 'main' piece and the 'base', which are secured together with M3 hardware. The emblem press-fits tightly into the cavity on the top of the knob, and should end up even with the surface. The 'bottom seat' piece was added to keep the knob from twisting or abrading the boot when tightening it down.
