Slotted GMC Sierra/Chevrolet Silverado iPhone Mount (2014 to 2018 with center console) - image

Files (6)

Console_Mount_-_Console_Mount.step

STEP

133.5 KB

Cord_Plug_-_Cord_Plug.step

STEP

43.9 KB

Cord_Plug_-_Cord_Plug_1.stl

STL

116.5 KB

Phone_Mount_-_Phone_Mount.step

STEP

4.5 MB

Phone_Mount_-_Phone_Mount.stl

STL

277.6 KB

Truck_Phone_Mount_-_Truck_Phone_Mount_v2_v4_1.stl

STL

205.5 KB

Print guidance estimate

Estimated from part metadata

Print cost & setup estimate

Planning numbers for filament, cost, time, and setup. Treat them as estimates until you confirm the file in your slicer.

6 model files

Typical selected file

59g

Based on 25% main infill for the largest likely-needed model file

Material cost

$1.40

Filament only at roughly $24/kg PETG / ASA

Print time

1.7h–2.8h

Uses 70 mm/s, 0.2 mm layers; verify supports in slicer

STL file	Role	Source size	PETG / ASA 20%	PETG / ASA 25%	100% solid	Recommendation
Console_Mount_-_Console_Mount.step	Mount / bracket	133.5 KB STEP	13g $0.32	15g $0.35	32g $0.76	Print the main mount and phone holder in a rigid material like PETG or ASA for durability in a car environment.
Cord_Plug_-_Cord_Plug.step	Printable file	43.9 KB STEP	10g $0.24	11g $0.26	23g $0.56	Print the main mount and phone holder in a rigid material like PETG or ASA for durability in a car environment.
Cord_Plug_-_Cord_Plug_1.stl	Printable file	116.5 KB STL	13g $0.31	14g $0.33	31g $0.73	Print the main mount and phone holder in a rigid material like PETG or ASA for durability in a car environment.
Phone_Mount_-_Phone_Mount.step	Mount / bracket	4.5 MB STEP	54g $1.29	59g $1.40	128g $3.08	Print the main mount and phone holder in a rigid material like PETG or ASA for durability in a car environment.
Phone_Mount_-_Phone_Mount.stl	Mount / bracket	277.6 KB STL	17g $0.41	19g $0.44	41g $0.98	Print the main mount and phone holder in a rigid material like PETG or ASA for durability in a car environment.
Truck_Phone_Mount_-_Truck_Phone_Mount_v2_v4_1.stl	Mount / bracket	205.5 KB STL	15g $0.37	17g $0.40	37g $0.88	Print the main mount and phone holder in a rigid material like PETG or ASA for durability in a car environment.

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Phone Mounts

Slotted GMC Sierra/Chevrolet Silverado iPhone Mount (2014 to 2018 with center console)

0 downloads257 views0 likes

Shared by

Alfred

Verified

Description

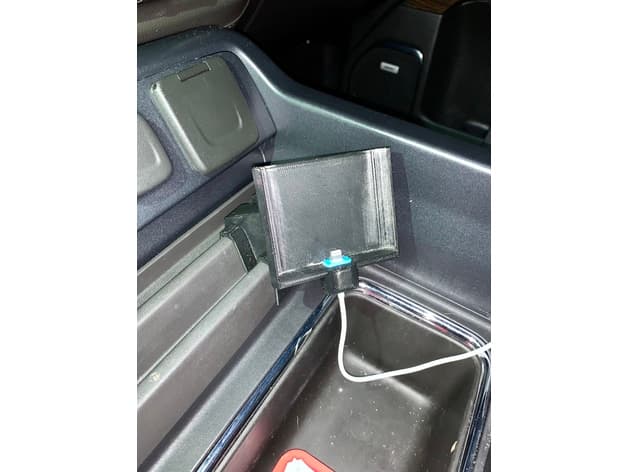

This is a remix of Penobscot's outstanding iPhone mount design. I added v-slots to the mount and v-posts to the back of the phone holder to allow for rigid assembly. With supports, I was able to print a great looking 2-piece assembly with no need for glue. I also added 1 mm to the width of the mount as it was every so slightly too tight for my Apple leather case. I printed in PETG, assembled, and drove a 44 hour road trip with my phone securely loaded in the base. I absolutely love Penobscot's original design, great work. In addition, I added a "cord plug", that can be printed in flexible filament, I used blue TPU. After inserting the cable through the hole in the bottom of the mount, wrap the flexible cord plug (assuming you're using a genuine Apple lightning cable) around the lightning connector and press-fit it back into the hole. That way you'll have a one-handed insert and removal of the phone, and the phone will "dock" in the mount. STEP files included if you chose to modify. If I were to re-do this design, I'd flip-flop the v-slot configuration so the slots are on the iPhone holder and the posts are on the mount base. This way it would be easier to print with fewer supports.
