Sunvisor clip for Audi A1 S1, A3 S3, A4 S4, B6 B7 B8, A5 S5, Q3 Q5
Print this part
Use the part context as a starting point, then confirm geometry-dependent values in your slicer.
Files
1 hosted model file
STL
Material start
ABS
Publisher-saved recommendation
Strength start
100% infill
Publisher-saved setting
Orientation / supports
Likely not needed
Exact totals
Slice for grams + time
Model geometry and final settings determine both
Vehicle exposure
UV/weather exposure — ASA is the starting point
Open the STL, 3MF, or OBJ model in your slicer before printing. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.
License & use
The uploader hosts this file, but its license does not grant commercial reuse or resale rights. License status does not verify vehicle fitment, OEM rights, design patents, or safety.
Shared by
AlfredDescription
See same stl version but new description and pictures : https://www.thingiverse.com/thing:4312419

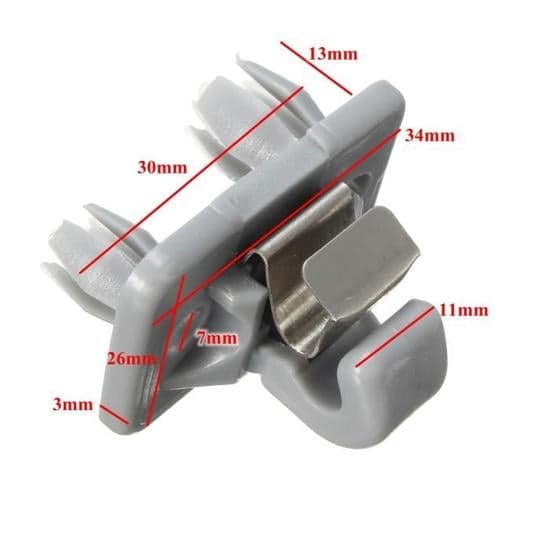

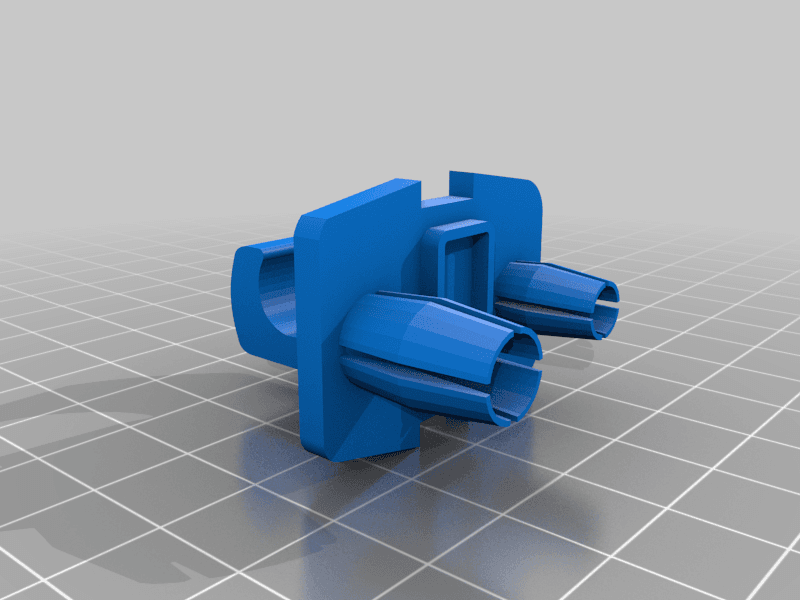

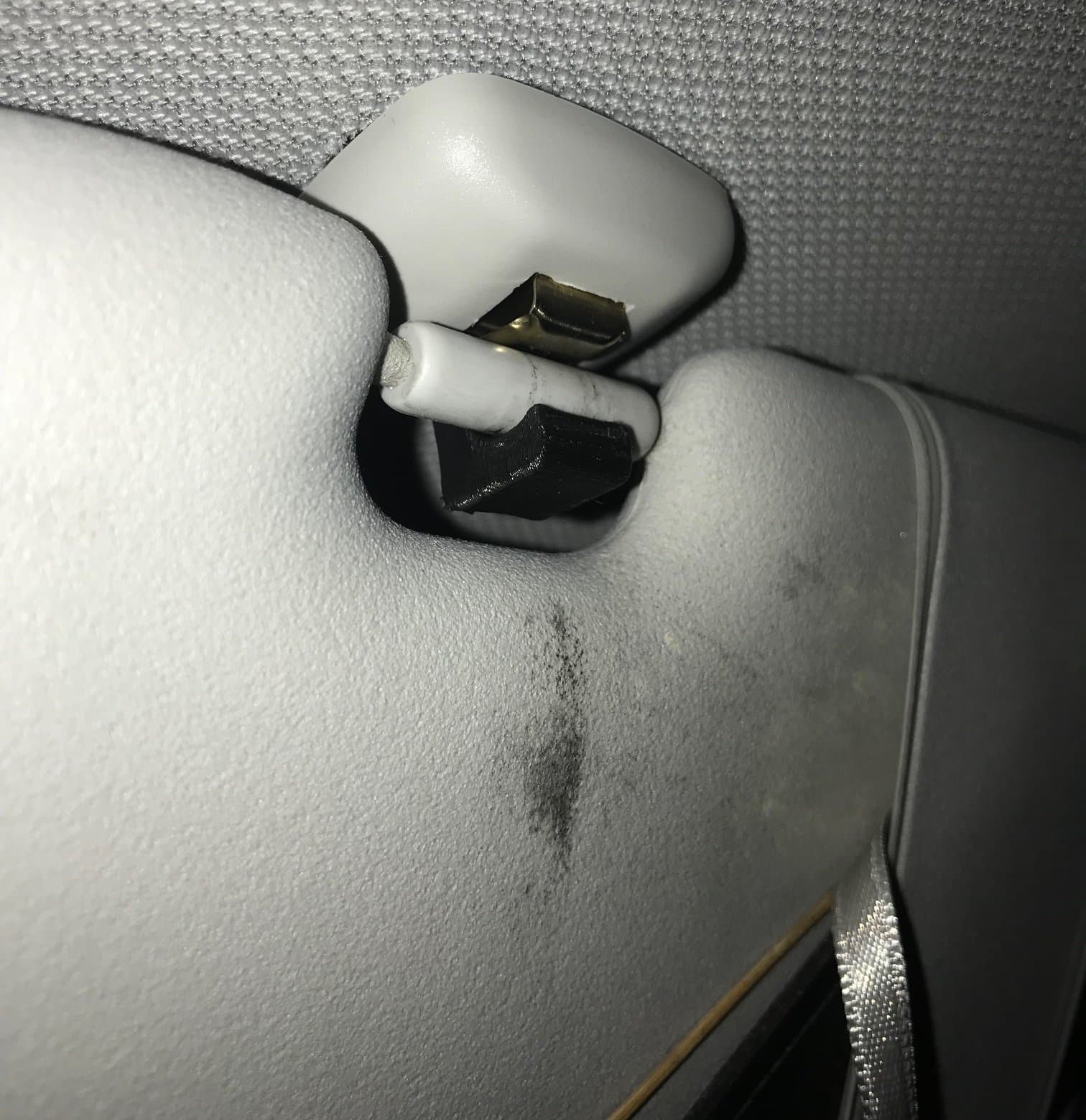

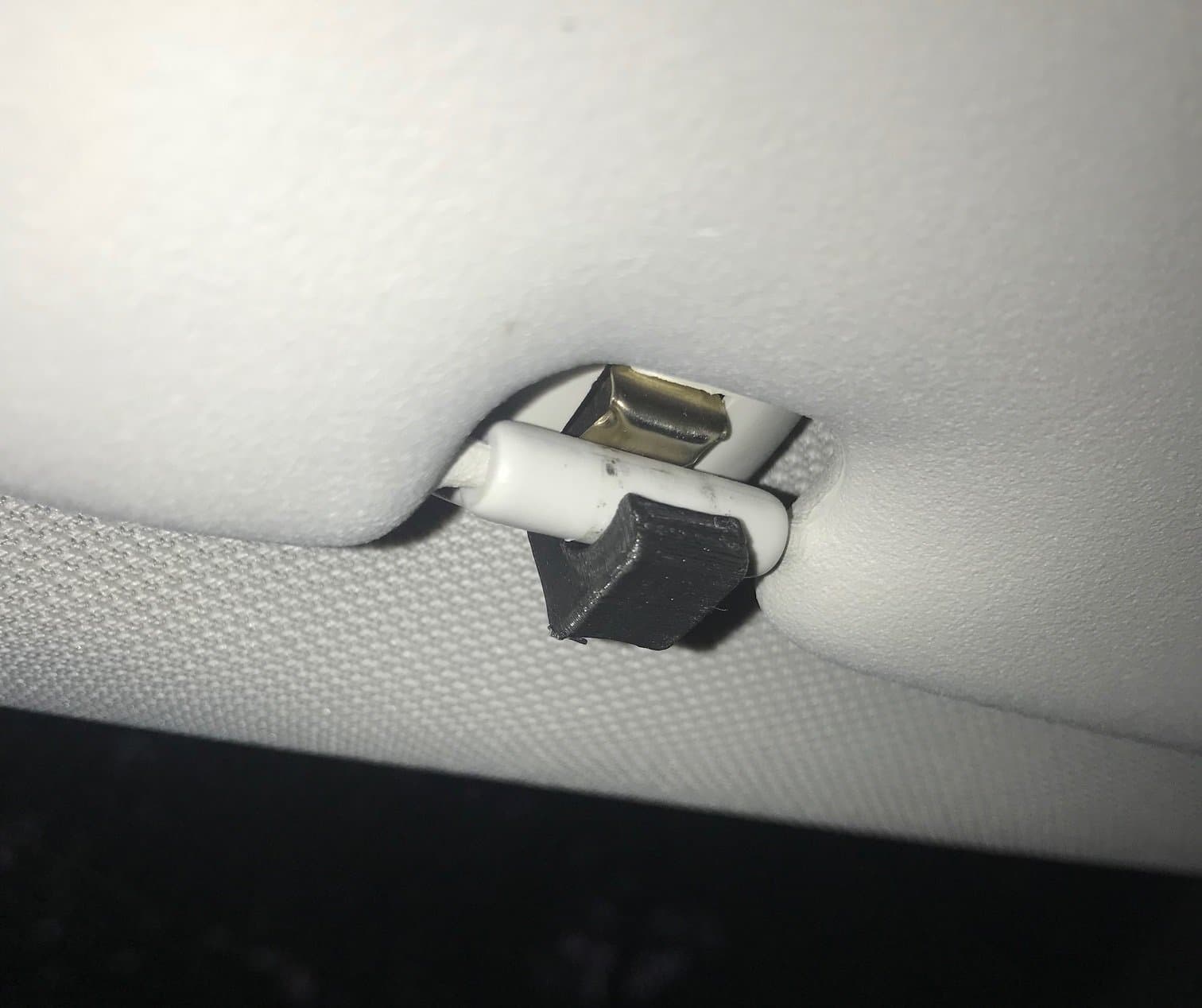

I designed a sunvisor clip for my Audi A3 as the clip was broken (see pictures). The printed part works exactly as the original one. You have to reuse the grey case and the small iron part.

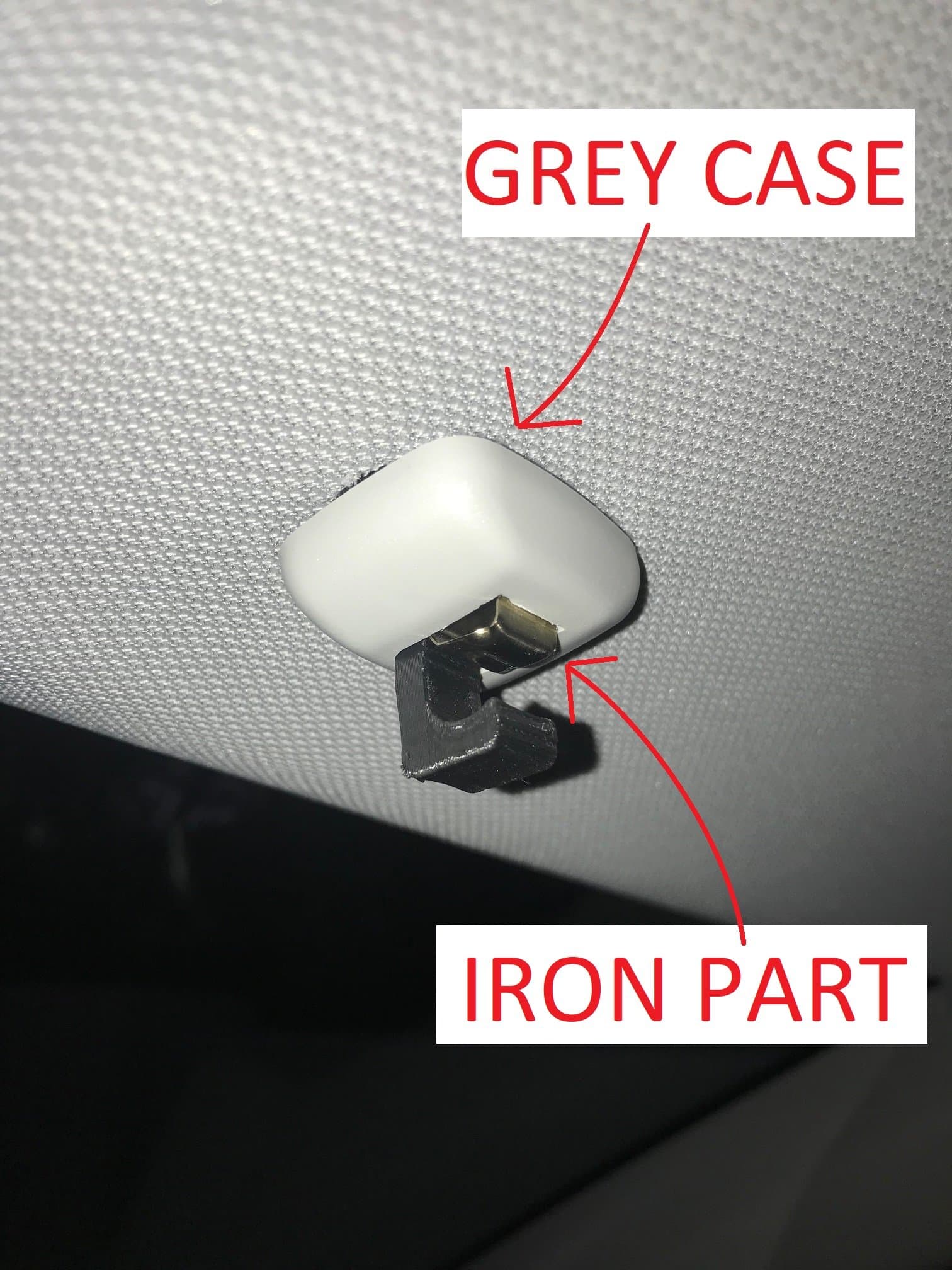

First of all, you have to remove the damage clip from your car (a slotted screwdriver did the job). Then, you have to take the grey case which is attatch to the broken clip and take the small iron part. After printed the new clip, add the iron part on it (as it was on the broken part) and put the printed part back in your car ceiling : it's a clip in design. Then, clip the grey case that you already have and that's it!
It seems that this clip is the same for all car models that I mentionned on the Title.
After checking, the clip should work with the following cars :
Audi A1 2011- Audi A3 8V / S3 / Sportback / Lim. 2013 - Audi A4 / Avant 2013 - 2015 Audi A4 Allroad 2010 - 2016 Audi A4 / S4 / Avant 2013 - 2015 Audi A5 / S5 Coupe / Sportback 2012 - Audi Q3 2012 - Audi Q5 2013 - Audi TT / TTS Coupe / Roadster 2011 - Audi RS3 Sportback 2016 - Audi RS4 / Avant 2013 - 2016 Audi RS5 Coupe 2010 - 2016 Audi RSQ3 2014 -
I also add the sketchup design in case the stl files doesn't match your needs.
Hope it will be usefull for you, and helps you saving time!
Bill of Materials
Hardware, filament, and supplies to check before printing this part.
ABS filament
Qty Enough for one print
Match diameter and temperature range to your printer before ordering.
Confirm dimensions, fitment, material limits, and safety before buying or installing anything in a vehicle.
Compatible Cars
Originally published on thingiverse.com by Papillote · License: CC BY-NC
