Tesla J1772 Charger Adapter Lock - Universal (S 3 X Y w/ flange!)
Print this part
Use the part context as a starting point, then confirm geometry-dependent values in your slicer.
Files
Source link only
No hosted model files
Material start
PETG or ASA
Saved part guidance
Strength start
20-30% infill with 2-3 walls for strength and durability
Saved part guidance
Orientation / supports
verify in slicer
Exact totals
Slice for grams + time
Model geometry and final settings determine both
Vehicle exposure
Cabin/interior use; avoid high-heat zones
Download the model at its source, then confirm the format is supported by your slicer. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.
License & use
Files stay with the original publisher; this catalog entry does not grant hosting or resale rights. License status does not verify vehicle fitment, OEM rights, design patents, or safety.
Shared by
3DPrintedCarPartDescription

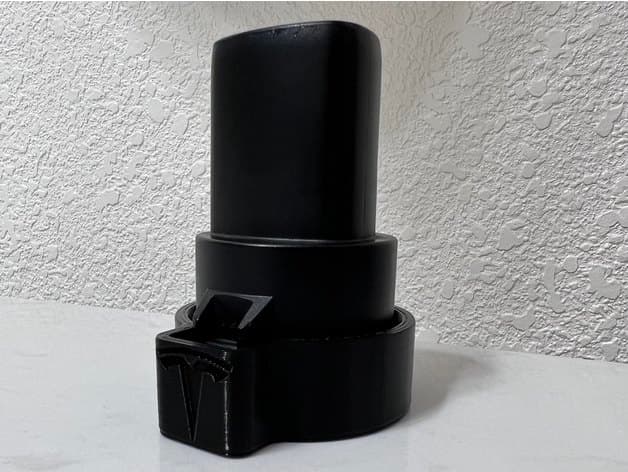

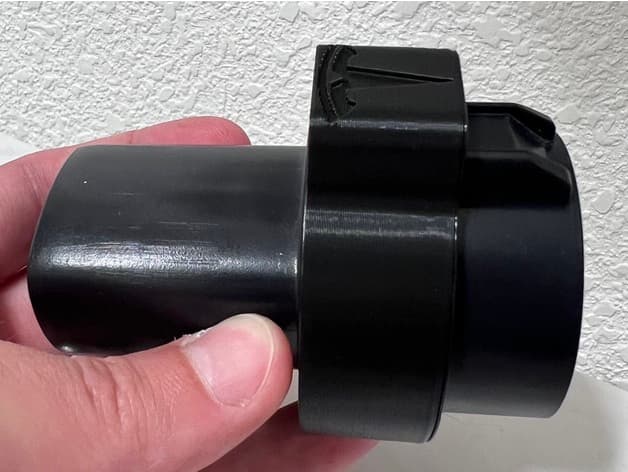

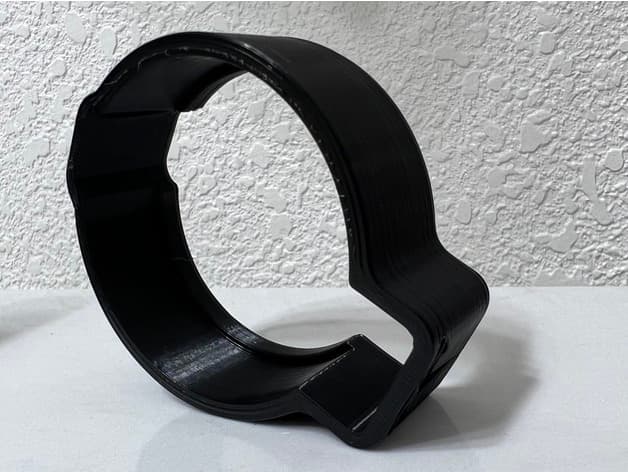

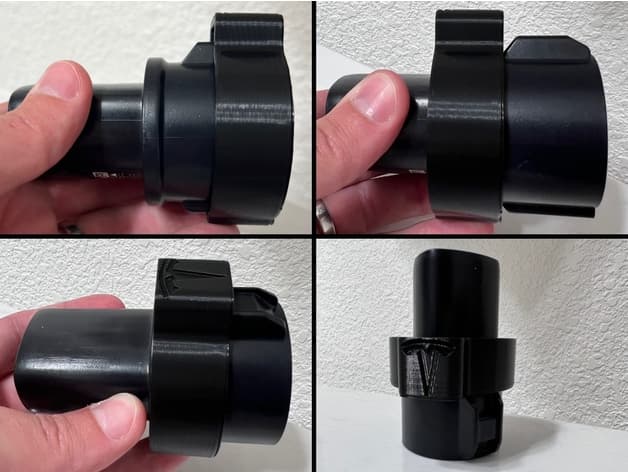

Works with Model S / X adapter with the flange! Haven't seen a design for the flange yet, and was requested to make one. I ended up with a universal design that works for both adapter styles. Usage is slightly different with the flange adapter, see the steps image. First slide on adapter all the way back, then plug in J1772 charger, then slide back into position and plug into car. As a bonus, you can rotate it and leave attached securely to the adapter (only works with flange). Also works with Model 3 / Y, though my earlier design uses less material and is just as effective. This is an original design and is not permitted for commercial sales without explicit permission. I may sell on Etsy soon.
Compatible Cars
Originally published on thingiverse.com by Eric Pheterson (epheterson) · License: CC BY-NC-SA
