Top bracket for Kia Sedona headlight assembly (projection type)

0 downloads199 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

Source link only

No hosted model files

Material start

PETG or ASA for better heat resistance

Saved part guidance

Strength start

20-30% infill for a balance between strength and weight

Saved part guidance

Orientation / supports

verify in slicer

Exact totals

Slice for grams + time

Model geometry and final settings determine both

Vehicle exposure

UV/weather exposure — ASA is the starting point

Download the model at its source, then confirm the format is supported by your slicer. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

Download at source

License & use

CC BY-NC

Link-only

Attribution required

Files stay with the original publisher; this catalog entry does not grant hosting or resale rights. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

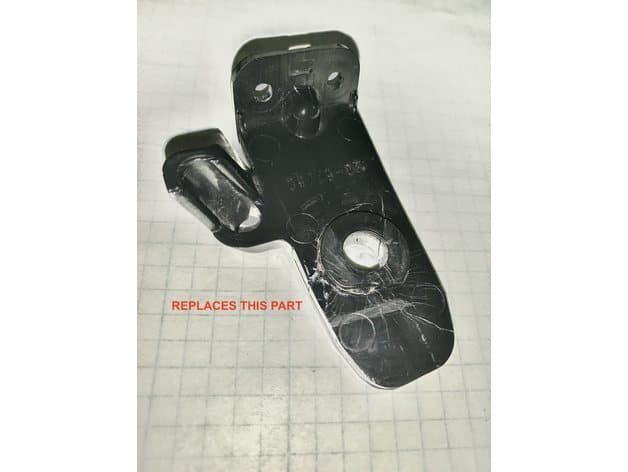

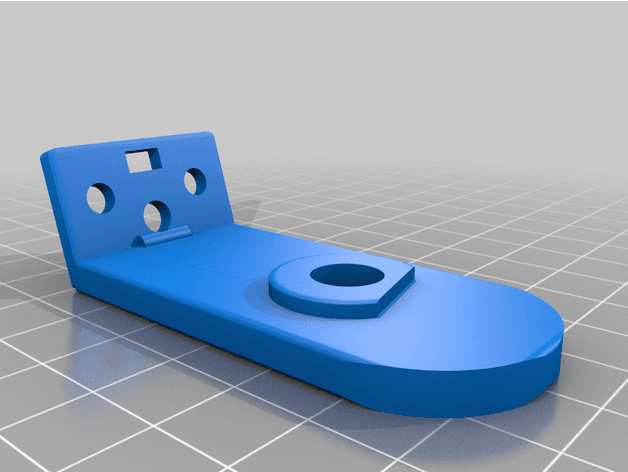

Top bracket that's originally made from a crappier material than the lower bracket and shatters if tightened too well. Fits projection type headlight assembly in a 2010 Kia Sedona minivan. Tested the passenger side only. Print sidewise in ABS so it doesn't warp in the summer heat. See photo. Original tinkercad design is here.

Updated Aug 3, 2026

Originally published on thingiverse.com by Zzzy Thingiverse (Zzzy) · License: CC BY-NC
