Touring Plate Bracket Fastener for BMW E39 - image

Files (4)

E39_Touring_Plate_Plinth_v1.stl

STL

278.9 KB

E39_TOURING_PLATE_PLINTH_V2_SLOT.stl

STL

831.3 KB

NUT_V2.stl

STL

475.1 KB

Thread_V2.stl

STL

975.3 KB

Print plan

Exact totals not supplied

Print setup plan

Useful setup guidance without pretending STL byte size can predict filament, cost, or print time.

4 model files

Material plan

PETG / ASA

Published material guidance; still check heat, UV, load, and printer compatibility.

Starting setup

99% infill

A planning starting point only; wall count, orientation, and geometry often matter more than infill.

Final totals

Confirm in slicer

Choose the needed variant, then slice it for grams, cost, and print time.

Saved setup guidance is used for material, infill, support, and per-file recommendation text; editable numbers are planning estimates only.

Reference shelf

Recommended filament for this print

Product references matched to the published material guidance. Confirm diameter, heat resistance, colour, and printer compatibility.

Referenced item	What to verify	Price & availability
PETG filamentAmazon · Affiliate link	Amazon product page for 1.75 mm PETG; confirm colour, spool size, print temperature, seller, and delivery region.	Check price at Amazon
ASA filamentAmazon · Affiliate link	Amazon product page for 1.75 mm ASA; use an enclosure and suitable ventilation, and confirm seller and regional availability.	Check price at Amazon

Affiliate disclosure: if you buy through an eligible link, 3DPrintedCarPart may earn a commission at no extra cost to you. As an Amazon Associate I earn from qualifying purchases. Confirm product specifications, compatibility, seller terms, and vehicle safety before ordering or using anything. Amazon may redirect you to a nearby supported store; otherwise the original Amazon.com page remains available.

Unsure which one fits? Read the automotive filament guide.

Mechanical/Functional

Touring Plate Bracket Fastener for BMW E39

0 downloads227 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

4 hosted model files

STL

Material start

PETG or ASA

Saved part guidance

Strength start

5 walls with high infill percentage (e.g., 99%) for strength and durability

Saved part guidance

Orientation / supports

verify in slicer

Exact totals

Slice for grams + time

Model geometry and final settings determine both

Vehicle exposure

Cabin/interior use; avoid high-heat zones

Open the STL, 3MF, or OBJ model in your slicer before printing. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

License & use

CC BY

Commercial use allowed

Attribution required

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

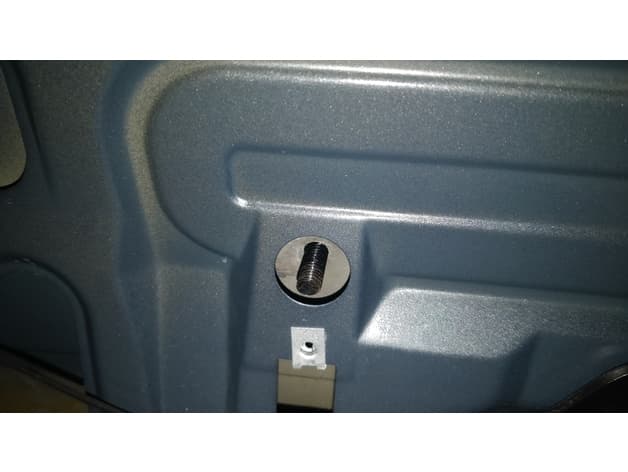

My E39 Touring was missing one of the clips to hold in the plate bracket (plinth). The previous owner had used silicone to hold the panel on. Unable to live with this I contacted the dealership - who were unable to find the part in their system. Doubting their competence I checked realoem myself and actually couldn't find a part number. So I turned to Fusion360 and whipped these up. I've never designed anything before so please bear with me. I have made two revisions of this thing. (bmw_plate_plinthe_v3) The first is a copy of the original - fits snug and locks nicely. - It may be a good idea to use a bit of RTV or Butyl Rubber around the hole to keep water out! (Nut.stl /Thread.stl) The second is a threaded option. Allowing you to fit an M8x1.25 nut on the back. This option was created for people who may have corrosion around the hole thus making it too big for the snap in option. Printed these on my CR-10S w/ 99% concentric infill 5 walls and 0.12 layer height @ 35mm/s Hopefully they can be of use to someone else too. Cheers. Apparently fits these models too! BMW E30 318i M10 1.8L BMW E30 318i M42 1.8L BMW E30 318is M42 1.8L BMW E30 325i M20 2.5L BMW E30 325is M20 2.5L BMW E31 840Ci M60 4.0L BMW E31 840Ci M62 4.4L BMW E31 850Ci M70 5.0L BMW E31 850Ci M73 5.4L BMW E31 850Ci All BMW E31 850CSi S70 5.6L BMW E31 850i All BMW E34 M5 S38 3.5L BMW E38 740i M60 4.0L BMW E38 740i M62 4.4L BMW E38 740iL M60 4.0L BMW E38 740iL M62 4.4L BMW E38 750iL M73 5.4L BMW E39 525i M54 2.5L BMW E39 528i M52 2.8L BMW E39 530i M54 3.0L BMW E39 540i M62 4.4L
