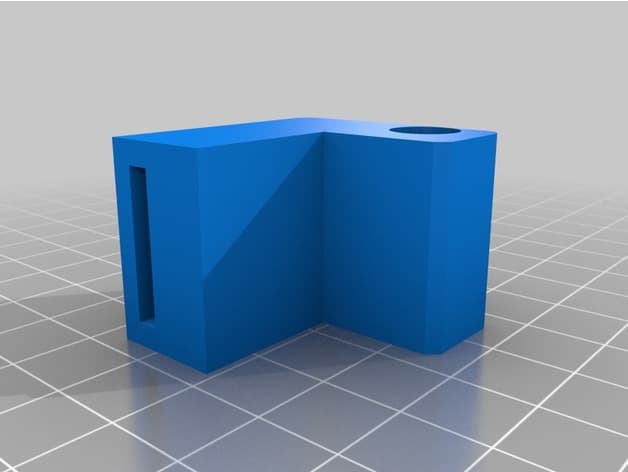

Toyota Sequoia Brake Vacuum Mount preview

Files (1)

Toyota_Sequoia_Brake_Vacuum_Mount_Final.stl
STL
27.3 KB
Mechanical/Functional

Toyota Sequoia Brake Vacuum Mount

0 downloads70 views0 quality score
0

License & use

CC BY
Commercial use allowed
Attribution required
Safety/IP review

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

3DPrintedCarPart logo
Verified

Description

Upon inspecting my '06 Toyota Sequoia's engine bay I noticed a hose came loose from its bracket. The bracket was originally spot welded to a metal tube that connected the intake to the vacuum assist for the brakes. It probably would have been fine bouncing around for a while but it was engineered secured for a reason. My first thought was to get on the web and look for a replacement. Then I thought, maybe this would be a great job for some left over Ninjaflex. I fired up TinkerCad and did the final touches in Sketchup to produce a quick and dirty bracket adapter. It may look a little crude but it sure does the job! It locks nicely in place and the hose has a nice flexible mount point. NOTE: You MUST use a flexible filament as this bracket adapter is meant to stretch slightly over the existing bracket post and lock in place as well as stretch for the the hose insertion. Also when slicing the gap will appear for the hose insertion (tested with Cura and Slic3r). To relieve tension of the hose simply bend the bracket to the rear slightly. P.S. The original part to replace it was around $30: http://parts.lakelandtoyota.com/p/TOYOTA__SEQUOIA/TUBE--HOSE-TO-HOSE--NO1/3976783/447630C011.html Part# 44763A.

Compatible Vehicles

Published Jun 28, 2026Updated Aug 12, 2026

Originally published on thingiverse.com by Jason Charles (blazer34i) · License: CC BY
