Vanagon / VW T3 Odometer repair kit

1 downloads120 views0 quality score

Print this part

Use the part context as a starting point, then confirm geometry-dependent values in your slicer.

Files

3 hosted model files

STL

Material start

ABS or ASA for heat resistance

Saved part guidance

Strength start

20-30% infill for strength and minimal weight

Saved part guidance

Orientation / supports

verify in slicer

Exact totals

Slice for grams + time

Model geometry and final settings determine both

Vehicle exposure

Windshield/dash heat — validate after a parked-car soak

Open the STL, 3MF, or OBJ model in your slicer before printing. Exact grams, time, and final support placement come from the actual slice. Test-fit and heat-check the part before installing it in a vehicle.

License & use

CC BY

Commercial use allowed

Attribution required

The file license permits commercial reuse, subject to any applicable attribution or share-alike terms. License status does not verify vehicle fitment, OEM rights, design patents, or safety.

Shared by

3DPrintedCarPart

Verified

Description

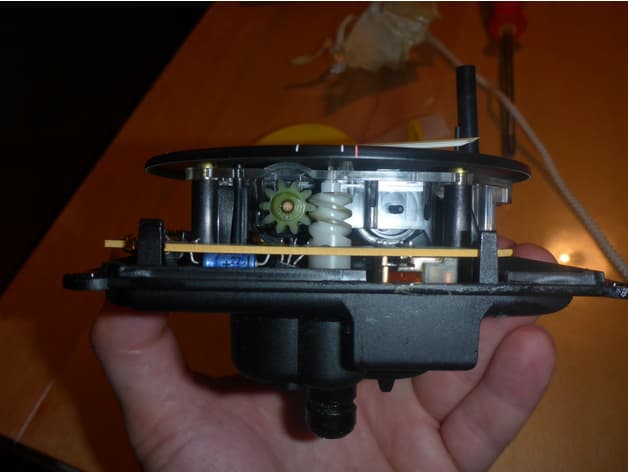

It's nice to have a Volkswagen Vanagon. But as they are gaining experiance (aka become old), there occure a few technical problems here and there. Very common is that the odometer stops counting the kilometers (yes, metric!). Usually, the axle with the green gear (2nd photo) springs out of it's position. No big deal, easy to fix. Infact, there are a few different fixing approaches circulating the web, but I did not like that they all require you to use brute force and/or disassemble the entire unit. So, I designed this bracket to hold the axle in place once it is fiddled back to its original position. Easy. Apart from the printed parts you'll need 2 M3x10 srews and 2 M3 Nuts. And you better use ABS or better. It tends to get pretty warm around the dashbord on a sunny summer day...
